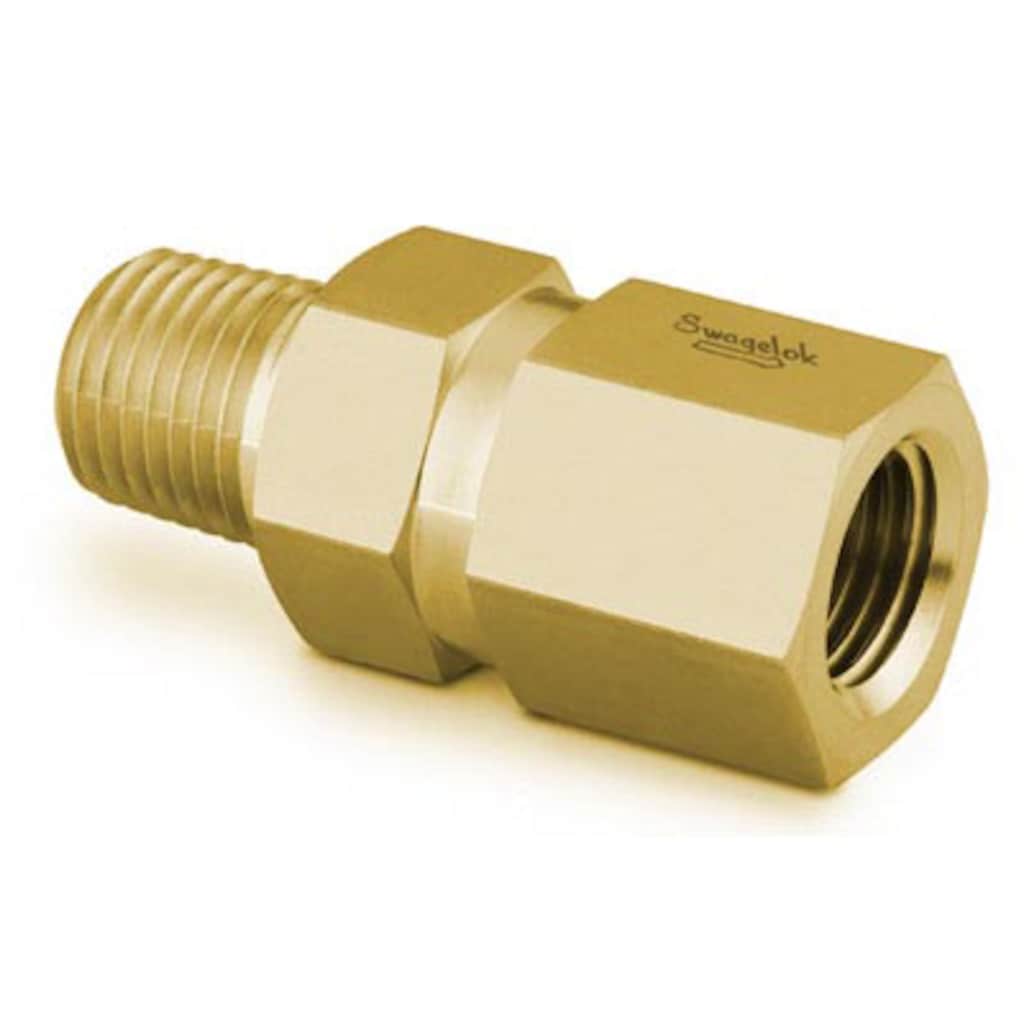

真ちゅう製一体型ポペット式逆止弁、圧力固定型、1/4 インチ・サイズ NPTおねじ x 1/4 インチ・サイズ NPTめねじ、1 psig（0.07 bar）
Art.-Nr.: B-4CP5-1
|
||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Technische Daten
Fixed PressureControl back flow in general-service and high-purity applications with Swagelok check valves available in a range of adjustable and fixed cracking pressures. Einloggen oder anmelden, um den Preis anzuzeigen ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Warnung: No mezcle ni intercambie productos o componentes Swagelok no regulados por normativas de diseño industrial, incluyendo las conexiones finales de los racores Swagelok, con los de otros fabricantes.
|
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warnung: No mezcle ni intercambie productos o componentes Swagelok no regulados por normativas de diseño industrial, incluyendo las conexiones finales de los racores Swagelok, con los de otros fabricantes.
真ちゅう製一体型ポペット式逆止弁、圧力固定型、1/4 インチ・サイズ NPTおねじ x 1/4 インチ・サイズ NPTめねじ、1 psig（0.07 bar）
Art.-Nr.: B-4CP5-1
Katalog ansehen
Einloggen oder anmelden, um den Preis anzuzeigen
Kataloge
Fixed Pressure
Control back flow in general-service and high-purity applications with Swagelok check valves available in a range of adjustable and fixed cracking pressures.
Check Valves, C, CA, CH, CP, and CPA Series
Features: Working pressures up to 6000 psig (413 bar); Adjustable and fixed cracking pressures Variety of end connections; 316 stainless steel and brass materials
Thread and End Connection Identification Guide
Features: Step-by-step identification procedure for threads and end connections.
표준 세정 및 포장 SC-10 사양 SCS-00010
Swagelok® Specification SC-10 defines the cleaning, lubrication, assembly, and packaging requirements for standard Swagelok products and describes practices used to meet these requirements.
Valve Sizing Technical Bulletin
Valve sizing often is described by the nominal size of the end connections, but a more important measure is the flow that the valve can provide. And determining flow through a valve can be simple.
Swagelok Tube Fittings Over 1 inch or 25 mm
Procedure for installing Swagelok tube fittings in sizes over 1 inch or 25 mm.
Technische Daten
B-4CP5-1 — 真ちゅう製一体型ポペット式逆止弁、圧力固定型、1/4 インチ・サイズ NPTおねじ x 1/4 インチ・サイズ NPTめねじ、1 psig（0.07 bar）
| Attribute | Wert |
|---|---|
| Body Material | Latón |
| Cleaning Process | Limpieza y Embalaje estándar (SC-10) |
| Connection 1 Size | 1/4 pulg. |
| Connection 1 Type | NPT macho |
| Connection 2 Size | 1/4 pulg. |
| Connection 2 Type | NPT hembra |
| Cracking Pressure | 0,07 bar, 1 psi (0,007 MPa) |
| CV Maximum | 0.35 |
| O-Ring Material | Buna N |
| Room Temperature Pressure Rating | 206 BAR @ 37°C / 3000 PSIG @ 100°F |
| Surface Finish | Estándar |
| Testing | Sin prueba opcional |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27300601 |
| eClass (6.1) | 27300601 |
| eClass (10.1) | 27300601 |
| UNSPSC (4.03) | 40141622 |
| UNSPSC (10.0) | 40141641 |
| UNSPSC (11.0501) | 40141641 |
| UNSPSC (13.0601) | 40141641 |
| UNSPSC (15.1) | 40141641 |
| UNSPSC (17.1001) | 40183101 |
Ressourcen
Zeichnungen
2D
Für dieses Produkt sind zweidimensionale Darstellungen verfügbar. Die CAD-Datei herunterladen.
3D
Für dieses Produkt sind dreidimensionale Darstellungen verfügbar. Die CAD-Datei herunterladen.
Verkaufszeichnungen
Verkaufszeichnungen sind für dieses Produkt erhältlich. Die Dateien herunterladen.
