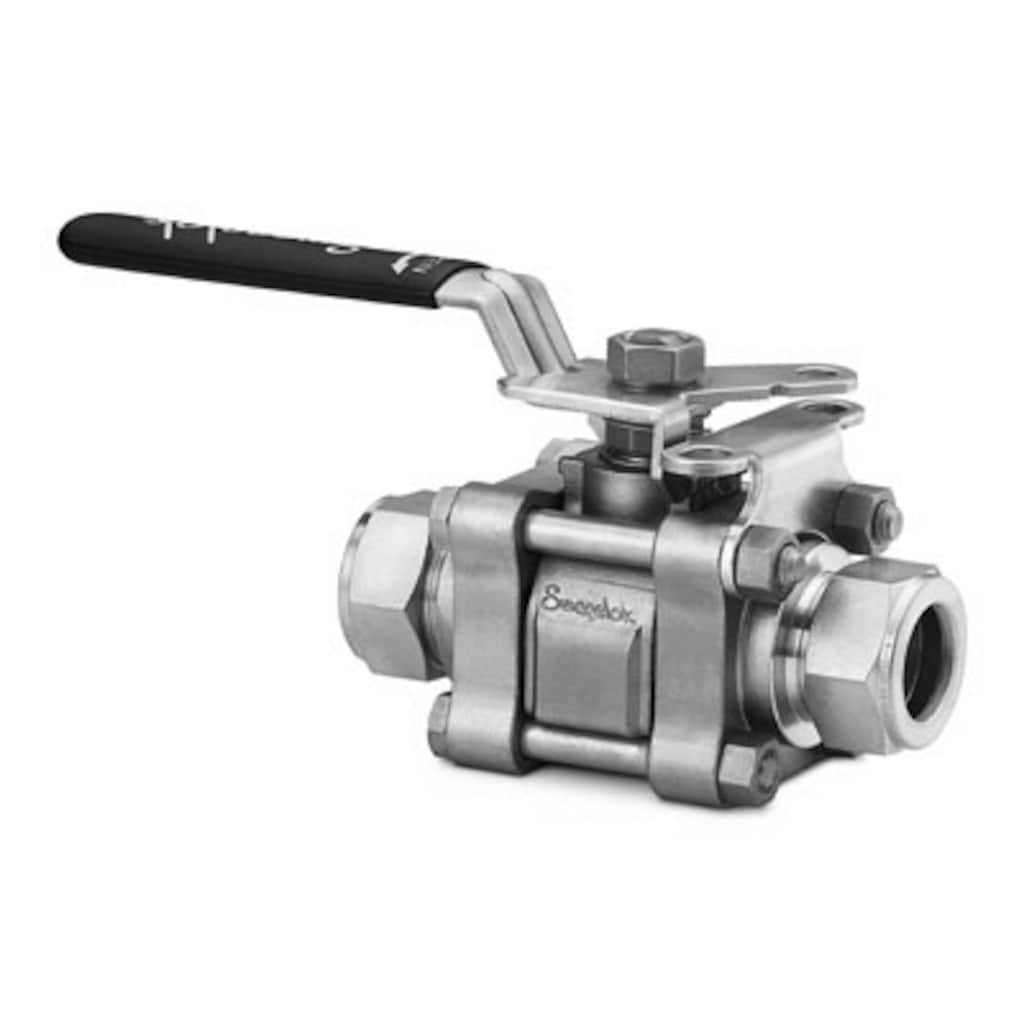

ステンレス鋼製 3ピース型 60シリーズ ボール・バルブ、強化PTFE製 シート、3/8 インチ・サイズ Swagelokチューブ継手、ロッキング・レバー付き だ円形ハンドル2-way 60 Series ball valve, 3/8 in. Swagelok tube fittings, 316 SS body, reinforced PTFE seats, locking oval handle, 2200 psig rating, swing-out design.
Réf. pièce : SS-62TS6-JLK
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Spécifications
Configuration droite, 2 voiesAvec leur siège unique comprimé par des rondelles coniques élastiques, leur garniture de tige en deux pièces à compression permanente et leur conception à basculement, les vannes à boisseau sphérique de la série 60 sont conçues pour offrir une fiabilité maximale avec un minimum d'entretien. Ouvrir une session ou s’inscrire pour afficher des prix ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Attention: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers. |
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Attention: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
ステンレス鋼製 3ピース型 60シリーズ ボール・バルブ、強化PTFE製 シート、3/8 インチ・サイズ Swagelokチューブ継手、ロッキング・レバー付き だ円形ハンドル
2-way 60 Series ball valve, 3/8 in. Swagelok tube fittings, 316 SS body, reinforced PTFE seats, locking oval handle, 2200 psig rating, swing-out design.
Ouvrir une session ou s’inscrire pour afficher des prix
Catalogues
Configuration droite, 2 voies
Avec leur siège unique comprimé par des rondelles coniques élastiques, leur garniture de tige en deux pièces à compression permanente et leur conception à basculement, les vannes à boisseau sphérique de la série 60 sont conçues pour offrir une fiabilité maximale avec un minimum d'entretien.
Размеры от 6 до 25 мм и от 1/8 до 2 дюймов; Нержавеющая и углеродистая сталь, латунь и специальные сплавы; Двухходовые и переключающие (3-ходовые) краны; Компенсирующая конструкция седла; Двухкомпонентная набивка штока с динамической нагрузкой
Комплекты рукояток и рукоятки с заводской установкой: Рычажные и овальные рукоятки; Скобы под замок для рычажных и овальных рукояток; Овальные рукоятки с предохранительной защелкой
Features: Swagelok® electric actuators can be used to control the position of many Swagelok ball valves; alternating- and direct-current models are available. An electrical signal is used to change valve position from remote locations. Integral limit switches provide an output signal of the valve position, even between positions.
Features: 40G, 40, 60, 83, H83, SK, and FKB Series Valves, AFS Ball Valves; Calculate valve operating torque; Choose actuators and related components; Select mounting bracket kits
Features: Rack and pinion pneumatic actuators, solenoid valves, and limit switches; ISO 5211-compliant pneumatic actuators, solenoid valves, limit switches, and position sensors; Complete actuated assemblies and kits for field assembly available
Features: Operating temperatures up to 400°F (204°C); Working pressures up to 2200 psig (151 bar); Stainless steel or carbon steel construction
За конструкцию и работу кислородных систем несут ответственность конечные потребители, которые должны получать квалифицированную профессиональную поддержку для обеспечения безопасного использования кислорода.
В настоящем документе изложены инструкции, используемые компанией Swagelok® и ее поставщиками, чтобы обеспечить соответствие требованиям к чистоте продуктов, предусмотренным стандартом ASTM G93, уровень C. Его сфера применения ограничена компонентами системы, соприкасающимися со средой. Настоящий документ необходимо использовать в сочетании с каталогами продуктов, техническими бюллетенями и отчетами.
В настоящем документе изложены инструкции, используемые компанией Swagelok для производства продуктов из нержавеющей стали, предназначенных для фотоэлектрических систем.
для фитингов размером 1 дюйм (25 мм) и меньших
Данный сменный комплект штока должен использоваться с соответствующим ремонтным комплектом уплотнителей для серии 60.
Данный сменный комплект шарика должен использоваться с соответствующим ремонтным комплектом уплотнителей для клапанов серии 60
Инструкции по техобслуживанию шаровых кранов серий 60 и 60X с 4 болтами
60 Series Flange Seal Installation
Список инструментов Шестигранный ключ: 1/8 дюйма, 9/64 дюйма, 5/32 дюйма, 3/16 дюйма, 5/16 дюйма Удлинитель с открытым зевом: 5/16 дюйма, 3/8 дюйма, 7/16 дюйма, 9/16 дюйма, 5/8 дюйма, 3/4 дюйма, 11/16 дюйма, 15/16 дюйма Динамометрический гаечный ключ с крутящим моментом 79,1 Н·м (700 фунт-дюймов)
Kit contents: Standard Fastener (bolt or stud 3), Instruction sheet, Black Fastener (bolt or stud), Stem nuts (2), Body nuts (8), Lubricants (1), Material Safety Data Sheets (1)
НСТРУКЦИИ ПО ТЕХНИЧЕСКОМУ ОБСЛУЖИВАНИЮ ВСТАВОК ДЛЯ УМЕНЬШЕНИЯ МЕРТВОЙ ЗОНЫ СЕРИЙ «60» И «60X»
Latch lock handle assembly to 4-bolt and 8-bolt 60 series ball valves
Warning: Before servicing any installed valve, you must depressurize the system cycle valve Mounting Namur Style Bracket to 2-way 60 series ball valve.
При помощи накидного гаечного ключа удалите гайку штока,снимите пружины штока, ограничительную пластинку и рычажную рукоятку.
To ensure proper valve function, valve must be installed with flow in the direction indicated by the arrow on the valve body.
Состав комплекта кронштейна для крепления; Необходимые инструменты; Состав комплекта привода; Подготовка привода; Подготовка крана; Инструкции по монтажу.
Caution: Pneumatic actuator operation is sensitive to valve packing nut adjustment.
Electric Actuator Installation
Spécifications
SS-62TS6-JLK — ステンレス鋼製 3ピース型 60シリーズ ボール・バルブ、強化PTFE製 シート、3/8 インチ・サイズ Swagelokチューブ継手、ロッキング・レバー付き だ円形ハンドル
Attribut | Valeur |
---|---|
Matériau de boisseau sphérique/tige | Stainless Steel |
Matériau du corps | 316 Stainless Steel |
Procédé de nettoyage | Standard Cleaning and Packaging (SC-10) |
Dimension du raccordement 1 | 3/8 in. |
Type du raccordement 1 | Swagelok® Tube Fitting |
Dimension du raccordement 2 | 3/8 in. |
Type du raccordement 2 | Swagelok® Tube Fitting |
Cv maximal | 3.8 |
Matériau des fixations | 316 Stainless Steel |
Matériau des joints de bride | Fluorocarbon FKM |
Type d’écoulement | 2-Way, Shutoff, Straight |
Couleur de poignée | Black |
Type de poignée | Locking Oval |
Certification faibles émissions | Yes |
Pression nominale à température ambiante | 2200 PSIG @ 100°F /151 BAR @ 37°C |
Matériau du siège | Reinforced PTFE |
Matériau de ressort de siège | 316 Stainless Steel |
Catégorie d'usage | General |
Matériau de palier de tige | Alloy X750 |
Tests | Testing according to WS-22 |
eClass (4.1) | 37010401 |
eClass (5.1.4) | 37010401 |
eClass (6.0) | 37010401 |
eClass (6.1) | 37010401 |
eClass (10.1) | 37010401 |
UNSPSC (4.03) | 40141607 |
UNSPSC (10.0) | 40141607 |
UNSPSC (11.0501) | 40141607 |
UNSPSC (13.0601) | 40141607 |
UNSPSC (15.1) | 40141607 |
UNSPSC (17.1001) | 40141600 |
