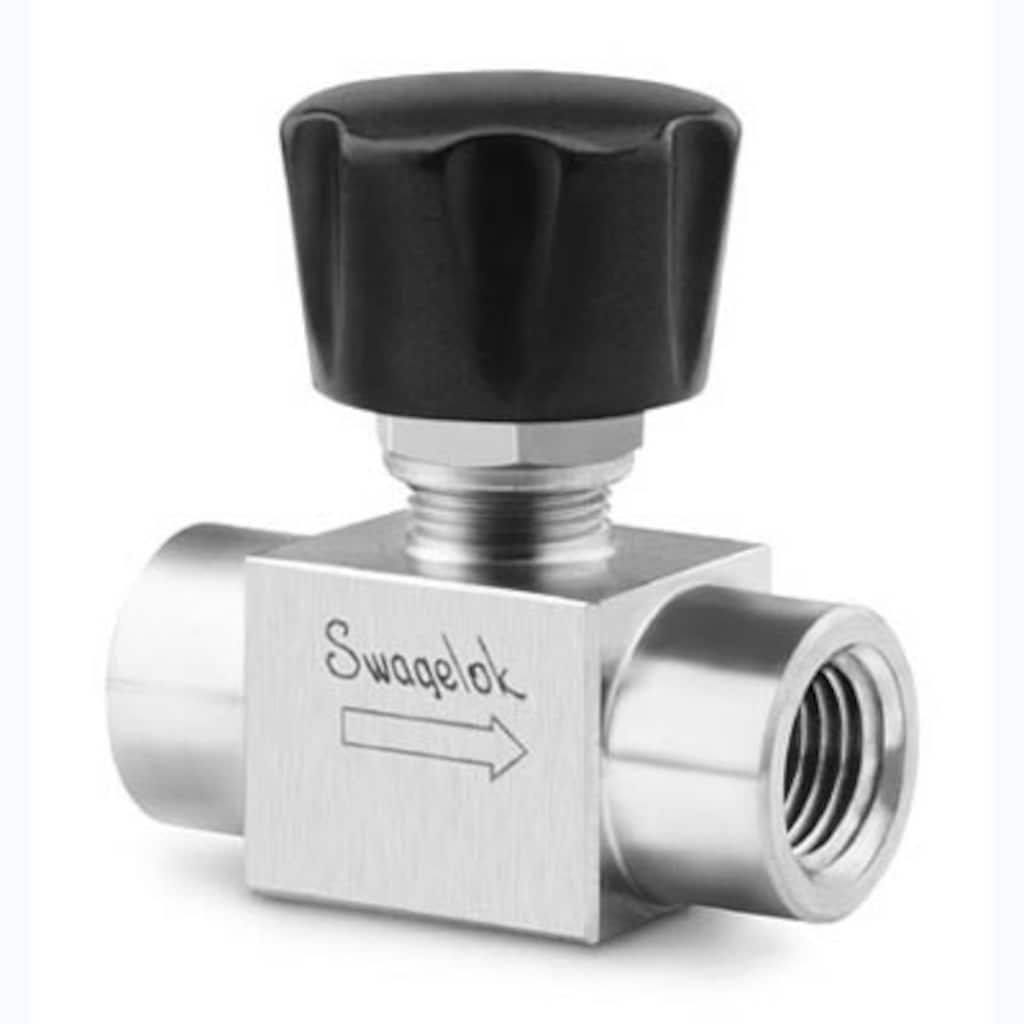

Stainless Steel Integral Bonnet Needle Valve, 0.09 Cv, 1/4 in. FNPT, PCTFE Stem Tip

Réf. pièce : SS-20KF4

Spécifications

Attribut Valeur
Body Material 316 Stainless Steel
Procédé de nettoyage Standard Cleaning and Packaging (SC-10)
Dimension du raccordement 1 1/4 in.
Type du raccordement 1 Female NPT
Dimension du raccordement 2 1/4 in.
Type du raccordement 2 Female NPT
Cv maximal 0.09
Type d’écoulement Straight (2-way)
Type de poignée Aluminum Knob
Certification faibles émissions Yes
Température maximale, °F (°C) 600 (315)
Pressions et températures nominales max. 600°F @ 3130 PSIG /315°C @ 215 BAR
Température minimale, °F (°C) -65 (-53)
Orifice 0.080 in
Pression nominale à température ambiante 6000 PSIG @ 100°F /413 BAR @ 37°C
Matériau de l'embout de tige PCTFE
Type de tige Soft-Seat PCTFE
eClass (4.1) 37010201
eClass (5.1.4) 37010201
eClass (6.0) 37010203
eClass (6.1) 37010203
eClass (10.1) 37010203
UNSPSC (4.03) 40141602
UNSPSC (10.0) 40141602
UNSPSC (11.0501) 40141602
UNSPSC (13.0601) 40141602
UNSPSC (15.1) 40141602
UNSPSC (17.1001) 40183102
Straight Pattern, Soft Seat Stem
