Клапан сверхвысокой степени чистоты из стали 316L VIM-VAR с мембранным уплотнением, фитинг с торцевым уплотнением VCR с наруж. резьбой 1/4 дюйма, очистка в соответствии с инструкцией SC-01, фиксирующая рукоятка синего цвета |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Spécifications
Configuration droite, actionnement manuelRépondez aux exigences de haute ou très haute pureté avec les vannes à membrane Swagelok, proposées avec un large choix de dimensions, de matériaux et de configurations, pour les applications les plus diverses. Ouvrir une session ou s’inscrire pour afficher des prix ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Attention: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Attention: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
Клапан сверхвысокой степени чистоты из стали 316L VIM-VAR с мембранным уплотнением, фитинг с торцевым уплотнением VCR с наруж. резьбой 1/4 дюйма, очистка в соответствии с инструкцией SC-01, фиксирующая рукоятка синего цвета
Ouvrir une session ou s’inscrire pour afficher des prix
Catalogues
Configuration droite, actionnement manuel
Répondez aux exigences de haute ou très haute pureté avec les vannes à membrane Swagelok, proposées avec un large choix de dimensions, de matériaux et de configurations, pour les applications les plus diverses.
DP 시리즈 초고순도 사양에 적합 316L VIM-VAR 스텐레스강 몸체 저압용 및 고압용 모델 VCR®, 튜브 맞대기 용점 및 블럭 조립식 연결구 수동식 또는 공기작동식 개폐기
Features: Step-by-step identification procedure for threads and end connections.
This document specifies guidelines used by Swagelok Company for producing stainless steel products intended for photovoltaic (PV) applications.
Components: 1.5 in. (38.1 mm) C-seal modular design; Valves: manual and pneumatic diaphragm and bellows-sealed designs; Regulators: manual and preset, high-flow models; Gaskets: C-seal style for 1-, 2-, and 3-port configurations
범위 이 문서에서는 Swagelok이 초고순도(UHP) 전해연마된 스텐레스강 제품과 초고순도 플라스틱 제품을 생산할 때에 준수하는 가이드라인을 설명합니다. 완전한 제품 정보를 얻기 위해서는 이 문서와 함께 제품 카탈로그, 기술 자료 및 보고서도 이용해야 합니다.
Features: This technical report provides data on Swagelok® DP series diaphragm valves. The report covers: surface finish specifications; inboard helium leak testing; particle counting; moisture analysis; hydrocarbon analysis; ionic cleanliness.
Welding should be done by qualified personnel as outlined in Section IX of the ASME Boiler Code. Weld filler material should be the same as the base material.
Spécifications

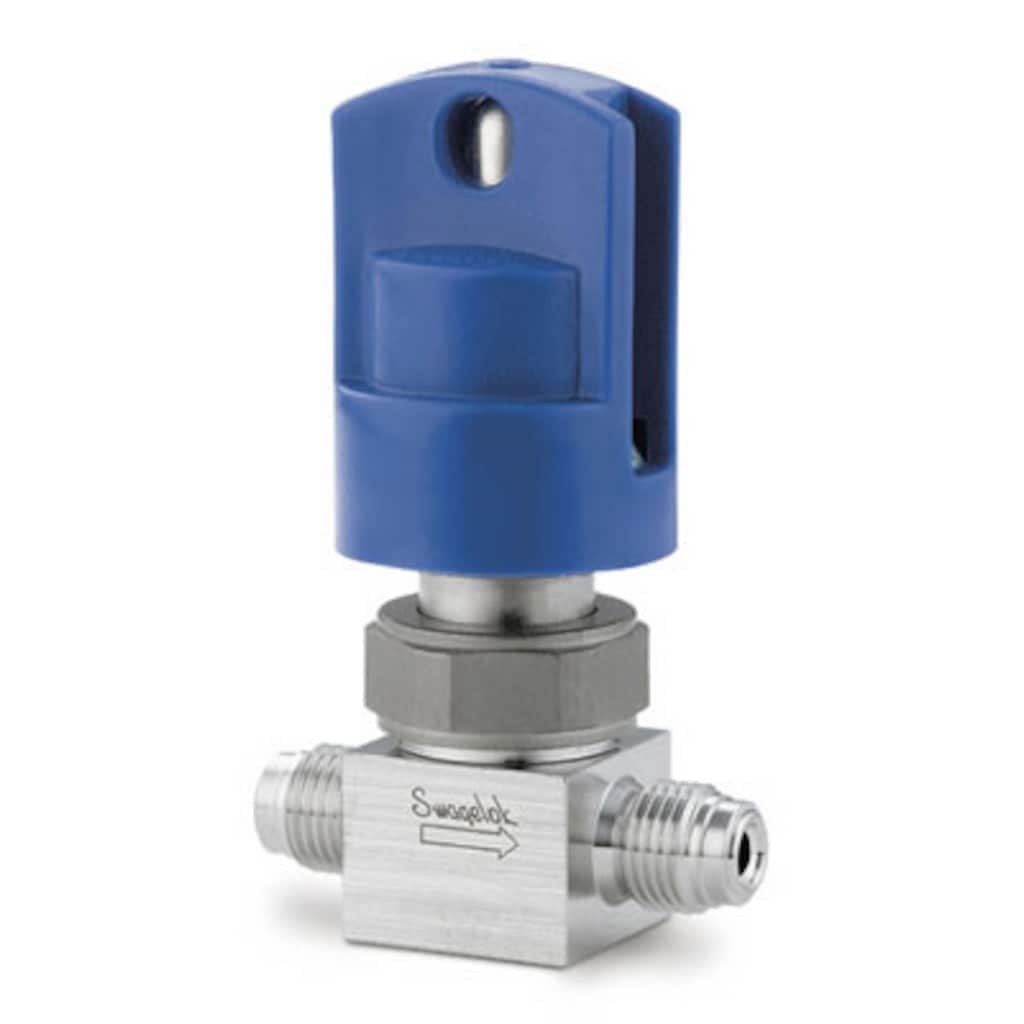

6LVV-DPLVR4-P — Клапан сверхвысокой степени чистоты из стали 316L VIM-VAR с мембранным уплотнением, фитинг с торцевым уплотнением VCR с наруж. резьбой 1/4 дюйма, очистка в соответствии с инструкцией SC-01, фиксирующая рукоятка синего цвета
| Attribut | Valeur |
|---|---|
| Type d'actionneur | Manual |
| Matériau du corps | 316L VIM-VAR |
| Procédé de nettoyage | Ultrahigh-Purity Process Specification (SC-01) |
| Dimension du raccordement 1 | 1/4 in. |
| Type du raccordement 1 | Face Seal (Metal Gasket) Male VCR |
| Dimension du raccordement 2 | 1/4 in. |
| Type du raccordement 2 | Face Seal (Metal Gasket) Male VCR |
| Cv maximal | 0.27 |
| Type d’écoulement | Straight (2-way) |
| Couleur de poignée | Blue |
| Type de poignée | Locking |
| Pressions et températures nominales max. | 150°F @ 250 PSIG /65°C @ 17.2 BAR |
| Pression nominale à température ambiante | 250 PSIG @ 70°F /17.2 BAR @ 20°C |
| Matériau du siège | PCTFE |
| État de surface | 5 µin (0.13 µm) Ra |
| eClass (4.1) | 37010206 |
| eClass (5.1.4) | 37011800 |
| eClass (6.0) | 37011801 |
| eClass (6.1) | 37011801 |
| eClass (10.1) | 37011801 |
| UNSPSC (4.03) | 40141600 |
| UNSPSC (10.0) | 40141621 |
| UNSPSC (11.0501) | 40141621 |
| UNSPSC (13.0601) | 40141621 |
| UNSPSC (15.1) | 40141621 |
| UNSPSC (17.1001) | 40183102 |
