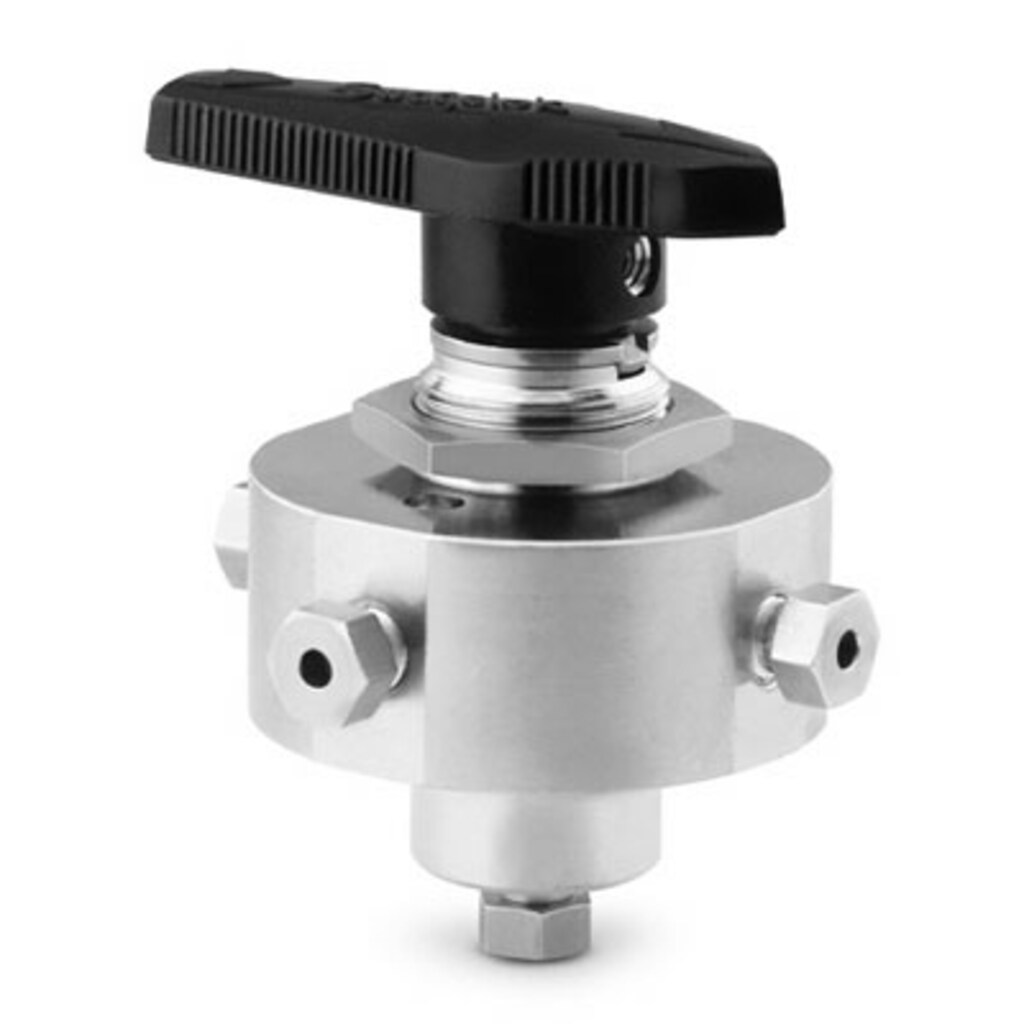

ステンレス鋼製一体型40シリーズ5方タイプ・ボール・バルブ、0.07 Cv、1/8 インチ・サイズめすSwagelokチューブ継手

The 40 series ball valve controls liquid flow with a straightforward on-off, two-way design.

Part #: SS-43ZFS2

Specifications

Attribute Value
ボール型/ステム材質 ステンレス鋼の種類
ボディ材質 316 ステンレス鋼
洗浄プロセス 標準のクリーニングおよびパッケージング(Swagelok SC-10仕様)
コネクション1 サイズ 1/8 インチ
コネクション1 タイプ めすSwagelok®チューブ継手
コネクション2 サイズ 1/8 インチ
コネクション2 タイプ めすSwagelok®チューブ継手
コネクション3 サイズ 1/8 インチ
コネクション3 タイプ めすSwagelok®チューブ継手
コネクション4 サイズ 1/8 インチ
コネクション4 タイプ めすSwagelok®チューブ継手
最大Cv 0.07
流路図 標準
フロー・パターン 5方タイプ(切り替え用)
ハンドル・カラー ブラック
ハンドル・タイプ レバー・ハンドル
低排出ガス認定 カタログ有り
オリフィス 0.062 インチ / 1.6 mm
パッキン材質 PTFE
リング / ディスク素材 ステンレス鋼(PTFE被膜)
室温における最高使用圧力 2500 PSIG @ 100°F /172 BAR @ 37°C
サービス・クラス 一般用
試験 WS-22に基づいたテスト
eClass (4.1) 37010401
eClass (5.1.4) 37010401
eClass (6.0) 37010401
eClass (6.1) 37010401
eClass (10.1) 37010401
UNSPSC (4.03) 40141607
UNSPSC (10.0) 40141607
UNSPSC (11.0501) 40141607
UNSPSC (13.0601) 40141607
UNSPSC (15.1) 40141607
UNSPSC (17.1001) 40183103
4方タイプ・クロスオーバー用

計装用一体型ボール・バルブ40シリーズは、ほぼ40年にわたって、さまざまな産業において信頼を築き上げてきました。Swagelokバルブの構造を変更し、革新的なアセンブリー・プロセスを開発しました。その結果、40Gシリーズ・ボール・バルブは、使用温度範囲の拡大および熱サイクル性能の向上を実現し、漏れを生じる可能性が低減しています。
