真ちゅう製ミニチュア・クイック・コネクツ・ステム(バルブなし)、0.06 Cv、1/8 インチ・サイズ NPTおねじ |
||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Especificaciones
ステム迅速かつ容易に接続可能なSwagelokミニチュア・クイック・コネクツは、研究室などの限られたスペース内で、接続を頻繁に行い、デッド・ボリュームを小さくしつつスピリッジ(流体流出量)や空気混入量を最小限に抑える必要のある用途に最適です。 Inicie la sesión o regístrese para ver los precios ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Advertencia: 스웨즈락의 튜브 피팅 연결구를 포함하여 이러한 제품은 산업 설계 기준에 따라 제조되지 않으므로 스웨즈락의 제품 및 부품을 타 제조업체의 제품 및 부품과 혼합하거나 혼용하여 사용하지 마십시오. |
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Advertencia: 스웨즈락의 튜브 피팅 연결구를 포함하여 이러한 제품은 산업 설계 기준에 따라 제조되지 않으므로 스웨즈락의 제품 및 부품을 타 제조업체의 제품 및 부품과 혼합하거나 혼용하여 사용하지 마십시오.
真ちゅう製ミニチュア・クイック・コネクツ・ステム(バルブなし)、0.06 Cv、1/8 インチ・サイズ NPTおねじ
Inicie la sesión o regístrese para ver los precios
Catálogos
ステム
迅速かつ容易に接続可能なSwagelokミニチュア・クイック・コネクツは、研究室などの限られたスペース内で、接続を頻繁に行い、デッド・ボリュームを小さくしつつスピリッジ(流体流出量)や空気混入量を最小限に抑える必要のある用途に最適です。
■ 着脱時のひねり、回転、レンチ操作が不要/■ 型式: シングル・エンド・シャット・オフ(SESO)型、ダブル・エンド・シャット・オフ(DESO)型、フル・フロー型
Good practices for operation of Swagelok quick-connects.
Especificaciones

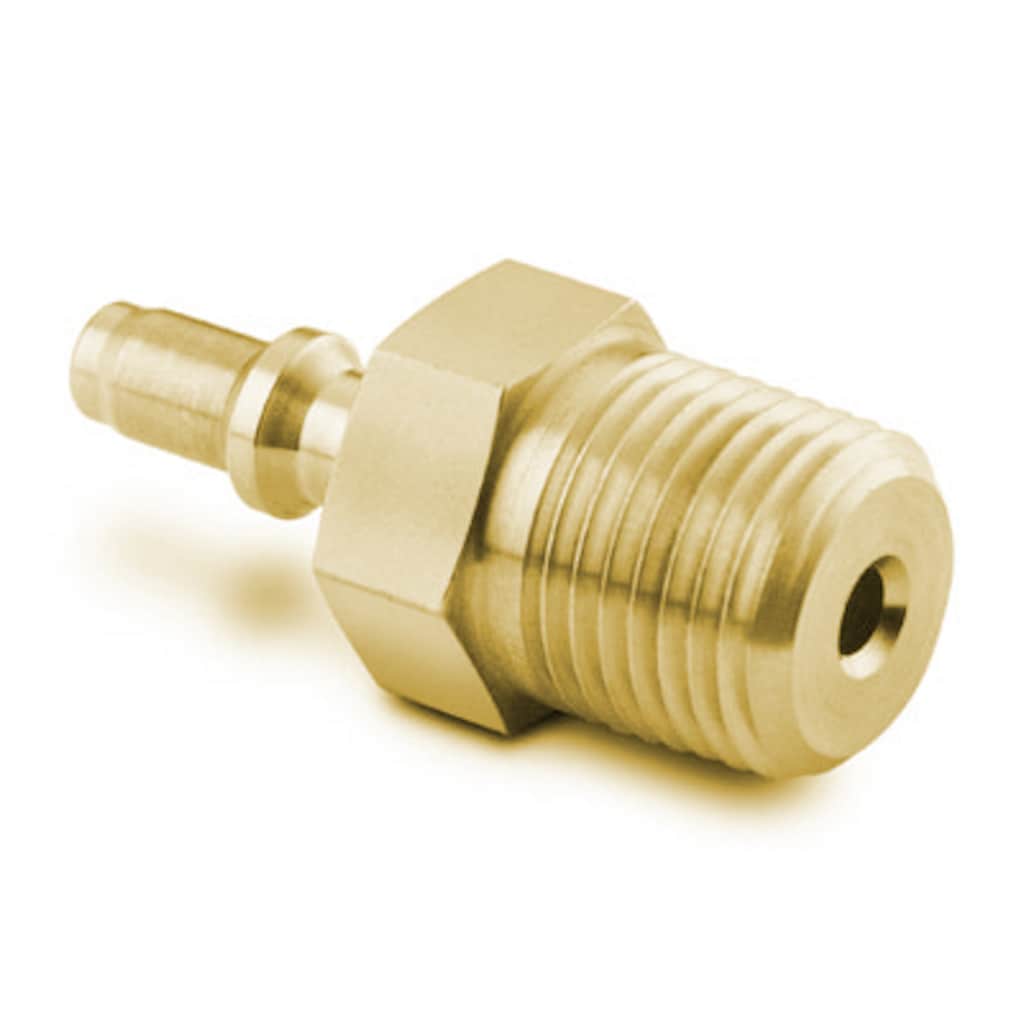

B-QM2-S-2PM — 真ちゅう製ミニチュア・クイック・コネクツ・ステム(バルブなし)、0.06 Cv、1/8 インチ・サイズ NPTおねじ
Atributo | Valor |
---|---|
ボディ材質 | 황동 |
洗浄プロセス | 표준 세정 및 포장(SC-10) |
コネクション1 サイズ | 1/8인치 |
コネクション1 タイプ | 수나사 NPT |
最大Cv | 0.06 - 관통형 유로 몸체와 체결할 경우, 0.06 - 표준 또는 역류 몸체와 체결할 경우 |
潤滑剤 | 구성 부품에 윤활제 없음 |
Oリング材質 | Buna N(표준) |
最高使用圧力(最高温度での接続時) | 100PSIG @ 250°F /6.8BAR @ 121°C |
最高使用圧力(室温での接続時) | 2000PSIG @ 70°F /137BAR @ 21°C |
シリーズ | QM2 |
eClass (4.1) | 37110302 |
eClass (5.1.4) | 37110302 |
eClass (6.0) | 37020590 |
eClass (6.1) | 37020500 |
eClass (10.1) | 37020500 |
UNSPSC (4.03) | 31163101 |
UNSPSC (10.0) | 27121701 |
UNSPSC (11.0501) | 27121701 |
UNSPSC (13.0601) | 27121701 |
UNSPSC (15.1) | 27121701 |
UNSPSC (17.1001) | 27121701 |
Documentación
Planos
Hay disponibles reproducciones bidimensionales para este producto. Descargar el archivo CAD.
Hay disponibles reproducciones tridimensionales para este producto. Descargar el archivo CAD.
Hay planos dimensionales disponibles para este producto. Descargar los archivos
Productos similares
# de Pieza
|
Material del Cuerpo
|
Tamaño conexión 1
|
Tipo de conexión 1
|
Tamaño conexión 2
|
Tipo de conexión 2
|
|
---|---|---|---|---|---|---|
B-QM2-S-200 | 真ちゅう | 1/8 インチ | Swagelok®チューブ継手 | - | - | Ver producto |
SS-QM2-S-100 | 316 ステンレス鋼 | 1/16 インチ | Swagelok®チューブ継手 | - | - | Ver producto |
SS-QM2-S-200 | 316 ステンレス鋼 | 1/8 インチ | Swagelok®チューブ継手 | - | - | Ver producto |
SS-QM2-S-2PF | 316 ステンレス鋼 | 1/8 インチ | NPTめねじ | - | - | Ver producto |
SS-QM2-S-2PM | 316 ステンレス鋼 | 1/8 インチ | NPTおねじ | - | - | Ver producto |
