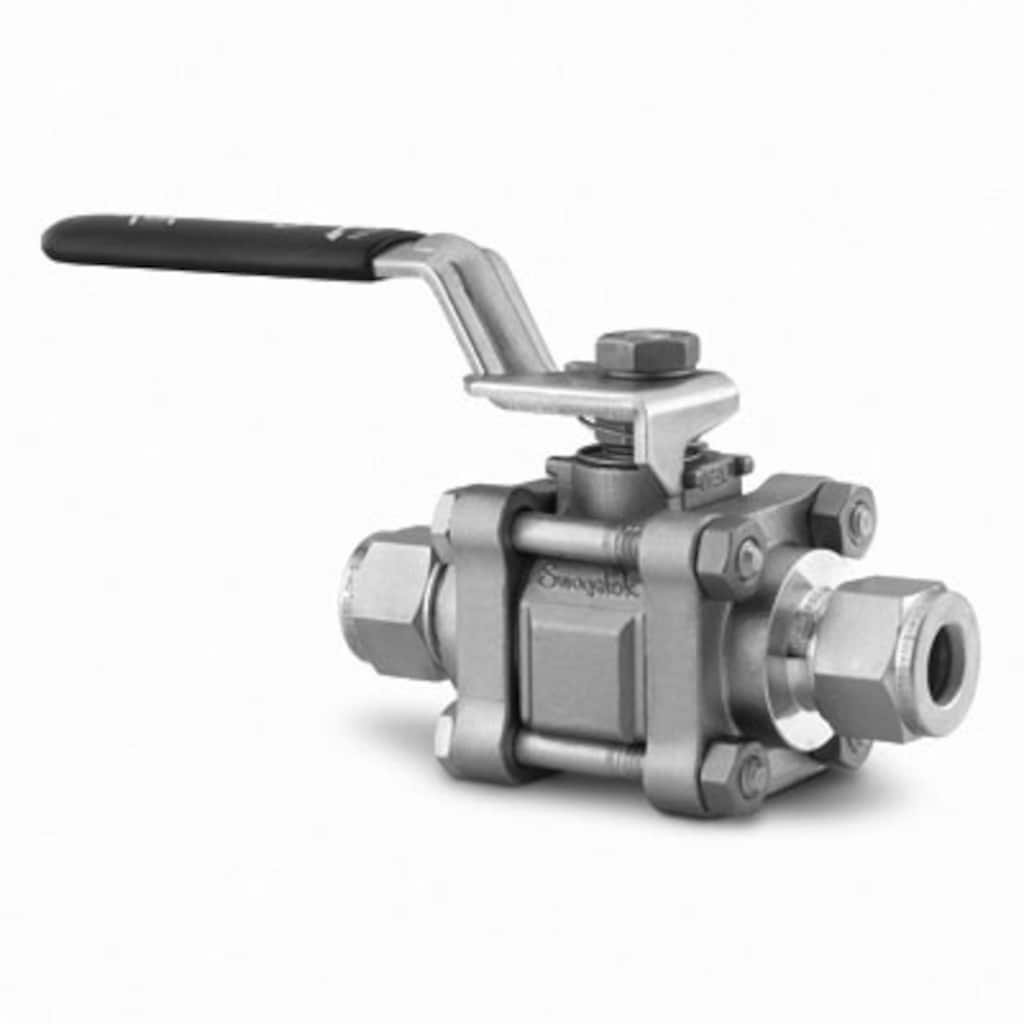

Stainless Steel 3-Piece 60 Series Ball Valve, Reinforced PTFE Seats, 18 mm Swagelok Tube Fitting

Stainless steel 2-way ball valve with 18 mm Swagelok tube fittings, PTFE seats, lever handle. Delivers reliable shutoff at 2200 PSIG and 100°F.

Especificaciones

Atributo Valor
Material de la bola/vástago Stainless Steel
Material del Cuerpo 316 Stainless Steel
Proceso de Limpieza Standard Cleaning and Packaging (SC-10)
Tamaño conexión 1 18 mm
Tipo de conexión 1 Swagelok® Tube Fitting
Tamaño conexión 2 18 mm
Tipo de conexión 2 Swagelok® Tube Fitting
Cv Máximo 13.6
Material de los Cierres 316 Stainless Steel
Material de la junta de la brida Fluorocarbon FKM
Configuración de Caudal 2-Way, Shutoff, Straight
Color del Mando Black
Tipo de mando Lever
Certificado de Bajas Emisiones Yes
Rango de presión a temperatura ambiente 2200 PSIG @ 100°F /151 BAR @ 37°C
Material del asiento Reinforced PTFE
Material del muelle del asiento 316 Stainless Steel
Clase de servicio General
Material de los cojinetes del vástago Alloy X750
Pruebas Testing according to WS-22
eClass (4.1) 37010401
eClass (5.1.4) 37010401
eClass (6.0) 37010401
eClass (6.1) 37010401
eClass (10.1) 37010401
UNSPSC (4.03) 40141607
UNSPSC (10.0) 40141607
UNSPSC (11.0501) 40141607
UNSPSC (13.0601) 40141607
UNSPSC (15.1) 40141607
UNSPSC (17.1001) 40183104
2 Vías Modelo Recto

Asiento único de disco cónico comprimido por muelles; empaquetadura chevron auto compensada de dos piezas; y diseño desmontable, las válvulas de bola de 3 piezas para proceso/instrumentación serie 60 están concebidas para fiabilidad y bajo mantenimiento.
