Swagelok® Needle and Metering Valves
Swagelok needle valve and metering valves allow for precise flow control in a wide range of applications.
Needle Valves | Provide reliable flow control using a variety of stem designs, flow patterns, materials, and end connections
Metering Valves | Provide the ability to make fine adjustments to system flow across pressures and flow rates
Swagelok needle valves are available in a variety of configurations to allow users to find options that suit their performance needs and system designs. These needle valves provide reliable operation from basic, low-pressure instrumentation applications to corrosive, high-temperature, high-pressure applications. Swagelok needle valves are available with flow coefficients ranging from 0.12 to 2.4. They are also available with low emissions (Low-E) certification per API 624.
Swagelok metering valves are also available in a variety of configurations, are suitable for low- and high-pressure use, and can deliver accurate flow rate control in analytical, instrumentation, and research applications. They provide fine adjustments in applications demanding precise levels of flow, delivering flow coefficients from 0.004 to 0.16. Various handle options for metering valves allow for repeatable flow adjustments, enhanced control for setting flows, or flow setting adjustment with a screwdriver in low-pressure applications.
ニードル/メータリング・バルブ(微量流量調節用)のカテゴリー

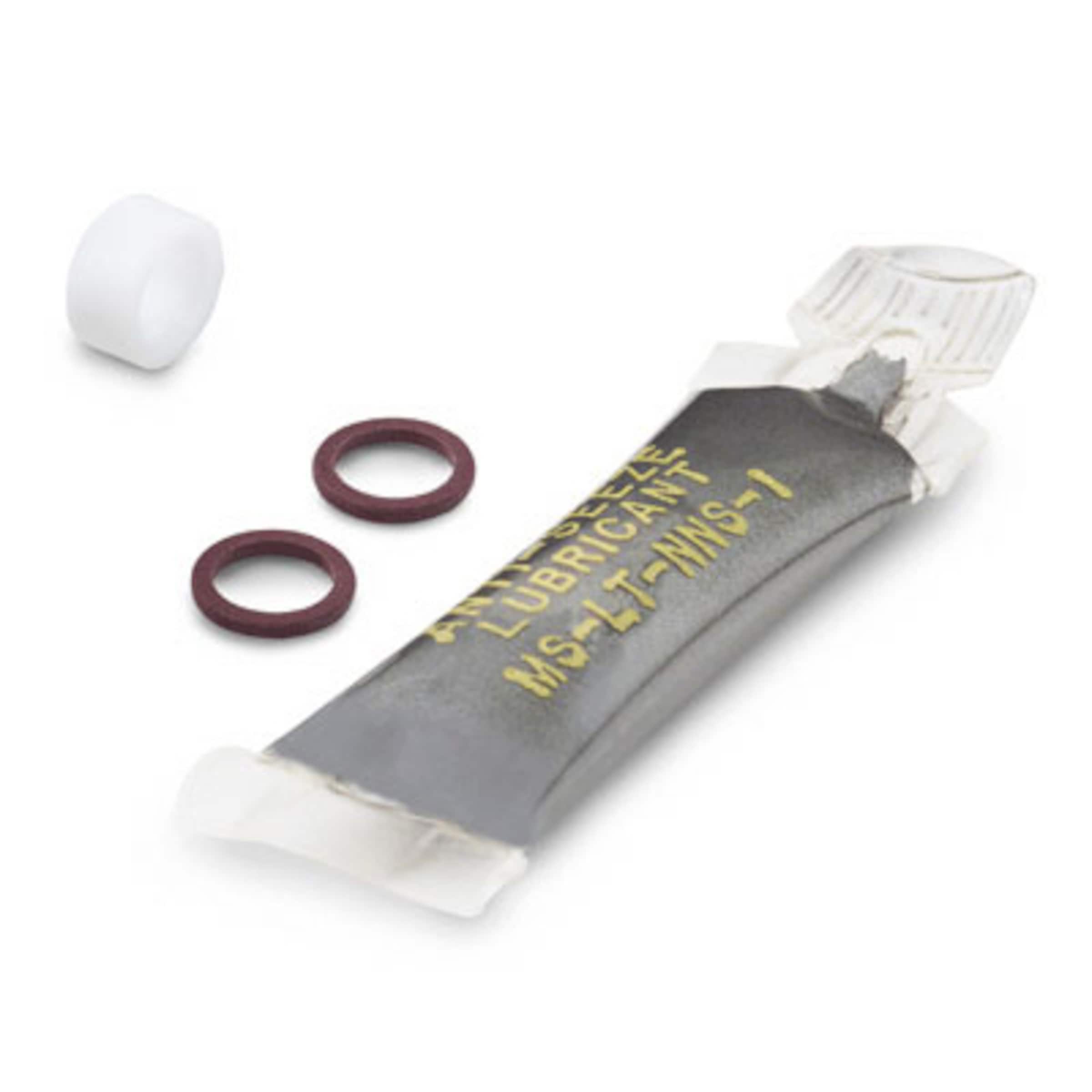

スペアー・パーツ/アクセサリー
ニードル/メータリング・バルブ(微量流量調節用)の交換用部品/アクセサリー(バルブ・ロック・デバイス、ラプチャー・ディスク・キット、ハンドル・キットなど)を幅広く取り揃えています。

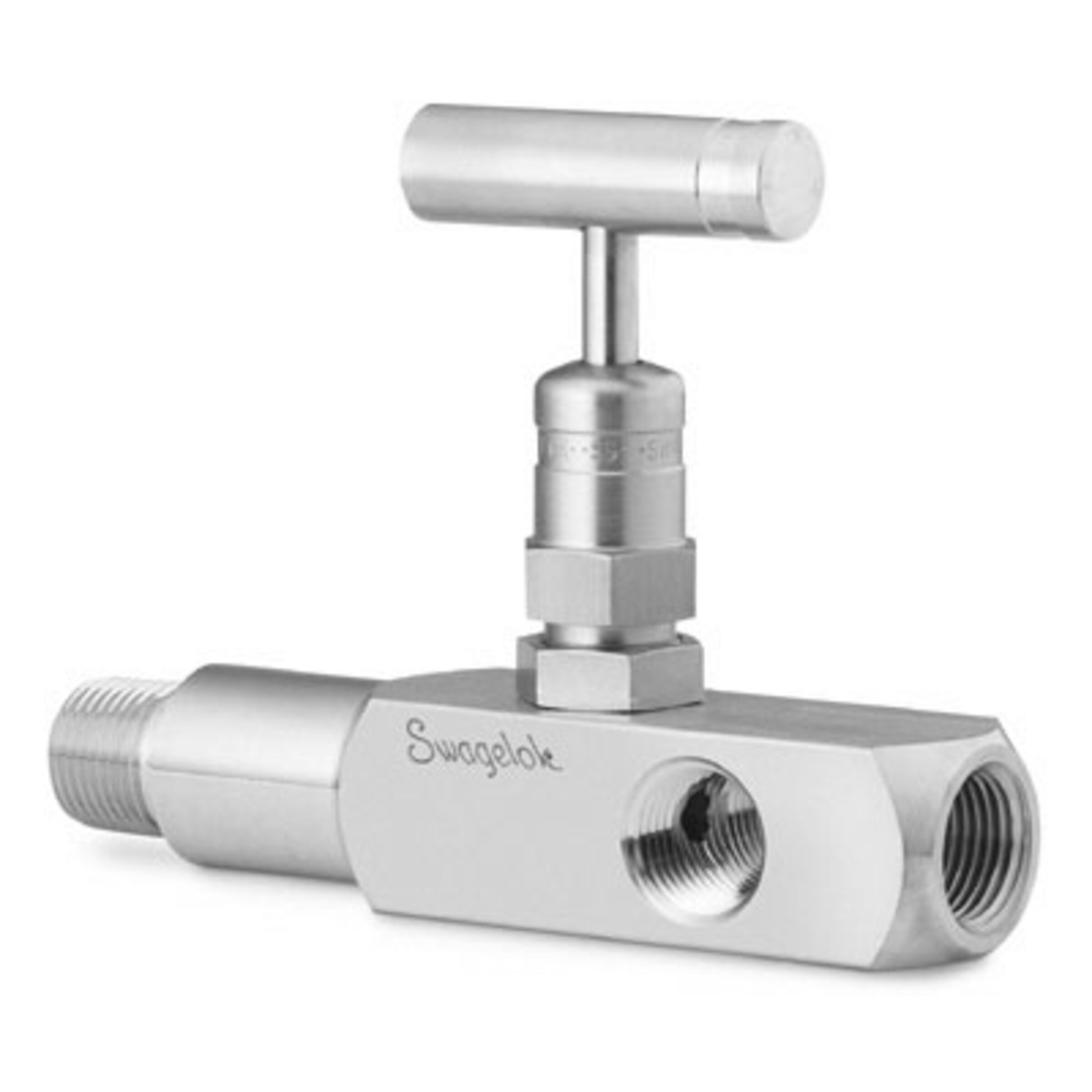

ボンネットねじ込み型ゲージ・バルブ
ボンネットねじ込み型ゲージ・バルブを使用すると、プロセス測定装置の遮断・接続を制御し、流体の圧力による衝撃や圧力サージ(急激な圧力上昇)から装置を保護することができます。

ボンネット一体型ニードル・バルブ、O / 1 / 18 / 20 / 26 / D シリーズ
ボンネット一体型ニードル・バルブは、ライブ・ロード式パッキンおよびコンパクトなデザインを採用しており、圧力が41.3 MPaまで、温度が315℃までの環境で最適なパフォーマンスを発揮します。

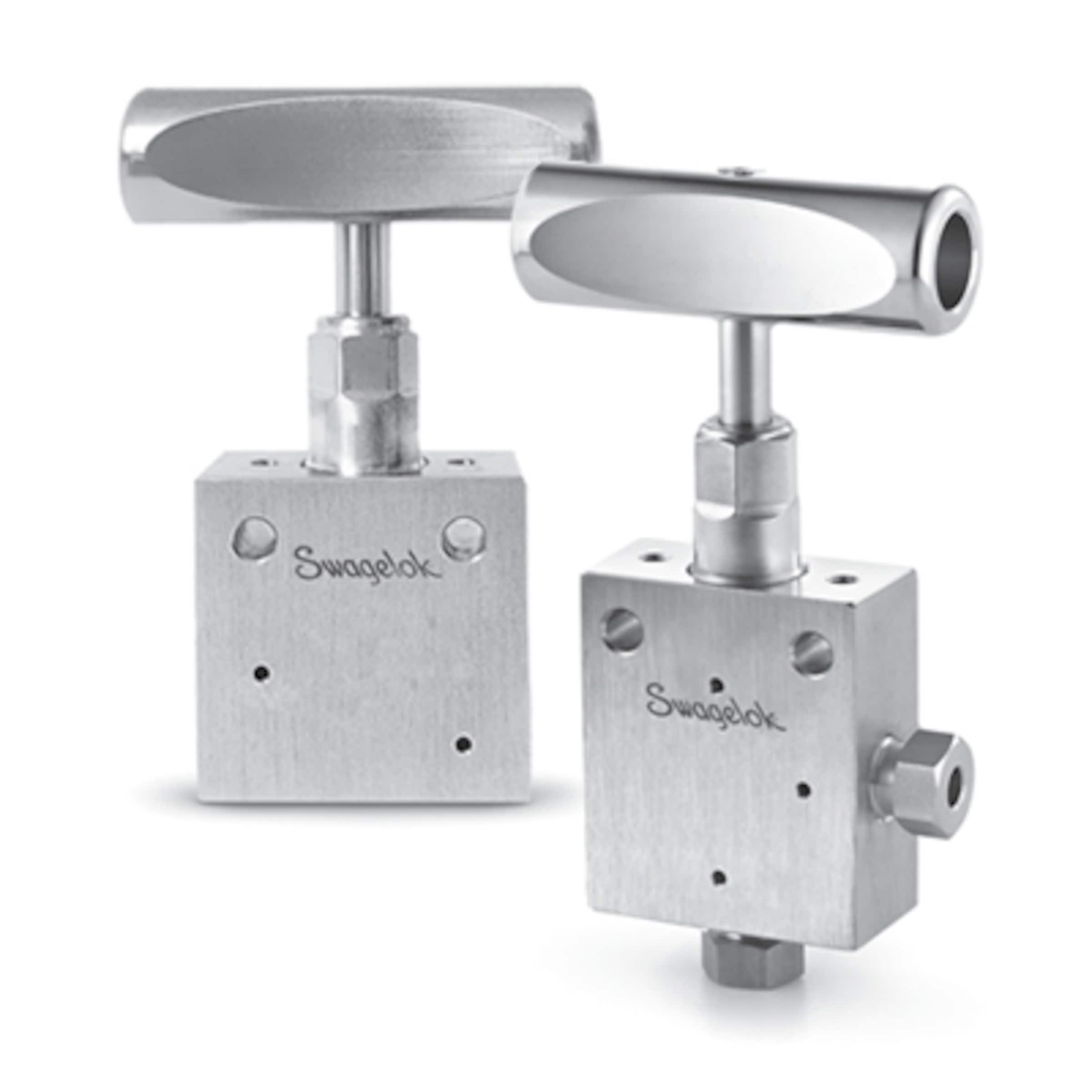

ミディアム・プレッシャー・ニードル・バルブ、NV / NVTシリーズ
ミディアム・プレッシャー・ニードル・バルブ NVTシリーズ(ストレート型、アングル型)は無回転ステムを採用しており、最高使用圧力は413.4 MPaです。

メータリング・バルブ(微量流量調節用、S/M/31シリーズ
Swagelok®メータリング・バルブ(ストレート型、アングル型)のボディ材質は、316ステンレス鋼または真ちゅうです。さまざまなエンド・コネクションやハンドルを選ぶことができます。

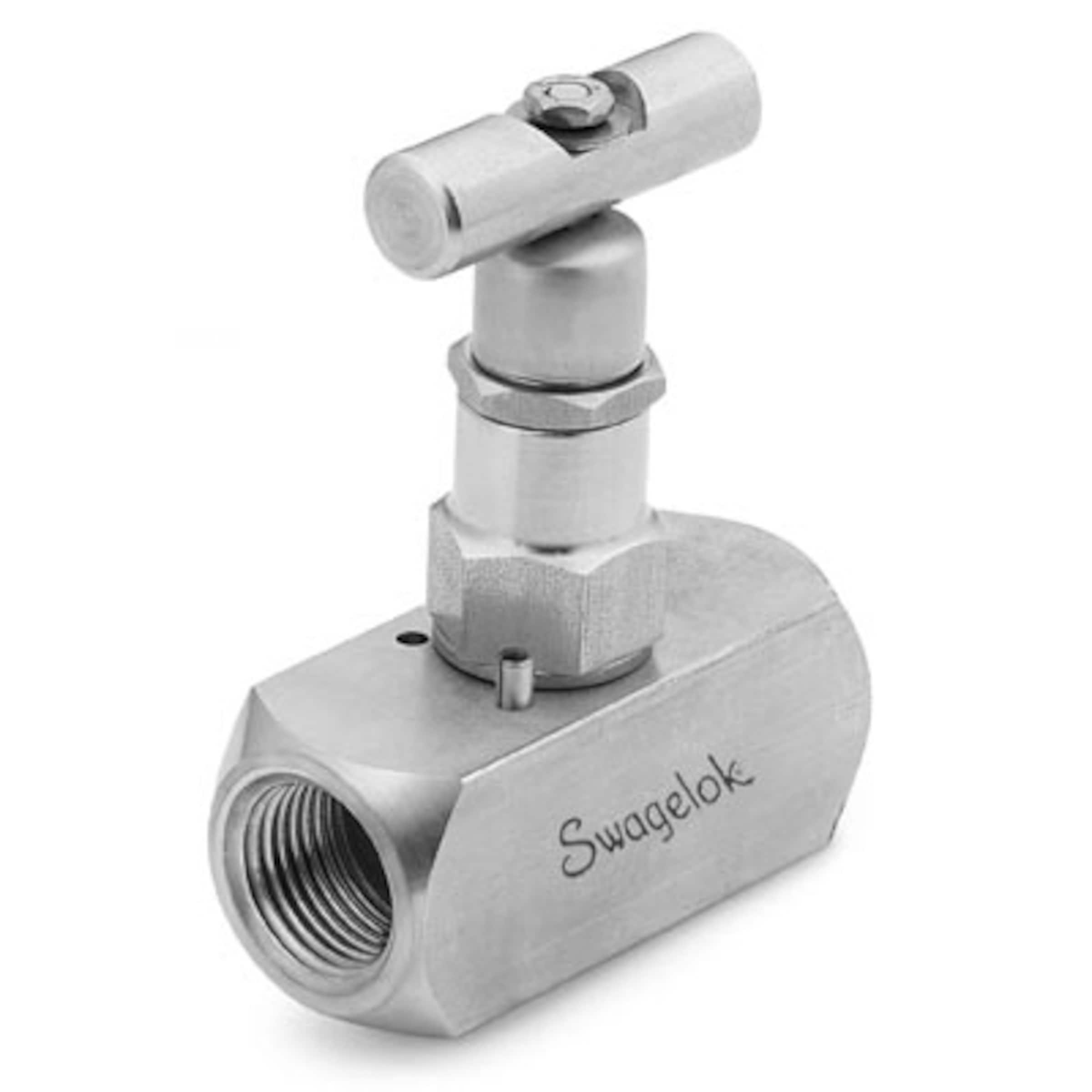

一般ユーティリティー用ニードル・バルブ、GU / F10 シリーズ
一般アプリケーションにおけるシステム流体の遮断に適しています。ステンレス鋼製無回転ステム式ニードルを採用し、漏れの無い締め切りおよび長寿命を実現します。

上昇プラグ型バルブ、4P/5Pシリーズ
Swagelok®上昇プラグ型バルブは、無回転ステム・チップにより確実にシールします。ストレート・スルー型オリフィスにより大流量を実現し、クリーニングが容易です。

過酷条件用ニードル・バルブ、N / HN シリーズ
過酷条件用ユニオン・ボンネット型ニードル・バルブは、耐久性に優れたステンレス鋼製ステムねじや、開状態において調節可能なパッキン・ボルトを採用しています。

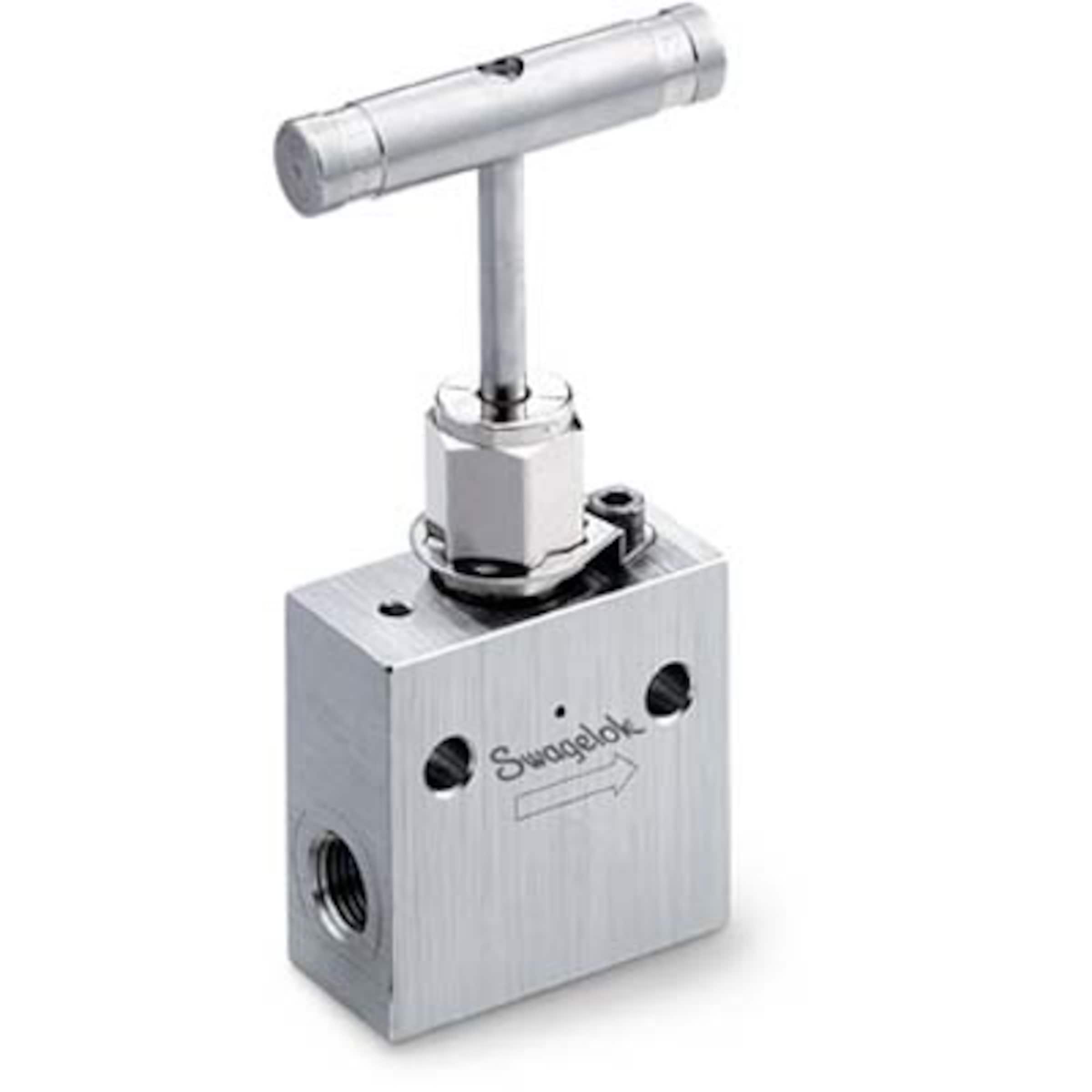

高圧用ニードル・バルブ、Sno-Trik社410 / 445 / 645 / 945 シリーズ
Sno-Trikニードル・バルブは、高圧アプリケーションの要件を満たします(最高使用圧力:310.0 MPa)。漏れを検出できるウィープ・ホールが付いています。
Needle and Metering Valves Catalogs
Locate detailed product information, including materials of construction, pressure and temperature ratings, options, and accessories.
■ ボディ型式:ストレート型、アングル型/■ ボディ材質:ステンレス鋼、炭素鋼/■ 最高使用圧力:41.3 MPa/■ 最高使用温度:232℃(PTFE製パッキンの場合)、343℃[グラファイト製パッキン(オプション)の場合]
■ 手動式/空気作動式/■ フロー・パターン:ストレート型、アングル型、クロス型/■ ボディ材質:316ステンレス鋼、真ちゅう
■ 材質:ステンレス鋼/■ ステム・デザイン:無回転ボール型、プラグ型/■ 細い棒などでクリーニングが可能(プラグ型ステム・チップ)/■ 断熱被覆用エクステンション付きボディ(ボール型ステム・チップ)により、断熱材使用の際に、ハンドル操作やパッキンのメンテナンスを妨げることのないよう、断熱材との間に必要な間隔を確保/■ エンド・コネクション・タイプ(サイズ):NPT おねじ(1/2 インチ、3/4 インチ)-NPTめねじ(1/2 インチ)/■ ゲージ・ポート:1/2 インチ・サイズNPTめねじ(標準)/■ スケジュール160以上のパイプ肉厚(バルブ一次側の継手)で、強度を確保/■ ボンネット・ロック・プレート付き(標準)
■ 最高使用圧力:68.9 MPa/■ 使用温度範囲:PTFE製パッキンの場合:-53℃から232℃まで/Grafoil® 製パッキンの場合:648℃まで/■ 材質:316ステンレス鋼、316/316Lステンレス鋼(デュアル・グレード品)、合金400、合金600、合金C-276、チタニウム/■ API 624 による低排出認定付きもございます
Features: Working pressures up to 10 000 psig (689 bar); Temperatures from –65 to 450°F (–53 to 232°C) with PTFE packing; up to 1000°F (537°C) with Grafoil® packing; Alloy 625, alloy 825, Alloy 2507, and 6-moly materials
■ 材質:高純度PFA/■ 最高使用圧力:1.24 MPa/■ 最高使用温度:148℃/■ エンド・コネクション・タイプ(サイズ):Swagelok® PFAチューブ継手(1/4 インチ、3/8 インチ、1/2 インチ)
■ 細い棒などでクリーニングが可能なストレート・スルー(まっすぐな流路)形オリフィスにより、大流量を実現/■ 最高使用圧力:41.3 MPa/■ ステム・ネジ部の下に位置するパッキン/■ シートとステム・チップが交換可能なデザイン/■ API 624 による低排出認証付きもございます

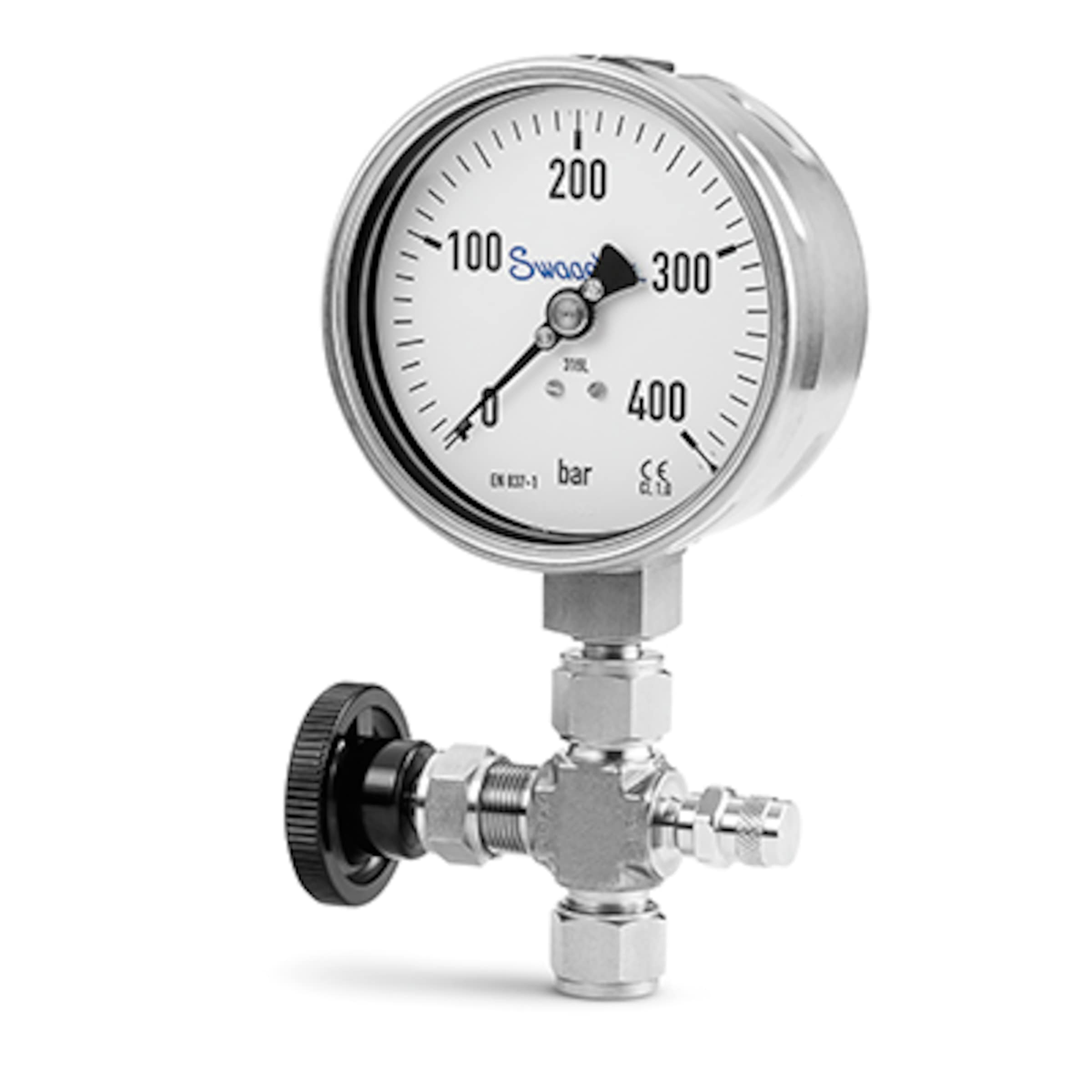

■ チューブ・アダプター・エンド・コネクション付きのSwagelok圧力計用に設計しているため、目盛板の位置合わせが容易で、圧力計の取り付け時間の短縮およびコストの削減が可能/■ Swagelokチューブ継手エンド・コネクションにより、バルブの取り付け時間の短縮およびコストの削減が可能/チューブをしっかりとグリップし、耐振性に優れる/■ 一体型パージ・バルブにより、ねじ接続部分がなく、漏れの可能性がある接続部分を削減/バルブ・ボディから外れないようにパージ・キャップにかしめ加工を施すことで、安全性を高め、偶発的な分解を防止
ライブ・ロード式パッキン/コンパクトなデザイン/最高使用圧力:41.3 MPa/最高使用温度:315℃
■ 最高使用圧力:413.4 MPa/■ エンド・コネクション・サイズ:1 1/2 インチ、12 mmまで/■ NACE® MR0175/ISO 15156に準拠した製品もございます
流量係数(Cv値):0.004から0.15まで(ストレート型の場合)/モデル:低圧型/高圧型/ハンドル各種(バーニア・ハンドルもございます)/材質:真ちゅう、316ステンレス鋼
■ 材質:316ステンレス鋼/■ 安全性の高いユニオン・ボンネット構造/■ Grafoil® 製パッキンの採用により、高温でも使用可能/■ エンド・コネクション・タイプ:Swagelok®チューブ継手、NPTめねじ、チューブ差し込み溶接、パイプ差し込み溶接/■ オリフィス:6.4 mm、流量係数(Cv値):0.86/■ 全開あるいは全閉状態にて使用するよう設計されています
■ 最高使用圧力:20.6 MPa/■ 最高使用温度:232℃(PEEK製ステム・チップの場合)/■ 材質:ステンレス鋼、真ちゅう、合金400
■ OSHA Lockout/Tagout, Standard 29 CFR Part 1910.147, Control of Hazardous Energy に準拠/■ カラーは明るいオレンジなので、一目で分かります。オレンジ以外のカラーもございます/■ プラスチック製ビード・チェーン(25 cm)を付けることができ、未使用時の保管に便利/■ 材質:頑丈なポリプロピレン(優れた耐薬品性)、使用温度範囲:-28~148℃/■ 汎用性に優れたデザインで、直径9.5~108 mmのステムまたはハンドルに対応します。また、南京錠(掛け金部分の長さ:19.0 mm以上、掛け金の直径:9.5 mmまで)を使用することができます

Calculate Flow Rate for the Right Valve Selection
Use our valve flow coefficient (Cv) calculator to chose a valve sized correctly for your needs.
Use the ToolSwagelok Resources Curated for You

How to Select the Right Valves for Your Industrial Fluid System
Learn how to apply the practical STAMPED method to select the valves most suited to your industrial fluid or sampling system design applications.

Minimize the Costs of Fugitive Emissions with Low-E Valves
Fugitive emissions are a growing concern in the chemical and petroleum refining industry. Certified low-emissions (Low-E) valves can protect your facility and bottom line. Learn what they are, how they are tested, and how they can help you in this post.

How to Isolate Industrial Fluid Systems with Block Valves
The isolation of industrial fluid system lines prior to maintenance is vital to plant safety. One of the safest ways to isolate a fluid system line is to install two block valves. Learn how to design proper configurations for your system.

One New Valve. Three Reasons It Could Change Semiconductor Manufacturing
Find out how the latest innovation in atomic layer deposition (ALD) valve technology is changing the game for high-tech semiconductor manufacturers.

Needle Valves
Swagelok needle valves are available in general utility service, integral-bonnet, screwed-bonnet, forged-body, toggle, severe-service union-bonnet, instrumentation blowdown, compact gauge, non-rotating stem, and rising plug valve configurations with pressure ratings up to 45 000 psig (3100 bar). Flow patterns include straight, angle, and cross, with actuation options including both manual and pneumatic.
Metering Valves
Swagelok metering valves deliver accurate flow rate control for low-, medium-, and high-flow applications. Flow patterns include straight, angle, cross, and double with pressure ratings up to 5000 psig (344 bar). Knurled, round, vernier, slotted, and adjustable-torque handle options allow for repeatable flow adjustments, enhanced control for setting flows, or flow setting adjustment with a screwdriver in your low-pressure applications.
