Клапаны Swagelok® с мембранным уплотнением
Применение клапанов с мембранным уплотнением позволяет минимизировать зоны скопления среды и облегчить продувку благодаря беспрепятственному пути прохождения потока, что повышает эффективность системы и обеспечивает надежное отсечение потока. Предлагаются разнообразные размеры, материалы изготовления и конфигурации клапанов, в том числе для атомно-слоевого осаждения, для работы с погружением при высокой температуре и с беспружинной конструкцией, соответствующие требованиям к системам высокой и сверхвысокой степени чистоты.
View Diaphragm ValvesSwagelok diaphragm-sealed valves come in various sizes, materials, and configurations to meet the needs of high-purity and UHP applications. They feature flow coefficients ranging from 0.20 to 13. Their fully swept flow paths and corrosion-resistant construction make them ideal for applications where cleanliness is crucial. Users can choose from manual, pneumatic, and locking actuator options.
Swagelok diaphragm-sealed valves can be used in atomic layer deposition (ALD), high-flow, modular gas system, thermal-immersion, and ultrahigh-purity applications requiring fluoropolymer component construction.
- Swagelok springless diaphragm valves for modular gas systems are easy to install, provide a visual indication of flow direction, and have a seat design that improves thermal stability
- Swagelok bulk gas diaphragm valves offer a combination of strength, flexibility, and cycle life to support a wide range of ultrahigh-purity shutoff, bulk-gas distribution, and isolation applications
- Swagelok thermal-immersion diaphragm valves can be entirely contained within a high-temperature, high-purity environment, making them strong options for ALD and precursor delivery applications
- Swagelok ultrahigh-purity fluoropolymer diaphragm valves offer a strong solution for UHP chemical distribution, DI water, and bulk chemical delivery systems
Have questions about diaphragm-sealed valves?
ダイヤフラム・バルブのカテゴリー

Válvulas de Diafragma de Fluoropolímero de Ultra Alta Pureza, Serie DRP
Asegure un rendimiento óptimo y larga vida útil en sistemas químicos UHP con un paso de caudal dinámico para minimizar el desgaste y la contaminación de los fluidos.

Válvulas de Diafragma para Inmersión Térmica, Serie DH
Válvulas de diafragma de inmersión térmica utilizadas en procesos de alta temperatura como la deposición de capas atómicas (ALD) y aplicaciones de distribución de precursores.

スペアー・パーツ/アクセサリー
ダイヤフラム・バルブのメンテナンスを行う際の交換用部品/アクセサリー(ダイヤフラム・キット、シール・キット、ステム・キット、アクチュエーター交換キットなど)を幅広く取り揃えています。

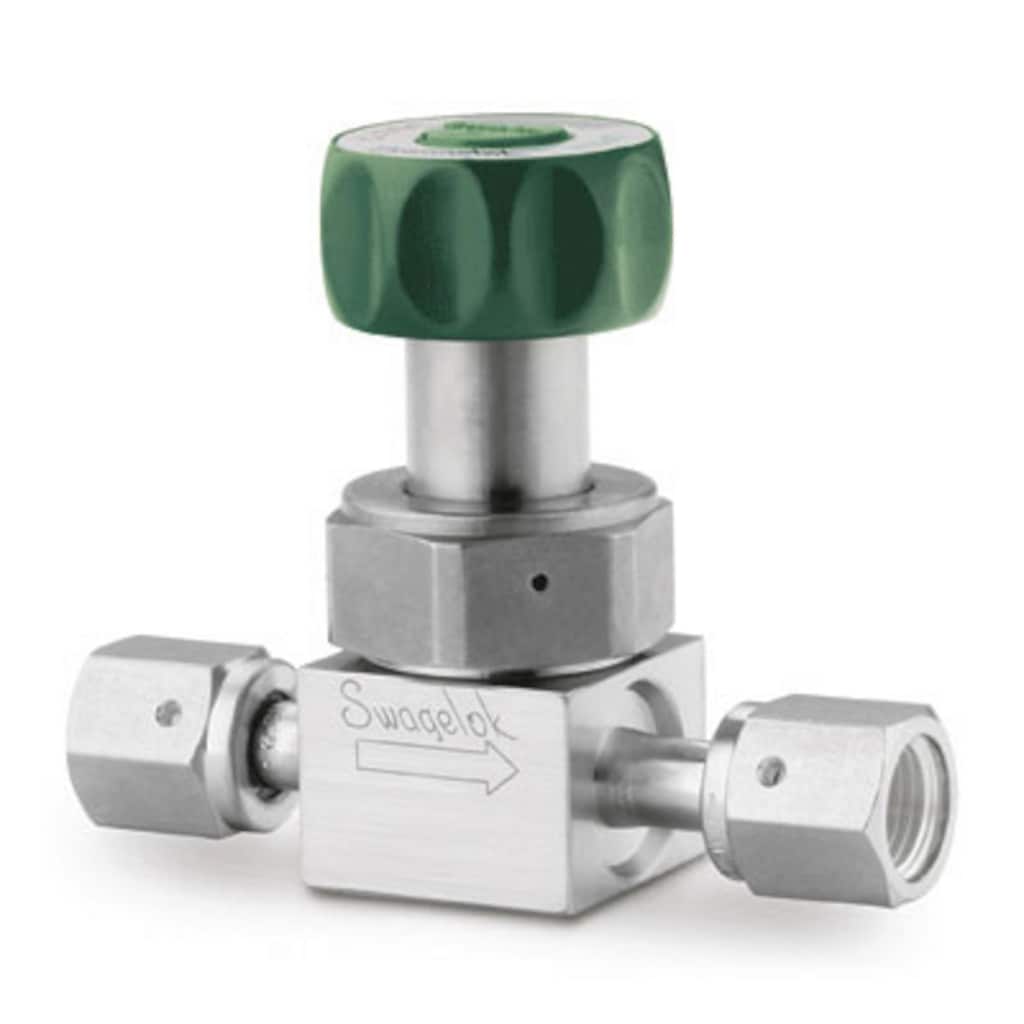

超高純度用大流量ダイヤフラム・バルブ、DFシリーズ
大流量用スプリングレス・ダイヤフラム・バルブは、長いサイクル・ライフを実現します。スプリングやねじを使用していないため清浄度が向上し、流路から障害物を一掃したデザインを採用することでパージ性を強化しています。

超高純度用締め切り型ダイヤフラム・バルブ、DPシリーズ
超高純度用締め切り型ダイヤフラム・バルブには、ストレート型(手動式アクチュエーター付き)、マルチポート、集積型(MSM)(一体型アクチュエーター付き)があります。

集積化ガス・システム用スプリングレス・ダイヤフラム・バルブ、1.125インチ、DEシリーズ
Válvulas de control fiables y mejoradas con un diseño sin muelles, ideales para una operación eficiente en sistemas modulares de gas.

高純度/高圧用ダイヤフラム・バルブ、DL/DSシリーズ
高純度/高圧用ダイヤフラム・バルブは、ステムの先端がソフト・シート(プラスチック製)の変形を最小限に抑えるよう設計されており、繰り返し締め切ることが可能です。底部取り付けまたはパネル取り付けを選ぶことができます。
Каталоги клапанов с мембранным уплотнением
Получите подробную информацию о продукции, в том числе о материалах изготовления, номинальных параметрах давления и температуры, вариантах исполнения и вспомогательных принадлежностях.
Features: 1.125 in. C-seal and W-seal designs; Available in two- and three-port configurations; Compact pneumatic and manual actuators; Pneumatic actuator indicator ball: red for normally closed, green for normally open; Fixed orientation of actuator to body for consistency of installation; Corner chamfers on outlet side of body for visual indication of flow direction
Swagelok thermal-immersion diaphragm valves offer high-speed actuation and are designed for optimum performance at 220 degrees C (428 degrees F) for high-temperature processes.
Features: Pneumatic and quarter-turn manual 2-way and 3-way models; pneumatic and manual models with adjustable flow and bypass features; DuPont® Teflon® modified PTFE wetted parts and polypropylene actuator; Meet SEMI Standard F57-0301 for ultrahigh-purity system components; Fine thread flare and Nippon Pillar® Super 300 end connections standard; space saver and other end connections available; Custom manifolds and subassemblies available
Sin empaquetadura, contención totalmente metálica; Presiones de servicio desde vacío hasta 241 bar (3500 psig); Temperaturas de –73 a 121°C (–100 a 250°F)
Adecuadas para aplicaciones de pureza ultra alta; Cuerpo de acero inoxidable 316L VIM-VAR; Modelos de alta y baja presión; Conexiones finales: VCR®, para soldadura de tubo a tope y para montaje superficial modular; Actuación manual o neumática
Presiones de servicio hasta 20,6 bar (300 psig); Servicios de cierre, aislamiento y distribución de gas; Material del cuerpo: fundición, forjado y acero inoxidable de barra; Conexiones finales de 12 a 25 mm y de 1/4 a 1 pulgada
Features: 316L VAR stainless steel body; Working pressures up to 300 psig (20.6 bar); 1/4, 3/8, and 1/2 in.; 10 and 12 mm end connections

Вычислите расход для правильного подбора ЗРА
Воспользуйтесь нашим калькулятором коэффициента расхода (Cv), чтобы подобрать клапан правильного размера в соответствии с вашими потребностями.
