Faltenbalgventil, Edelstahl, mit Körperdichtscheibe, 1/2 Zoll Swagelok Rohrverschraubung, kugelförmige Spindelspitze
型番: SS-8BG
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
仕様
Gerade, Manuelle BetätigungIsolieren Sie Systemflüssigkeiten und erzielen Sie zuverlässige, leckfreie Leistung mit den Faltenbalgventilen von Swagelok mit packungslosem Design und geschweißter Dichtung. Faltenbalgventile eignen sich ideal für Anwendungen, in denen die Abdichtung zur Atmosphäre wichtig ist, und wir bieten mehrere Optionen für allgemeinen und hochreinen Einsatz. ログインまたは登録して価格を見る ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. 警告: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants. |
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
警告: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants.
カタログ
Gerade, Manuelle Betätigung
Druckraten bis 68,9 bar (1000 psig); Temperaturen bis 482°C (900°F); Endanschlüsse 6, 10 und 12 mm; 1/4, 3/8, 1/2 und 3/4 Zoll; Werkstoffe Messing, Edelstahl und Alloy 400.
In diesem Dokument sind die von Swagelok angewendeten Richtlinien für die Herstellung von Edelstahlprodukten, für Photovoltaik- (PV) Anwendungen vorgesehen sind, festgelegt. Dieses Dokument muss zusammen mit Produktkatalogen, technischen Merkblättern und Berichten für vollständige Produktinformationen verwendet werden. Die Anwendung dieses Dokuments ist auf medienberührte Systemkomponenten begrenzt.
The Swagelok® 3-valve manifold uses bellows-sealed valves for systems with difficult fluid containment requirements. Features: 316 stainless steel bodies, Swagelok B or U series bellows valves for general or severe service, pipe fitting, flange, and Swagelok tube fitting end connections
Features: Limits access to manually actuated valves;Lockout accessory enables compliance with OSHA Lockout/Tagout, Standard 29 CFR Part 1910.147, Control of Hazardous Energy Bright safety orange color promotes high visibility. Other colors are available.
Bellows Kits, Stem Tip/Adapter Kits, bellows/Stem/Stem Tip/Adapter Kits, Gasket Kits for Swagelok® bellows-sealed valves
仕様

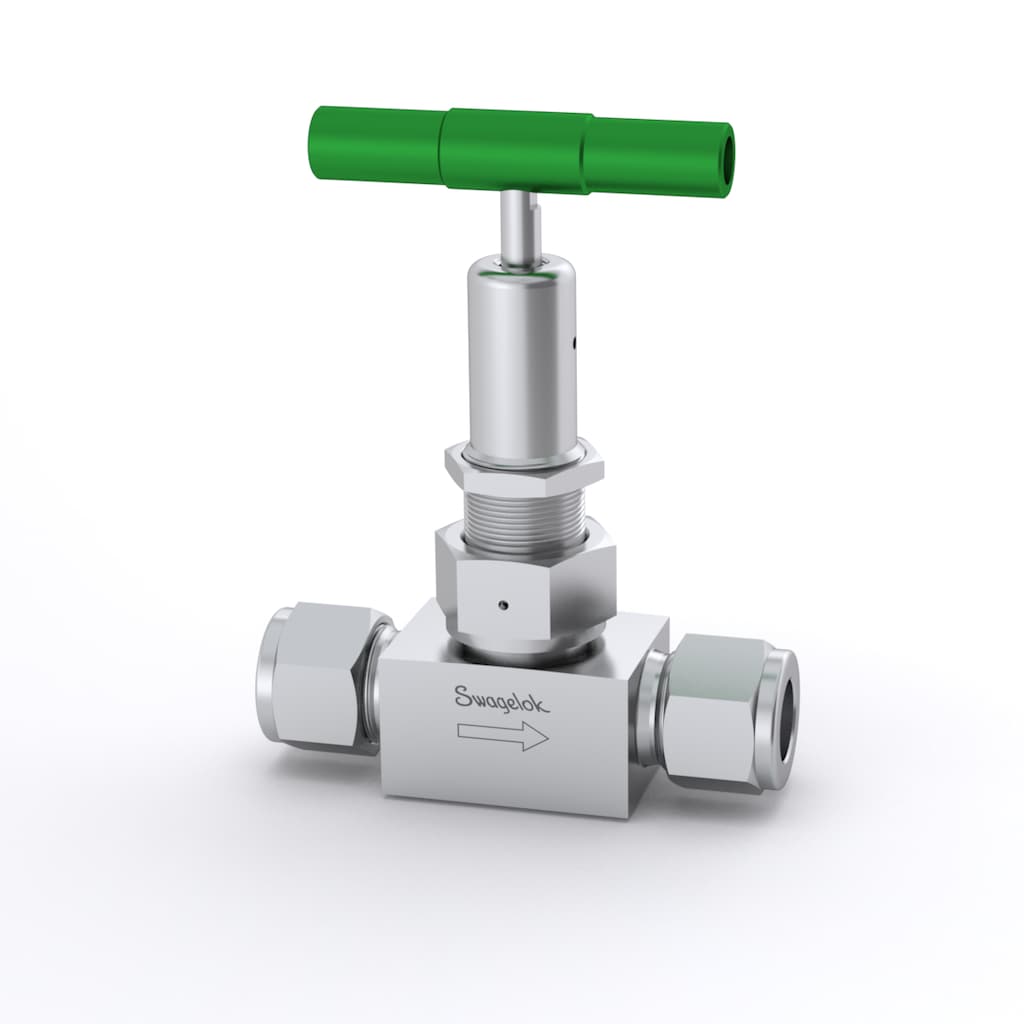

SS-8BG — Faltenbalgventil, Edelstahl, mit Körperdichtscheibe, 1/2 Zoll Swagelok Rohrverschraubung, kugelförmige Spindelspitze
属性 | 値 |
---|---|
Steuerkopfart | Manuel |
Faltenbalg-Werkstoff | Acier inoxydable 321 |
Körperwerkstoff | Acier inoxydable 316 |
Körperdichtung | Joint avec siège métallique |
Reinigungsverfahren | Nettoyage et conditionnement standard (SC-10) |
Größe Verbindung 1 | 1/2 po |
Typ Verbindung 1 | Raccord Swagelok® pour tubes |
Größe Verbindung 2 | 1/2 po |
Typ Verbindung 2 | Raccord Swagelok® pour tubes |
Maximaler Cv | 1.2 |
Ventilkörper | Droite (2 voies) |
Dichtung | Joint en acier inoxydable 316 revêtu argent |
Grifffarbe | Vert |
Griffart | En T, aluminium |
Maximale Temperatur °F (°C) | 600 (315) |
Max. Temperatur-Druckeinsatzbereich | 600°F À 400 PSIG / 315°C À 27,5 BAR |
Minimum-Temperatur °F (°C) | -20 (-28) |
Raumtemperatur-Druckeinsatzbereich | 1000 PSIG À 100°F / 68,9 BAR À 37°C |
Service-Klasse | Général |
Spindelspitzenwerkstoff | Alliage à base de cobalt |
Spindeltyp | Sphérique |
Oberflächengüte | Standard |
Prüfung | Test de fuite à l'hélium selon SCS-00020 |
eClass (4.1) | 37010201 |
eClass (5.1.4) | 37010201 |
eClass (6.0) | 37010201 |
eClass (6.1) | 37010201 |
eClass (10.1) | 37010201 |
UNSPSC (4.03) | 40141600 |
UNSPSC (10.0) | 40141609 |
UNSPSC (11.0501) | 40141609 |
UNSPSC (13.0601) | 40141609 |
UNSPSC (15.1) | 40141609 |
UNSPSC (17.1001) | 40183101 |
資料
類似製品
型番
|
ボディ材質
|
コネクション1 サイズ
|
コネクション1 タイプ
|
コネクション2 サイズ
|
コネクション2 タイプ
|
|
---|---|---|---|---|---|---|
SS-12BG-MM | Edelstahl 316 | 12 mm | Swagelok® Rohrverschraubung | 12 mm | Swagelok® Rohrverschraubung | 製品を見る |
SS-2H | Edelstahl 316 | 1/8 Zoll | Swagelok® Rohrverschraubung | 1/8 Zoll | - | 製品を見る |
SS-2H2 | Edelstahl 316 | 1/8 Zoll | NPT Außengewinde | 1/8 Zoll | NPT Außengewinde | 製品を見る |
SS-4BG | Edelstahl 316 | 1/4 Zoll | Swagelok® Rohrverschraubung | 1/4 Zoll | Swagelok® Rohrverschraubung | 製品を見る |
SS-4BG-TW | Edelstahl 316 | 1/4 Zoll | Muffenschweißende | 3/8 Zoll | Rohrstumpfschweißenden | 製品を見る |
SS-4BG-V51 | Edelstahl 316 | 1/4 Zoll | VCR-Fitting (Metalldichtung) mit Innengewinde | 1/4 Zoll | VCR-Fitting (Metalldichtung) mit Innengewinde | 製品を見る |
SS-4BK | Edelstahl 316 | 1/4 Zoll | Swagelok® Rohrverschraubung | 1/4 Zoll | Swagelok® Rohrverschraubung | 製品を見る |
SS-4BKT | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | 1/4 po | Raccord Swagelok® pour tubes | 製品を見る |
SS-4BKT-V51 | Acier inoxydable 316 | 1/4 po | VCR femelle (joint métallique) | 1/4 po | VCR femelle (joint métallique) | 製品を見る |
SS-4BK-TW | Acier inoxydable 316 | 1/4 po | Tube à souder par emboîtement | 3/8 po | Tube à souder bout à bout | 製品を見る |
SS-4BK-V51 | Acier inoxydable 316 | 1/4 po | VCR femelle (joint métallique) | 1/4 po | VCR femelle (joint métallique) | 製品を見る |
SS-4BK-VCR | Acier inoxydable 316 | 1/4 po | Raccord à étanchéité de surface (joint métallique) VCR mâle | 1/4 po | Raccord à étanchéité de surface (joint métallique) VCR mâle | 製品を見る |
SS-4BRG | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | 1/4 po | Raccord Swagelok® pour tubes | 製品を見る |
SS-4BW | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | 1/4 po | Raccord Swagelok® pour tubes | 製品を見る |
SS-4BW-V51 | Acier inoxydable 316 | 1/4 po | VCR femelle (joint métallique) | 1/4 po | VCR femelle (joint métallique) | 製品を見る |
SS-4H | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | 1/4 po | Raccord Swagelok® pour tubes | 製品を見る |
SS-4H2 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | 1/4 po | Filetage NPT mâle | 製品を見る |
SS-4H4 | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | 1/4 po | Filetage NPT femelle | 製品を見る |
SS-4H-SC11 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | 1/4 po | - | 製品を見る |
SS-4H-TH3 | Acier inoxydable 316 | 1/4 po | Embout de tube | 1/4 po | Embout de tube | 製品を見る |
SS-4H-TW | Acier inoxydable 316 | 1/4 po | Tube à souder par emboîtement | 3/8 po | Tube à souder bout à bout | 製品を見る |
SS-4H-V13 | Acier inoxydable 316 | 1/4 po | Raccord VCR femelle (joint métallique) à étanchéité de surface, soudé par emboîtement | 1/4 po | Raccord VCR femelle (joint métallique) à étanchéité de surface, soudé par emboîtement | 製品を見る |
SS-4H-V51 | Acier inoxydable 316 | 1/4 po | Raccord à étanchéité de surface avec joint métallique VCR® femelle soudé bout à bout | 1/4 po | Raccord à étanchéité de surface avec joint métallique VCR® femelle soudé bout à bout | 製品を見る |
SS-4H-VCR | Acier inoxydable 316 | 1/4 po | Raccord à étanchéité de surface (joint métallique) VCR mâle | 1/4 po | Raccord à étanchéité de surface (joint métallique) VCR mâle | 製品を見る |
SS-6BG | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | 3/8 po | Raccord Swagelok® pour tubes | 製品を見る |
SS-6BG-MM | Acier inoxydable 316 | 6 mm | Raccord Swagelok® pour tubes | 6 mm | Raccord Swagelok® pour tubes | 製品を見る |
SS-6BK | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | 3/8 po | Raccord Swagelok® pour tubes | 製品を見る |
SS-6BW | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | 3/8 po | Raccord Swagelok® pour tubes | 製品を見る |
SS-6H-MM | Acier inoxydable 316 | 6 mm | Raccord Swagelok® pour tubes | 6 mm | Raccord Swagelok® pour tubes | 製品を見る |
SS-8BG-TW | Acier inoxydable 316 | 1/2 po | Tube à souder par emboîtement | 3/4 po | Tube à souder par emboîtement | 製品を見る |
SS-8BG-VCR | Acier inoxydable 316 | 1/2 po | Raccord à étanchéité de surface (joint métallique) VCR mâle | 1/2 po | Raccord à étanchéité de surface (joint métallique) VCR mâle | 製品を見る |
SS-8BK | Acier inoxydable 316 | 1/2 po | Raccord Swagelok® pour tubes | 1/2 po | Raccord Swagelok® pour tubes | 製品を見る |
SS-8BK-VCR | Acier inoxydable 316 | 1/2 po | Raccord à étanchéité de surface (joint métallique) VCR mâle | 1/2 po | Raccord à étanchéité de surface (joint métallique) VCR mâle | 製品を見る |
