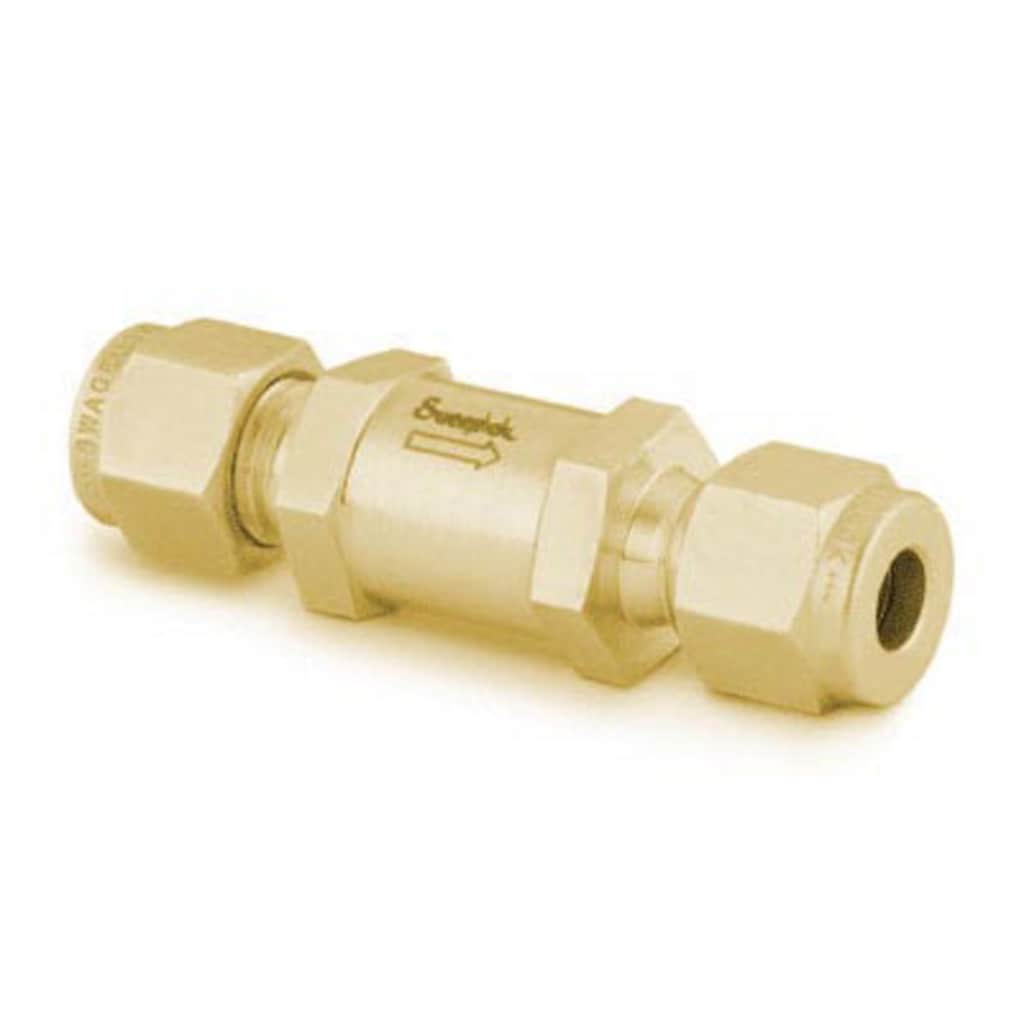

Brass Poppet Check Valve, Fixed Pressure, 3/8 in. Swagelok Tube Fitting, 1/3 psig (0.03 bar)
Part #: B-6C-1/3
View Catalog
Log in or Register to view price
Catalogs
Presión Fija
Las válvulas antirretorno controlan el retorno del caudal con un amplio rango de presiones de disparo en aplicaciones de servicio general y de alta pureza.
Clapets anti-retour Séries C CA CH CP et CPA
Pressions de service jusqu’à 413 bar (6000 psig); Pressions de tarage réglables ou fixes; Divers raccordements d’extrémité; Matériaux en acier inoxydable 316 et laiton
Guide d’identification des filetages et raccords
Caractéristiques : Procédure d’identification étape par étape des filetages et raccords.
Special Cleaning and Packaging SC-11, Specification SCS-00011 Revision F
This document specifies guidelines used by Swagelok® Company and its suppliers to ensure compliance with product cleanliness requirements as stated in ASTM G93 Level C. Application of the document is limited to wetted system components. This document must be used in conjunction with product catalogs, technical bulletins, and reports.
Standard Cleaning and Packaging SC-10 Specification SCS-00010 Revision B
Swagelok® Specification SC-10 defines the cleaning, lubrication, assembly, and packaging requirements for standard Swagelok products and describes practices used to meet these requirements.
Valve Sizing Technical Bulletin
Valve sizing often is described by the nominal size of the end connections, but a more important measure is the flow that the valve can provide. And determining flow through a valve can be simple.
Instructions de montage des raccords pour tubes Swagelok de diamètre inférieur ou égal à 25 mm
Pages 1-3. Features: installation in high-pressure applications and high safety-factor systems.
Swagelok Tube Fittings Over 1 inch or 25 mm
Procedure for installing Swagelok tube fittings in sizes over 1 inch or 25 mm.
Specifications
B-6C-1/3 — Brass Poppet Check Valve, Fixed Pressure, 3/8 in. Swagelok Tube Fitting, 1/3 psig (0.03 bar)
| Attribute | Value |
|---|---|
| Material del Cuerpo | Латунь |
| Proceso de Limpieza | Стандартная инструкция по очистке и упаковке (SC-10) |
| Tamaño conexión 1 | 3/8 дюйма |
| Tipo de conexión 1 | Трубный обжимной фитинг Swagelok® |
| Tamaño conexión 2 | 3/8 дюйма |
| Tipo de conexión 2 | Трубный обжимной фитинг Swagelok® |
| Presión de Disparo | 1/3 фунта на кв. дюйм (0,03 бара; 0,003 МПа) |
| Cv Máximo | 1.47 |
| Material de la junta tórica | Из материала Buna N |
| Rango de presión a temperatura ambiente | 2200 фунтов на кв. дюйм, ман. при 100 °F / 151 бар при 37 °C |
| Acabado superficial | Обычная |
| Pruebas | Без дополнительных испытаний |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27300601 |
| eClass (6.1) | 27300601 |
| eClass (10.1) | 27300601 |
| UNSPSC (4.03) | 40141601 |
| UNSPSC (10.0) | 40141641 |
| UNSPSC (11.0501) | 40141641 |
| UNSPSC (13.0601) | 40141641 |
| UNSPSC (15.1) | 40141641 |
| UNSPSC (17.1001) | 40183101 |
Resources
Drawings
2D
Two-dimensional renderings are available for this product. Download the CAD file.
3D
Three-dimensional renderings are available for this product. Download the CAD file.
Sales Drawing
Sales drawings are available for this product. Download the files.
