316Lステンレス鋼製高純度用逆止弁、1/4 インチ・サイズSwagelokチューブ継手、SC-11仕様
Part #: 6L-CW4S4
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specifications
Presión FijaLas válvulas antirretorno controlan el retorno del caudal con un amplio rango de presiones de disparo en aplicaciones de servicio general y de alta pureza. Log in or Register to view price ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Warning: スウェージロック製品、または工業設計規格に準拠していない部品（Swagelokチューブ継手エンド・コネクションを含む）は、他社製品との混用や互換は絶対に行わないでください。
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warning: スウェージロック製品、または工業設計規格に準拠していない部品（Swagelokチューブ継手エンド・コネクションを含む）は、他社製品との混用や互換は絶対に行わないでください。
316Lステンレス鋼製高純度用逆止弁、1/4 インチ・サイズSwagelokチューブ継手、SC-11仕様
Log in or Register to view price
Catalogs
Presión Fija
완전 용접 설계로 시스템 유체의 밀폐를 신뢰할 수 있습니다.; 2 psig (0.14 bar) 정도의 차압이 발생하면 정방향 흐름이 시작됩니다.; 역압이 2 psig (0.14 bar) 미만에서 밸브가 닫힙니다.; 순도가 높은 재질인 316L SS를 몸체로 사용합니다.; 표준 또는 고순도용 표면 조도를 선택할 수 있습니다.; Swagelok® 초고순도 공정 사양 (SC-01)에 따라 세정 처리가 가능합니다.; 튜브 맞대기 용접, 암나사형 VCR® 피팅, 일체형 수나사형 VCR 피팅, 회전식 수나사형 VCR 피팅 및 Swagelok 튜브 피팅 등의 연결 방식을 제공합니다.
Features: Step-by-step identification procedure for threads and end connections.
This document specifies guidelines used by Swagelok Company for producing stainless steel products intended for photovoltaic (PV) applications.
The following precautions should be taken when welding a CW Series Check Valve with tube extensions or butt weld ends into a system.
Procedure for installing Swagelok tube fittings in sizes over 1 inch or 25 mm.
Specifications

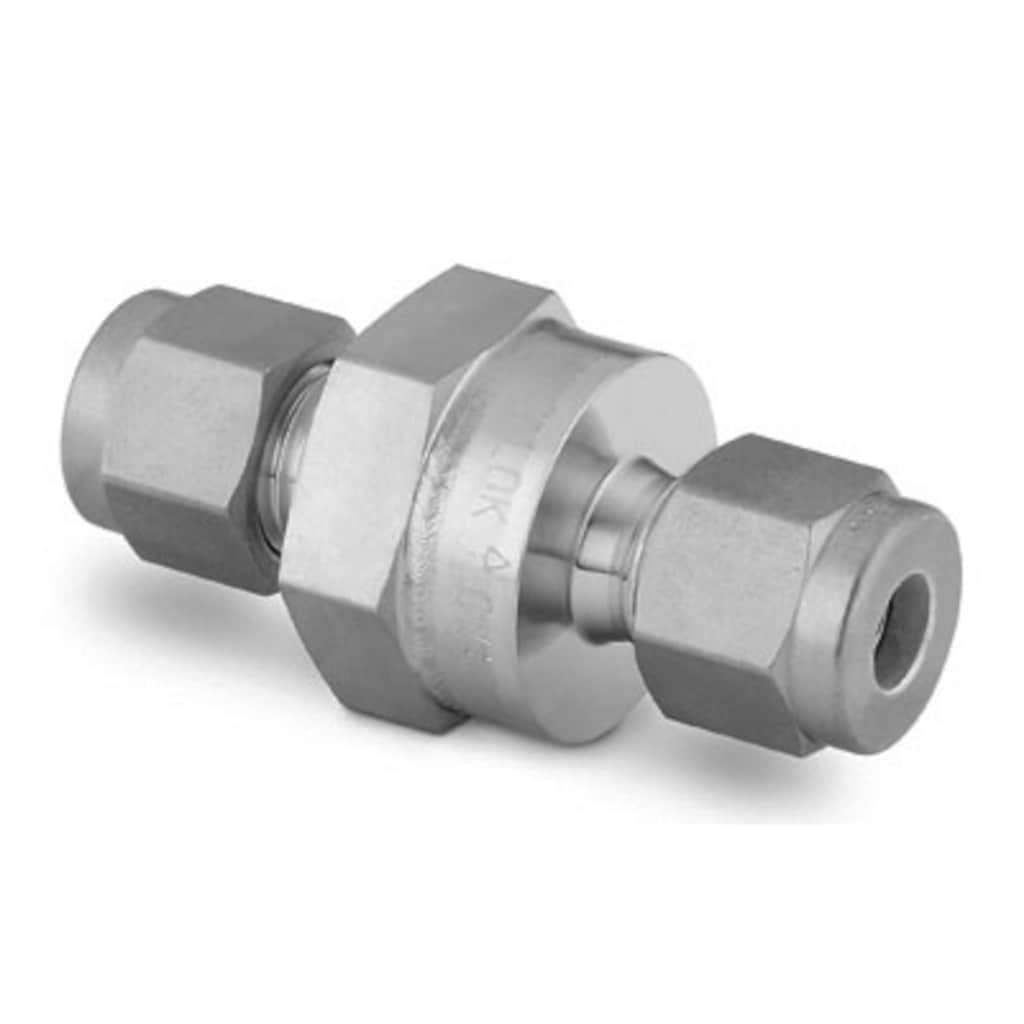

6L-CW4S4 — 316Lステンレス鋼製高純度用逆止弁、1/4 インチ・サイズSwagelokチューブ継手、SC-11仕様
| Attribute | Value |
|---|---|
| Material del Cuerpo | 316Lステンレス鋼 |
| Proceso de Limpieza | 特別なクリーニング／パッケージング（Swagelok SC-11仕様） |
| Tamaño conexión 1 | 1/4 インチ |
| Tipo de conexión 1 | Swagelok®チューブ継手 |
| Tamaño conexión 2 | 1/4 インチ |
| Tipo de conexión 2 | Swagelok®チューブ継手 |
| Presión de Disparo | 2 psi（0.14 bar、0.014 MPa） |
| Cv Máximo | 0.55 |
| Rango de presión a temperatura ambiente | 3000 PSIG @ 100°F／206 BAR @ 37℃ |
| Material del Cierre | フルオロカーボンFKM |
| Acabado superficial | Ra 20 µin |
| Pruebas | オプションのテストなし |
| Rugosidad Superficie Húmeda | 平均値で20 μin.（0.51 μm）の機械加工仕上げ |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27292001 |
| eClass (6.1) | 27292001 |
| eClass (10.1) | 27292001 |
| UNSPSC (4.03) | 40141609 |
| UNSPSC (10.0) | 40141609 |
| UNSPSC (11.0501) | 40141609 |
| UNSPSC (13.0601) | 40141609 |
| UNSPSC (15.1) | 40141609 |
| UNSPSC (17.1001) | 40183101 |
