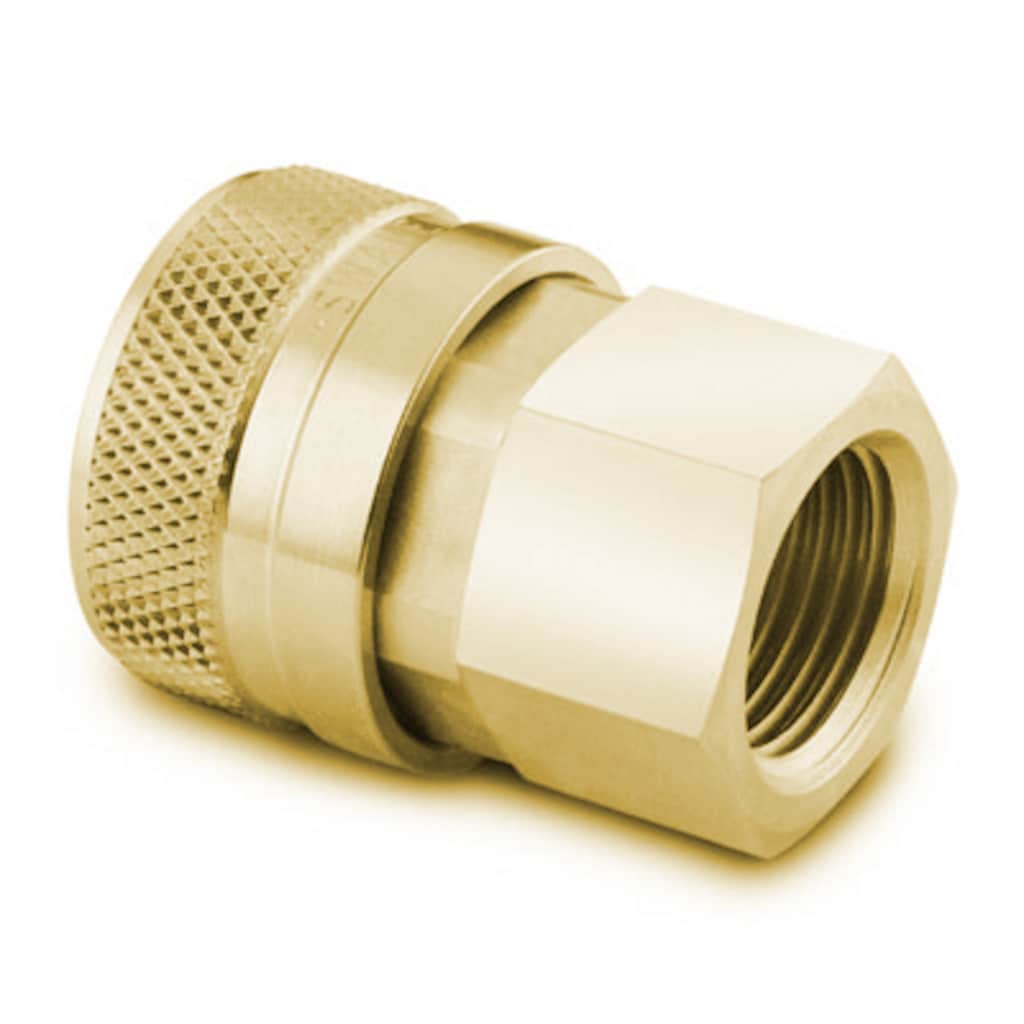

Schnellkupplungskörper mit vollem Durchfluss, Messing, Cv 23,6, 3/4 Zoll NPT-Innengewinde
Part #: B-QF12-B-12PF
|
||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specifications
BasesCaudal ininterrumpido y fácil mantenimiento con los enchufes rápidos Swagelok de gran caudal, para sus sistemas de transferencia, drenaje y venteo. Log in or Register to view price ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Warning: No mezcle ni intercambie productos o componentes Swagelok no regulados por normativas de diseño industrial, incluyendo las conexiones finales de los racores Swagelok, con los de otros fabricantes.
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warning: No mezcle ni intercambie productos o componentes Swagelok no regulados por normativas de diseño industrial, incluyendo las conexiones finales de los racores Swagelok, con los de otros fabricantes.
Schnellkupplungskörper mit vollem Durchfluss, Messing, Cv 23,6, 3/4 Zoll NPT-Innengewinde
Log in or Register to view price
Catalogs
Bases
Не требуют закручивания, вращения или использования гаечного ключа; Модели с односторонним и двухсторонним отсечением, и полнопроходные модели
Features: Step-by-step identification procedure for threads and end connections.
To Couple: Align stem with body. Pull body sleeve back.
Specifications
B-QF12-B-12PF — Schnellkupplungskörper mit vollem Durchfluss, Messing, Cv 23,6, 3/4 Zoll NPT-Innengewinde
| Attribute | Value |
|---|---|
| Material del Cuerpo | Latón |
| Proceso de Limpieza | Limpieza y Embalaje estándar (SC-10) |
| Tamaño conexión 1 | 3/4 pulg. |
| Tipo de conexión 1 | NPT hembra |
| Cv Máximo | 23,6 - Acoplada a una espiga |
| Lubricante | Dow Corning 111 |
| Material de la junta tórica | Buna-N (Estándar) |
| Rango de presión acoplado a máx. temp. | 6,8 BAR @ 121°C / 100 PSIG @ 250°F |
| Rango de presión acoplado a temp. ambiente | 137 BAR @ 21°C / 2000 PSIG @ 70°F |
| Serie | QF12 |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020590 |
| eClass (6.1) | 37020590 |
| eClass (10.1) | 37020590 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
