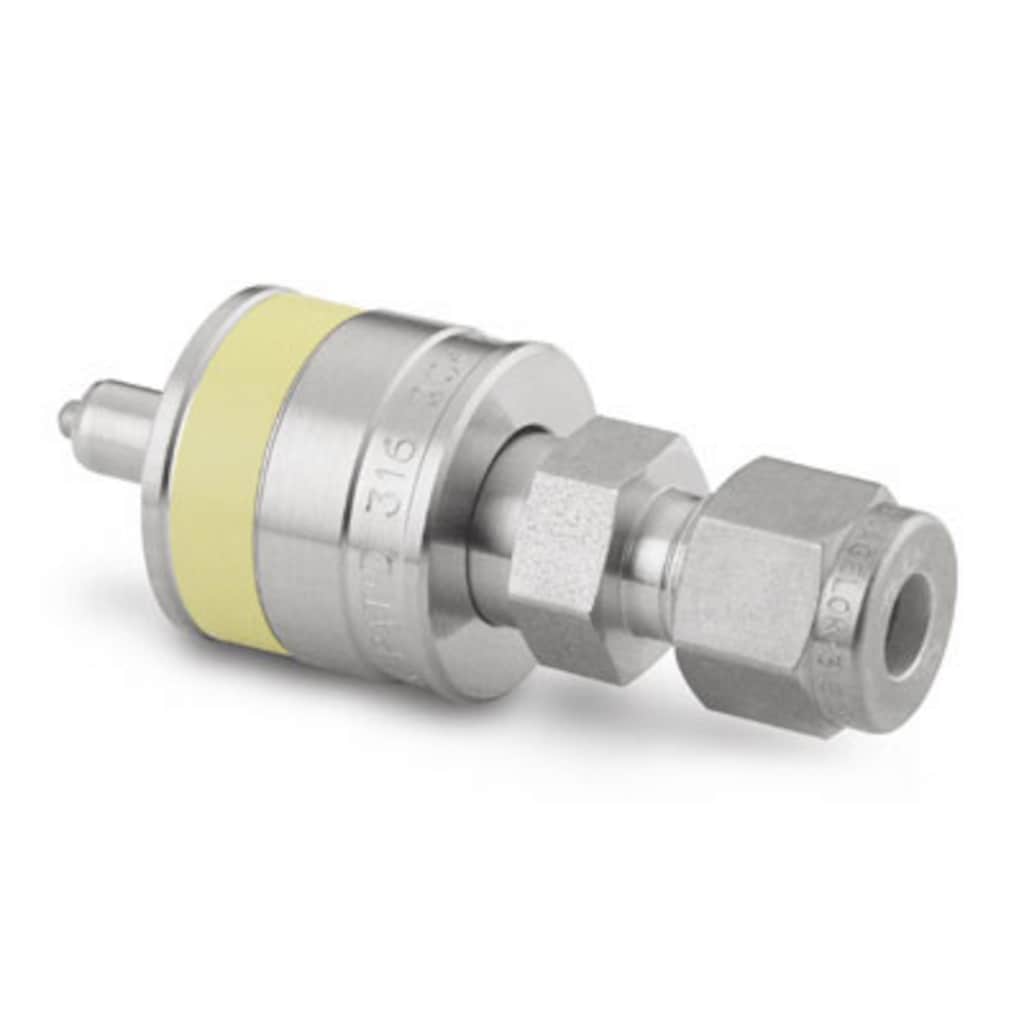

Espiga con válvula enchufe rápido para instrumentación de acero inox., Cv 0,2, 1/4 pulg. Swagelok, Código amarillo
Part #: SS-QC4-D-400K4
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specifications
DESO 스템스웨즈락 퀵 코넥트는 연결을 자주 하고, 공기 유입과 유체 유출을 최소화해야 하는 애플리케이션에서 빠르고 쉽게 연결할 수 있게 해 줍니다. Log in or Register to view price ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Warning: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants.
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warning: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants.
Espiga con válvula enchufe rápido para instrumentación de acero inox., Cv 0,2, 1/4 pulg. Swagelok, Código amarillo
Log in or Register to view price
Catalogs
DESO 스템
QC, QF, QM, 및 QTM 시리즈■ 비틀림, 회전 및 렌치 작업이 필요 없음■ 단일 차단용, 양단 차단용 및 대용량용 모델
Features: Step-by-step identification procedure for threads and end connections.
Warning: System pressure must not exceed 250 psig (17.2 bar) at 70°F (20°C) when coupling and uncoupling this product. When uncoupling single-end shutoff quick-connects, system pressure on stem side will vent to atmosphere.
Specifications
SS-QC4-D-400K4 — Espiga con válvula enchufe rápido para instrumentación de acero inox., Cv 0,2, 1/4 pulg. Swagelok, Código amarillo
| Attribute | Value |
|---|---|
| 몸체 재질 | Acier inoxydable 316 |
| 세정 공정 | Nettoyage et conditionnement standard (SC-10) |
| 연결구 1 크기 | 1/4 po |
| 연결구 1 종류 | Raccord Swagelok® pour tubes |
| CV 최대 | 0,2 en association avec un corps standard ou à écoulement inversé |
| 윤활제 | Dow Corning 111 |
| O-링 재질 | Élastomère fluorocarboné FKM |
| 최대 온도에서의 체결된 압력 등급 | 250 PSIG À 400°F / 17,2 BAR À 204°C |
| 실온에서의 체결된 압력 등급 | 3000 PSIG À 70°F / 206 BAR À 21°C |
| 실온에서의 비체결된 압력 등급 | 250 PSIG À 70°F / 17,2 BAR À 21°C |
| 압력/온도 등급(체결 및 비체결) | 250 PSIG À 70°F / 17,2 BAR À 21°C |
| 시리즈 | QC4 |
| 특수 슬리브 | Manchon à clé jaune |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| eClass (10.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
