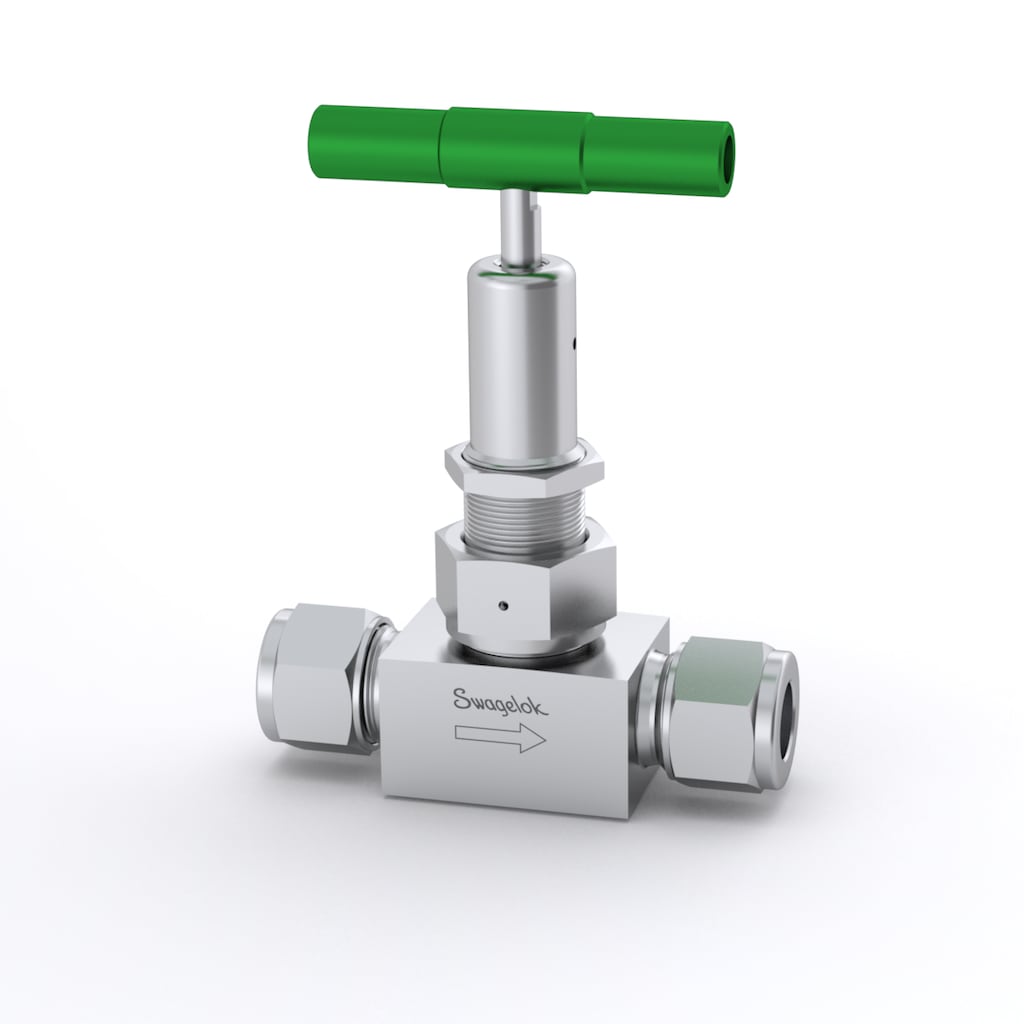

Válvula de fuelle de acero inox., cierre del fuelle con junta, obturador esférico, 12 mm Swagelok
Referencia #: SS-12BG-MM
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Especificaciones
Straight Pattern, Manual ActuationIsolate system fluids and achieve reliable, leak-tight performance with Swagelok bellows valves, which use a packless design and a welded seal. Bellows valves are ideal for applications where the seal to atmosphere is critical, and we offer multiple options for general and high-purity service. Inicie la sesión o regístrese para ver los precios ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Advertencia: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants. |
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Advertencia: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants.
Válvula de fuelle de acero inox., cierre del fuelle con junta, obturador esférico, 12 mm Swagelok
Inicie la sesión o regístrese para ver los precios
Catálogos
Straight Pattern, Manual Actuation
Isolate system fluids and achieve reliable, leak-tight performance with Swagelok bellows valves, which use a packless design and a welded seal. Bellows valves are ideal for applications where the seal to atmosphere is critical, and we offer multiple options for general and high-purity service.
Druckraten bis 68,9 bar (1000 psig); Temperaturen bis 482°C (900°F); Endanschlüsse 6, 10 und 12 mm; 1/4, 3/8, 1/2 und 3/4 Zoll; Werkstoffe Messing, Edelstahl und Alloy 400.
In diesem Dokument sind die von Swagelok angewendeten Richtlinien für die Herstellung von Edelstahlprodukten, für Photovoltaik- (PV) Anwendungen vorgesehen sind, festgelegt. Dieses Dokument muss zusammen mit Produktkatalogen, technischen Merkblättern und Berichten für vollständige Produktinformationen verwendet werden. Die Anwendung dieses Dokuments ist auf medienberührte Systemkomponenten begrenzt.
The Swagelok® 3-valve manifold uses bellows-sealed valves for systems with difficult fluid containment requirements. Features: 316 stainless steel bodies, Swagelok B or U series bellows valves for general or severe service, pipe fitting, flange, and Swagelok tube fitting end connections
Features: Limits access to manually actuated valves;Lockout accessory enables compliance with OSHA Lockout/Tagout, Standard 29 CFR Part 1910.147, Control of Hazardous Energy Bright safety orange color promotes high visibility. Other colors are available.
Bellows Kits, Stem Tip/Adapter Kits, bellows/Stem/Stem Tip/Adapter Kits, Gasket Kits for Swagelok® bellows-sealed valves
Especificaciones
SS-12BG-MM — Válvula de fuelle de acero inox., cierre del fuelle con junta, obturador esférico, 12 mm Swagelok
Atributo | Valor |
---|---|
Actuator Type | Manuel |
Bellows Material | Acier inoxydable 321 |
Body Material | Acier inoxydable 316 |
Body Seal | Joint avec siège métallique |
Cleaning Process | Nettoyage et conditionnement standard (SC-10) |
Connection 1 Size | 12 mm |
Connection 1 Type | Raccord Swagelok® pour tubes |
Connection 2 Size | 12 mm |
Connection 2 Type | Raccord Swagelok® pour tubes |
CV Maximum | 1.2 |
Flow Pattern | Droite (2 voies) |
Gasket | Joint en acier inoxydable 316 revêtu argent |
Handle Color | Vert |
Handle Style | En T, aluminium |
Maximum Temperature, °F (°C) | 600 (315) |
Max Temperature Pressure Rating | 600°F À 400 PSIG / 315°C À 27,5 BAR |
Minimum Temperature, °F (°C) | -20 (-28) |
Room Temperature Pressure Rating | 1000 PSIG À 100°F / 68,9 BAR À 37°C |
Service Class | Général |
Stem Tip Material | Alliage à base de cobalt |
Stem Type | Sphérique |
Surface Finish | Standard |
Testing | Test de fuite à l'hélium selon SCS-00020 |
eClass (4.1) | 37010201 |
eClass (5.1.4) | 37010201 |
eClass (6.0) | 37010201 |
eClass (6.1) | 37010201 |
eClass (10.1) | 37010201 |
UNSPSC (4.03) | 40141600 |
UNSPSC (10.0) | 40141609 |
UNSPSC (11.0501) | 40141609 |
UNSPSC (13.0601) | 40141609 |
UNSPSC (15.1) | 40141609 |
UNSPSC (17.1001) | 40183101 |
Documentación
Planos
Hay disponibles reproducciones bidimensionales para este producto. Descargar el archivo CAD.
Hay disponibles reproducciones tridimensionales para este producto. Descargar el archivo CAD.
Hay planos dimensionales disponibles para este producto. Descargar los archivos
