Espiga sin válvula enchufe rápido de Gran caudal para instrumentación de latón, Cv 1,7, 1/4 pulg. NPT macho
Log in or Register to view price
Catalogs
Stems
Achieve unrestricted flow and easy maintenance with Swagelok full-flow quick-connects for your transfer, drain, and vent systems.
QC, QF, QM, 및 QTM 시리즈■ 비틀림, 회전 및 렌치 작업이 필요 없음■ 단일 차단용, 양단 차단용 및 대용량용 모델
Features: Step-by-step identification procedure for threads and end connections.
To Couple: Align stem with body. Pull body sleeve back.
Specifications

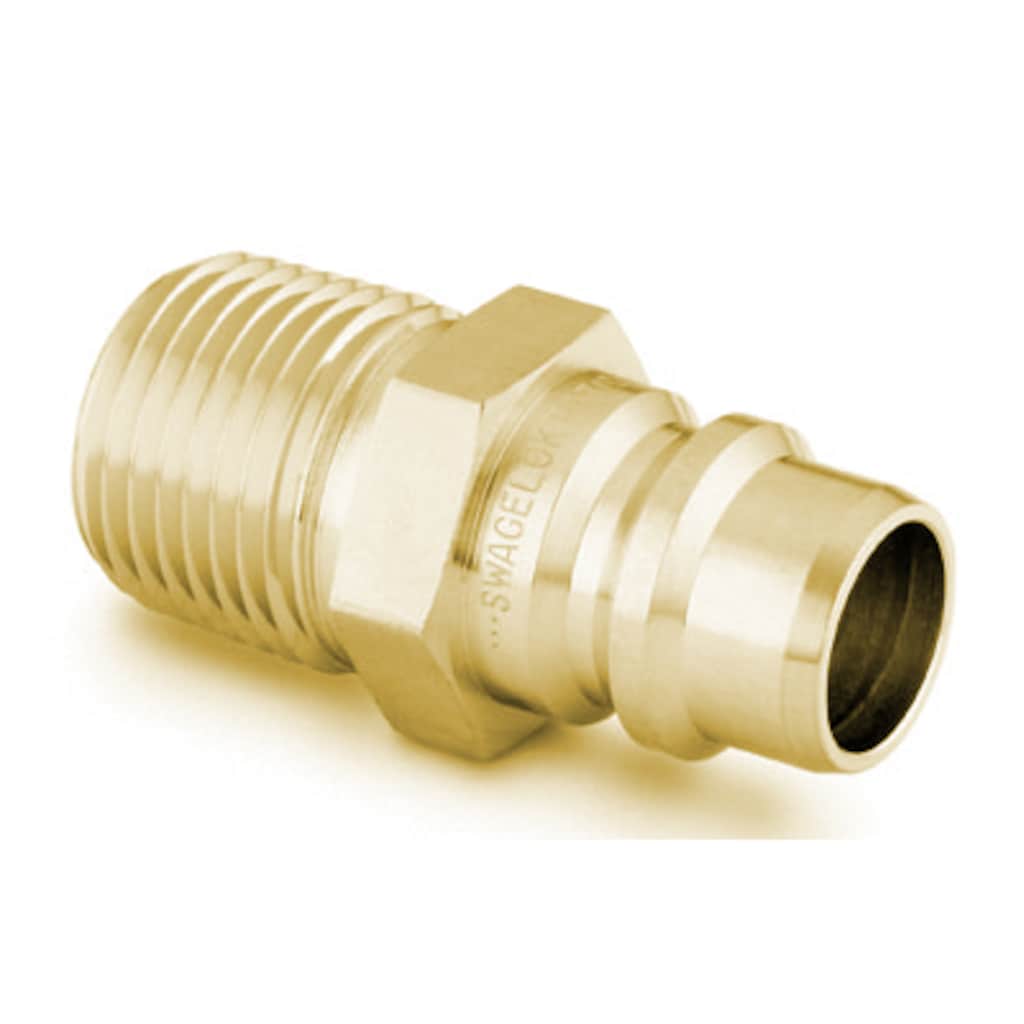

B-QF4-S-4PM — Espiga sin válvula enchufe rápido de Gran caudal para instrumentación de latón, Cv 1,7, 1/4 pulg. NPT macho
| Attribute | Value |
|---|---|
| Body Material | Latón |
| Cleaning Process | Limpieza y Embalaje estándar (SC-10) |
| Connection 1 Size | 1/4 pulg. |
| Connection 1 Type | NPT macho |
| CV Maximum | 1,7 - Acoplada a una base |
| Lubricant | Sin lubricante en ningún componente |
| O-Ring Material | Buna-N (Estándar) |
| Pressure Rating Coupled at Max Temp | 6,8 BAR @ 121°C / 100 PSIG @ 250°F |
| Pressure Rating Coupled at Room Temp | 275 BAR @ 21°C / 4000 PSIG @ 70°F |
| Series | QF4 |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020590 |
| eClass (6.1) | 37020590 |
| eClass (10.1) | 37020590 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
