Schnellkupplungskörper, Edelstahl, 1/4 Zoll Rohrverschraubung, Cv 0,2, Kodierung K5 - blau
Log in or Register to view price
Catalogs
Bodies
Make quick, easy connections with Swagelok quick connects for applications requiring frequent connections, minimal air inclusion and minimal spillage.
Kein Drehen, kein Schraubenschlüssel erforderlich; Konfigurationen einseitig absperrend, beidseitig absperrend sowie mit freiem Durchgang verfügbar
Merkmale: Systematisches Verfahren zur Identifikation von Gewinden und Endanschlüssen.
Schnellkupplungen zur Instrumentierung, Serie QC
Specifications

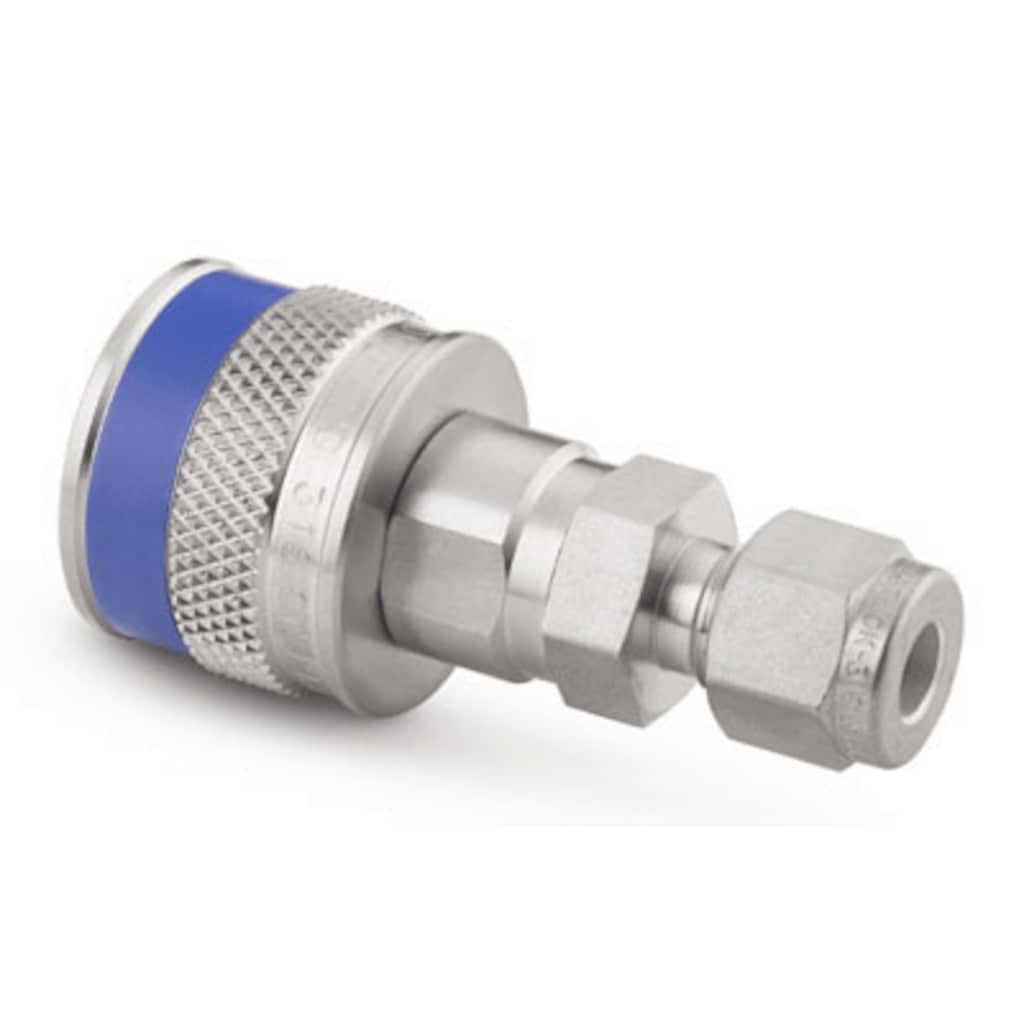

SS-QC4-B-400K5 — Schnellkupplungskörper, Edelstahl, 1/4 Zoll Rohrverschraubung, Cv 0,2, Kodierung K5 - blau
| Attribute | Value |
|---|---|
| Air Inclusion | 0.3 cm3 |
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.2 - If coupled with a DESO stem, 0.3 - If coupled with a SESO stem |
| Lubricant | Dow Corning 111 |
| O-Ring Material | Fluorocarbon FKM |
| Pressure Rating Coupled at Max Temp | 250 PSIG @ 400 °F /17.2 BAR @ 204 °C |
| Pressure Rating Coupled at Room Temp | 3000 PSIG @ 70 °F /206 BAR @ 21 °C |
| Pressure Rating Uncoupled at Room Temp | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Pressure/Temp Rating (Coupling and Uncoupling) | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Series | QC4 |
| Special Sleeve | Blue Keyed Sleeve |
| Spillage | 0.3 cm3 |
| Testing | 0.3 cm3 |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| eClass (10.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
Similar Products
|
Part #
|
Body Material
|
Connection 1 Size
|
Connection 1 Type
|
Connection 2 Size
|
Connection 2 Type
|
|
|---|---|---|---|---|---|---|
| B-QC4-B-2PF | Messing | 1/8 Zoll | NPT Innengewinde | - | - | View Product |
| B-QC4-B-2PM | Messing | 1/8 Zoll | NPT Außengewinde | - | - | View Product |
| B-QC4-B-400 | Messing | 1/4 Zoll | Swagelok® Rohrverschraubung | - | - | View Product |
| B-QC4-B-4MT | Laiton | 1/4 po | Filetage conique ISO mâle | - | - | View Product |
| B-QC4-B-4PF | Laiton | 1/4 po | Filetage NPT femelle | - | - | View Product |
| B-QC4-B-4PM | Laiton | 1/4 po | Filetage NPT mâle | - | - | View Product |
| B-QC4-B-6M0 | Laiton | 6 mm | Raccord Swagelok® pour tubes | - | - | View Product |
| B-QC6-B-4PF | Laiton | 1/4 po | Filetage NPT femelle | - | - | View Product |
| B-QC6-B-4PM | Laiton | 1/4 po | Filetage NPT mâle | - | - | View Product |
| B-QC6-B-600 | Laiton | 3/8 po | Raccord Swagelok® pour tubes | - | - | View Product |
| B-QC6-B-6PF | Laiton | 3/8 po | Filetage NPT femelle | - | - | View Product |
| B-QC6-B-6PM | Laiton | 3/8 po | Filetage NPT mâle | - | - | View Product |
| B-QC8-B-810 | Laiton | 1/2 po | Raccord Swagelok® pour tubes | - | - | View Product |
| B-QC8-B-8PF | Laiton | 1/2 po | Filetage NPT femelle | - | - | View Product |
| B-QC8-B-8PM | Laiton | 1/2 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-200 | Acier inoxydable 316 | 1/8 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC4-B-2PF | Acier inoxydable 316 | 1/8 po | Filetage NPT femelle | - | - | View Product |
| SS-QC4-B-2PM | Acier inoxydable 316 | 1/8 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-400 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC4-B-400IS | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC4-B-400K1 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC4-B-400K2 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC4-B-400K3 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC4-B-400K4 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC4-B-400-SC11 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC4-B-4FT | Acier inoxydable 316 | 1/4 po | Taraudage conique ISO | - | - | View Product |
| SS-QC4-B-4MT | Acier inoxydable 316 | 1/4 po | Filetage conique ISO mâle | - | - | View Product |
| SS-QC4-B-4PF | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | View Product |
| SS-QC4-B-4PFEP | Acier inoxydable 316 | 1/4 po | Taraudage NPT | - | - | View Product |
| SS-QC4-B-4PFJA | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | View Product |
| SS-QC4-B-4PFK1 | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | View Product |
| SS-QC4-B-4PFK2 | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | View Product |
| SS-QC4-B-4PFK3 | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | View Product |
| SS-QC4-B-4PFK4 | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | View Product |
| SS-QC4-B-4PFK5 | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | View Product |
| SS-QC4-B-4PM | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-4PMEP | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-4PMK1 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-4PMK2 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-4PMK3 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-4PMK4 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-4PMK5 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-4PMKR | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-4PM-SC11 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC4-B-6M0 | Acier inoxydable 316 | 6 mm | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC6-B-10M0 | Acier inoxydable 316 | 10 mm | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC6-B-4PF | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | View Product |
| SS-QC6-B-4PM | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | View Product |
| SS-QC6-B-600 | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC6-B-600IS | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC6-B-600K1 | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC6-B-600K2 | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC6-B-600K3 | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QC6-B-6MT | Acier inoxydable 316 | 3/8 po | Filetage conique ISO mâle | - | - | View Product |
| SS-QC6-B-6PF | Acier inoxydable 316 | 3/8 po | Filetage NPT femelle | - | - | View Product |
| SS-QC6-B-6PM | Acier inoxydable 316 | 3/8 po | Filetage NPT mâle | - | - | View Product |
| SS-QC6-B-6PMIS | Acier inoxydable 316 | 3/8 po | Filetage NPT mâle | - | - | View Product |
| SS-QC8-B-12M0 | Edelstahl 316 | 12 mm | Swagelok® Rohrverschraubung | - | - | View Product |
| SS-QC8-B-810 | Edelstahl 316 | 1/2 Zoll | Swagelok® Rohrverschraubung | - | - | View Product |
| SS-QC8-B-810K5 | Edelstahl 316 | 1/2 Zoll | Swagelok®-Rohrverschraubung | - | - | View Product |
| SS-QC8-B-8FT | Edelstahl 316 | 1/2 Zoll | Kegeliges ISO-Innengewinde | - | - | View Product |
| SS-QC8-B-8MT | Edelstahl 316 | 1/2 Zoll | Kegeliges ISO-Außengewinde | - | - | View Product |
| SS-QC8-B-8PF | Edelstahl 316 | 1/2 Zoll | NPT Innengewinde | - | - | View Product |
| SS-QC8-B-8PM | Edelstahl 316 | 1/2 Zoll | NPT Außengewinde | - | - | View Product |
