チューブ・ベンダー

スウェージロックのチューブ・ベンダー

Swagelokチューブ・ベンダーを使用すると、さまざまなアプリケーションにおいて正確かつ効率的にチューブを曲げることができます。一貫した高品質の曲げ加工が実現するため、取り付けに要する時間および労力を削減することが可能です。チューブ・ベンダーは、計装システム、プロセス・システム、制御システムでの使用に適しており、精度および信頼性を確保すると共に、システム全体のパフォーマンス向上および長寿命化に寄与します。

すべてのチューブ・ベンダーを見る

正確かつ適切にチューブを曲げることが、機能性の高いシステム設計を現実化する鍵を握っています。Swagelokチューブ・ベンダーを使用すると、曲げ加工の際にチューブが波状になったり、損傷したりしません。スウェージロックは、多種多様なニーズにお応えするべく、さまざまなチューブ・ベンダーを取り揃えています:

  • 電動式チューブ・ベンダー:チューブを自動で曲げます(使用可能なチューブ外径サイズ:1~2 インチ、25~50 mm)
  • ベンチ・トップ式チューブ・ベンダー:軽量なアルミニウム製です(使用可能なチューブ外径サイズ:1/4~1 1/4 インチ、6~30 mm)
  • ハンド・チューブ・ベンダー:ロール型ダイにより、小さい力で曲げることができ、チューブのだ円化も抑えます。持ち運びに便利です(使用可能なチューブ外径サイズ:1/8~1/2 インチ、3~12 mm)

チューブ・ベンダーは、計装システム、プロセス・システム、制御システムなど、さまざまなアプリケーションでの使用に適しており、精度および信頼性を確保すると共に、システム全体のパフォーマンス向上および長寿命化に寄与します。

専門スタッフに相談する

チューブベンダーのカテゴリ

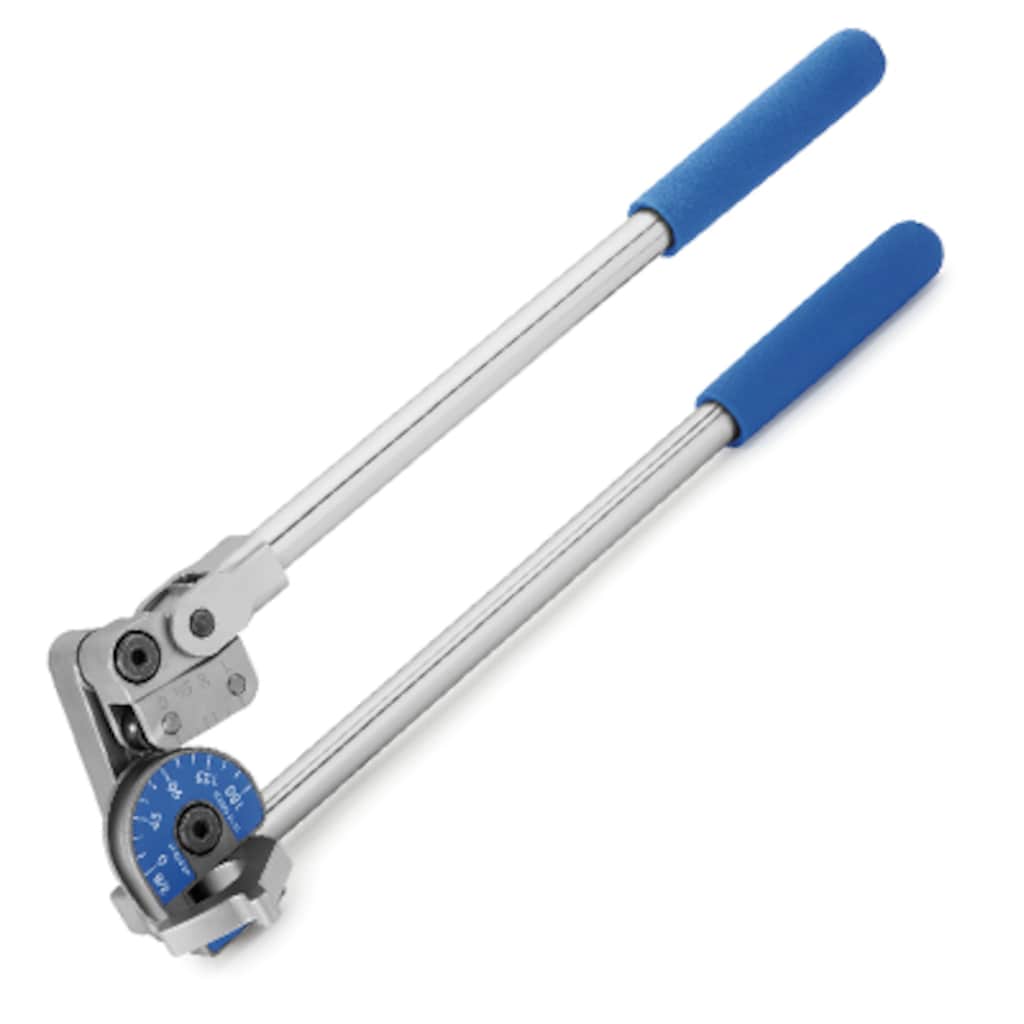

ハンド・チューブ・ベンダー

ハンド・チューブ・ベンダー

ハンド・チューブ・ベンダーは持ち運びしやすく、さまざまな外径サイズのチューブに使用することができます。

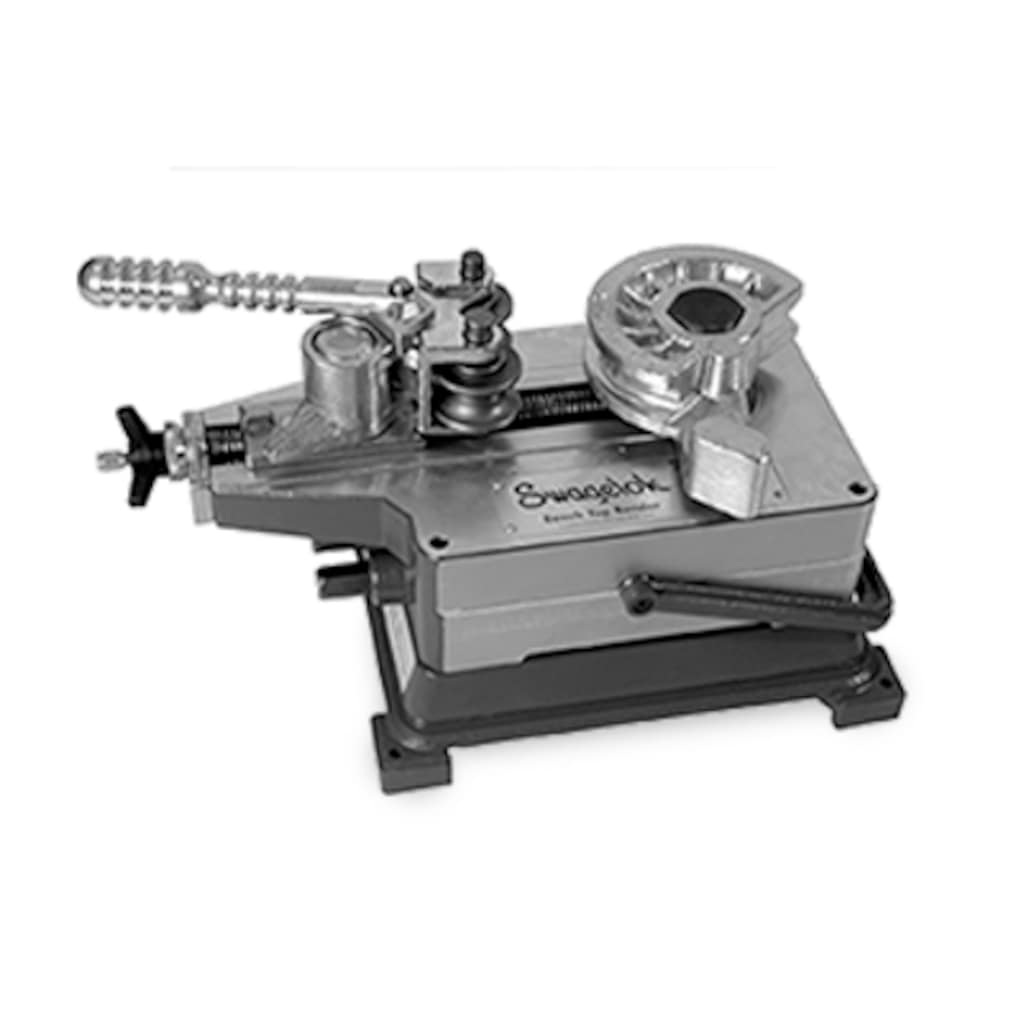

ベンチ・トップ式チューブ・ベンダー

ベンチ・トップ式チューブ・ベンダー

ベンチ・トップ式チューブ・ベンダーは軽量のアルミニウム製で、手動タイプまたは電動タイプを選ぶことができます。

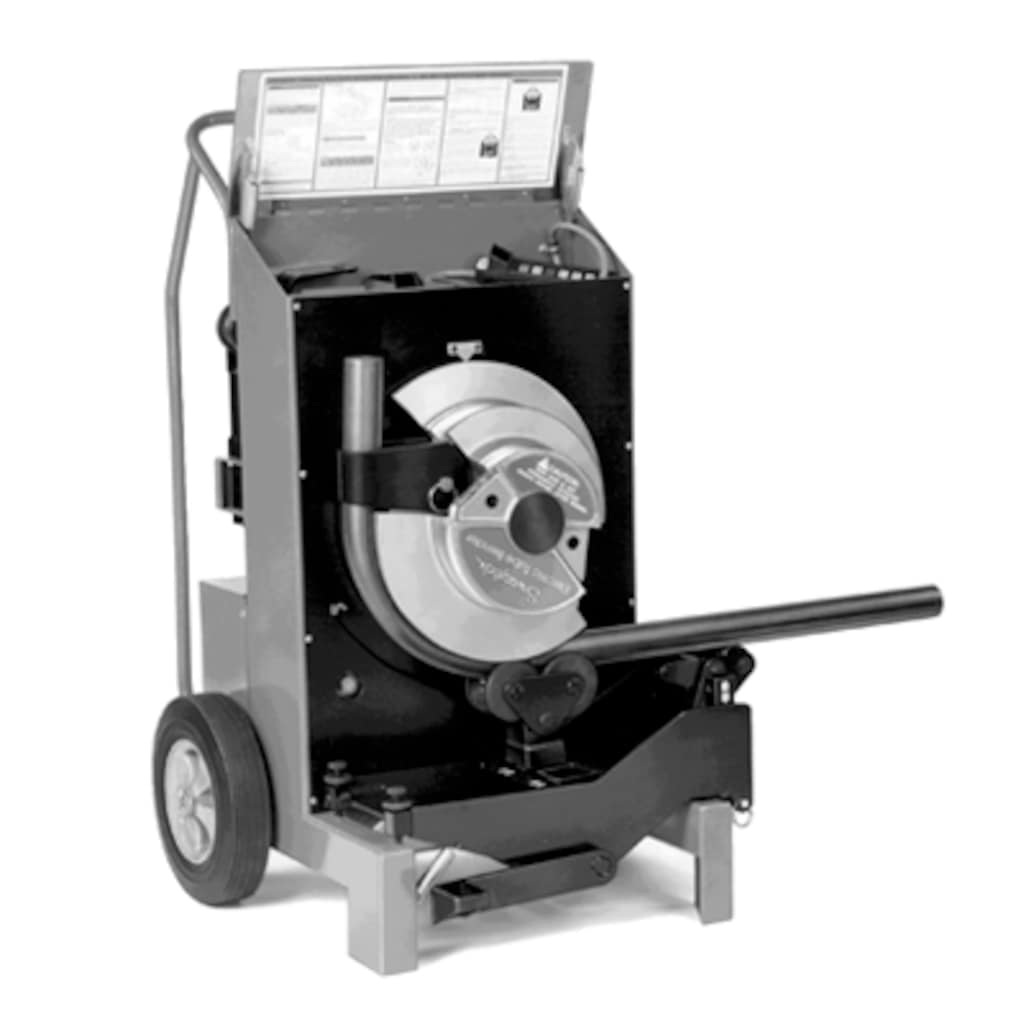

電動式チューブ・ベンダー

電動式チューブ・ベンダー

電動式チューブ・ベンダーを使用すると、電気制御によりチューブを自動で曲げることができるため、効率的かつ一貫したチューブ曲げを実現することができます。

Tube Bender Catalogs

Locate detailed product information, including materials of construction, pressure and temperature ratings, options, and accessories.

A Swagelok hand tube bender in use

How to Use a Swagelok Hand Tube Bender

Learn how to use a hand tube bender to accurately and efficiently make 90° and 180° bends in tubing. Swagelok® hand tube benders provide consistent, high-quality bends in tubing made from most materials used with Swagelok tube fittings.

See How the Hand Tube Bender Works

Swagelok Resources Curated for You

Swagelok onsite leak detection services
Essential Training in Fluid System Fundamentals

Swagelok® essentials training courses provide critical skills for developing, building, and maintaining dependable fluid systems.

Swagelok bench top tube bender
Using the Swagelok Bench Top Tube Bender

Use the Swagelok® bench top tube bender to produce accurate, repeatable, high‑quality bends in tubing made from most materials. Whether you are using small-diameter, thin-walled tubing or large-diameter, heavy-walled tubing, this video offers tips and best practices to follow for tube bending.

Swagelok hand tube bender in use
The Three T’s to Achieve an Intricate System of Tubing

Learn how the three T’s to using a hand tube bender can help you achieve an intricate system of tubing with fewer leak points and efficient flow.

Swagelok hand tube bender in use
How to Use a Swagelok Hand Tube Bender

Learn how to use a hand tube bender to accurately and efficiently make 90° and 180° bends in tubing. Swagelok® hand tube benders provide consistent, high-quality bends in tubing made from most materials used with Swagelok tube fittings.
