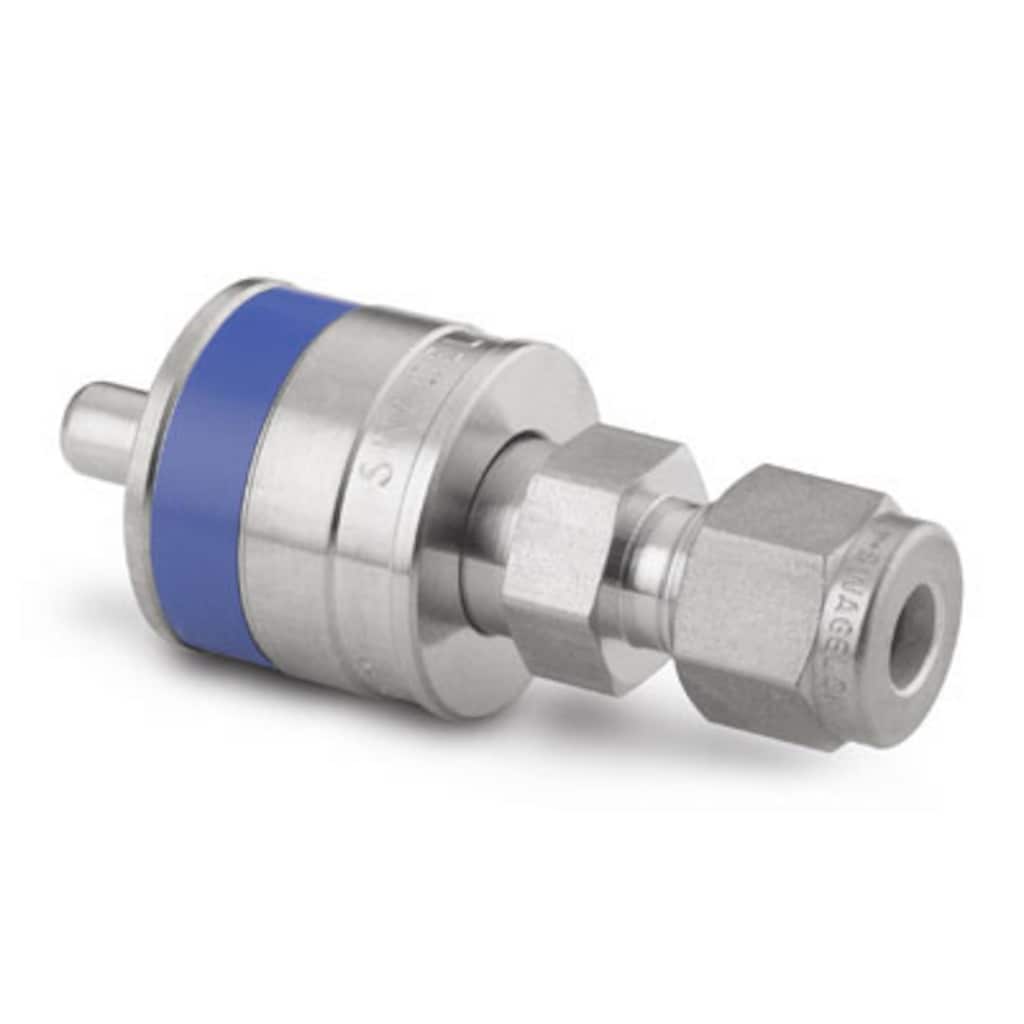

Espiga sin válvula enchufe rápido para instrumentación de acero inox., Cv 0,3, 1/4 pulg. Swagelok, Código azul

Réf. pièce : SS-QC4-S-400K5

Spécifications

Attribut Valeur
Material del Cuerpo Acero inoxidable 316
Proceso de Limpieza Limpieza y Embalaje estándar (SC-10)
Tamaño conexión 1 1/4 pulg.
Tipo de conexión 1 Racor Swagelok®
Cv Máximo 0,3 - Acoplada con una base estándar o de flujo inverso, 0,4 - Acoplada con una base de gran caudal
Lubricante Sin lubricante en ningún componente
Material de la junta tórica FKM Fluorocarbono
Rango de presión acoplado a máx. temp. 17,2 BAR @ 204°C / 250 PSIG @ 400°F
Rango de presión acoplado a temp. ambiente 206 BAR @ 21°C / 3000 PSIG @ 70°F
Serie QC4
Funda Especial Manguito de la base codificado azul
eClass (4.1) 37110302
eClass (5.1.4) 37110302
eClass (6.0) 37020500
eClass (6.1) 37020500
eClass (10.1) 37020500
UNSPSC (4.03) 31163101
UNSPSC (10.0) 27121701
UNSPSC (11.0501) 27121701
UNSPSC (13.0601) 27121701
UNSPSC (15.1) 27121701
UNSPSC (17.1001) 27121701
Espiga

Rápidas y fáciles conexiones con los enchufes rápidos Swagelok para aplicaciones con frecuentes conexiones y mínima inclusión de aire y derrame.

Контакт

Если у вас есть вопросы об этом изделии, обратитесь в местный авторизованный центр продаж и сервисного обслуживания. Его сотрудники также могут рассказать вам о сопутствующих услугах, которые помогут вам обеспечить максимальную окупаемость инвестиций.


Подбор изделий с учетом требований безопасности:

Для того чтобы проектировщик системы и пользователь могли гарантированно выполнить подбор изделий с учетом требований безопасности, необходимо принять в рассмотрение дизайн системы и полный каталог продукции. При выборе изделий следует принимать во внимание всю систему в целом, чтобы обеспечить ее безопасную и бесперебойную работу. Соблюдение назначения устройств, совместимости материалов, надлежащих рабочих параметров, правильный монтаж, эксплуатация и обслуживание являются обязанностями проектировщика системы и пользователя.

Attention: No mezcle ni intercambie productos o componentes Swagelok no regulados por normativas de diseño industrial, incluyendo las conexiones finales de los racores Swagelok, con los de otros fabricantes.

Espiga sin válvula enchufe rápido para instrumentación de acero inox., Cv 0,3, 1/4 pulg. Swagelok, Código azul

Réf. pièce : SS-QC4-S-400K5
Afficher le catalogue

Ajouter aux favoris

Catalogues

Espiga
Rápidas y fáciles conexiones con los enchufes rápidos Swagelok para aplicaciones con frecuentes conexiones y mínima inclusión de aire y derrame.

Spécifications

SS-QC4-S-400K5 — Espiga sin válvula enchufe rápido para instrumentación de acero inox., Cv 0,3, 1/4 pulg. Swagelok, Código azul

Attribut Valeur
Material del Cuerpo Acero inoxidable 316
Proceso de Limpieza Limpieza y Embalaje estándar (SC-10)
Tamaño conexión 1 1/4 pulg.
Tipo de conexión 1 Racor Swagelok®
Cv Máximo 0,3 - Acoplada con una base estándar o de flujo inverso, 0,4 - Acoplada con una base de gran caudal
Lubricante Sin lubricante en ningún componente
Material de la junta tórica FKM Fluorocarbono
Rango de presión acoplado a máx. temp. 17,2 BAR @ 204°C / 250 PSIG @ 400°F
Rango de presión acoplado a temp. ambiente 206 BAR @ 21°C / 3000 PSIG @ 70°F
Serie QC4
Funda Especial Manguito de la base codificado azul
eClass (4.1) 37110302
eClass (5.1.4) 37110302
eClass (6.0) 37020500
eClass (6.1) 37020500
eClass (10.1) 37020500
UNSPSC (4.03) 31163101
UNSPSC (10.0) 27121701
UNSPSC (11.0501) 27121701
UNSPSC (13.0601) 27121701
UNSPSC (15.1) 27121701
UNSPSC (17.1001) 27121701
