Stainless Steel Instrumentation Quick Connect Body, 0.2 Cv, 1/4 in. Male NPT, Yellow Key |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
사양
몸체스웨즈락 퀵 코넥트는 연결을 자주 하고, 공기 유입과 유체 유출을 최소화해야 하는 애플리케이션에서 빠르고 쉽게 연결할 수 있게 해 줍니다. 로그인 또는 회원가입하여 가격 보기 ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. 경고: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers. |
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
경고: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
Stainless Steel Instrumentation Quick Connect Body, 0.2 Cv, 1/4 in. Male NPT, Yellow Key
로그인 또는 회원가입하여 가격 보기
카탈로그
몸체
스웨즈락 퀵 코넥트는 연결을 자주 하고, 공기 유입과 유체 유출을 최소화해야 하는 애플리케이션에서 빠르고 쉽게 연결할 수 있게 해 줍니다.
Sin necesidad de torsión, rotación ni de apretado con llaves; Modelos con, cierre sencillo, cierre en la base y en la espiga y de gran caudal
Características: Procedimiento de identificación paso a paso de roscas y conexiones finales.
Págs. 1-2. Procedimientos recomendados para el manejo de los enchufes rápidos Swagelok: Se deben instalar filtros para proteger los enchufes rápidos. Proteja las espigas y las bases con guardapolvos o protectores cuando no estén acoplados.
사양

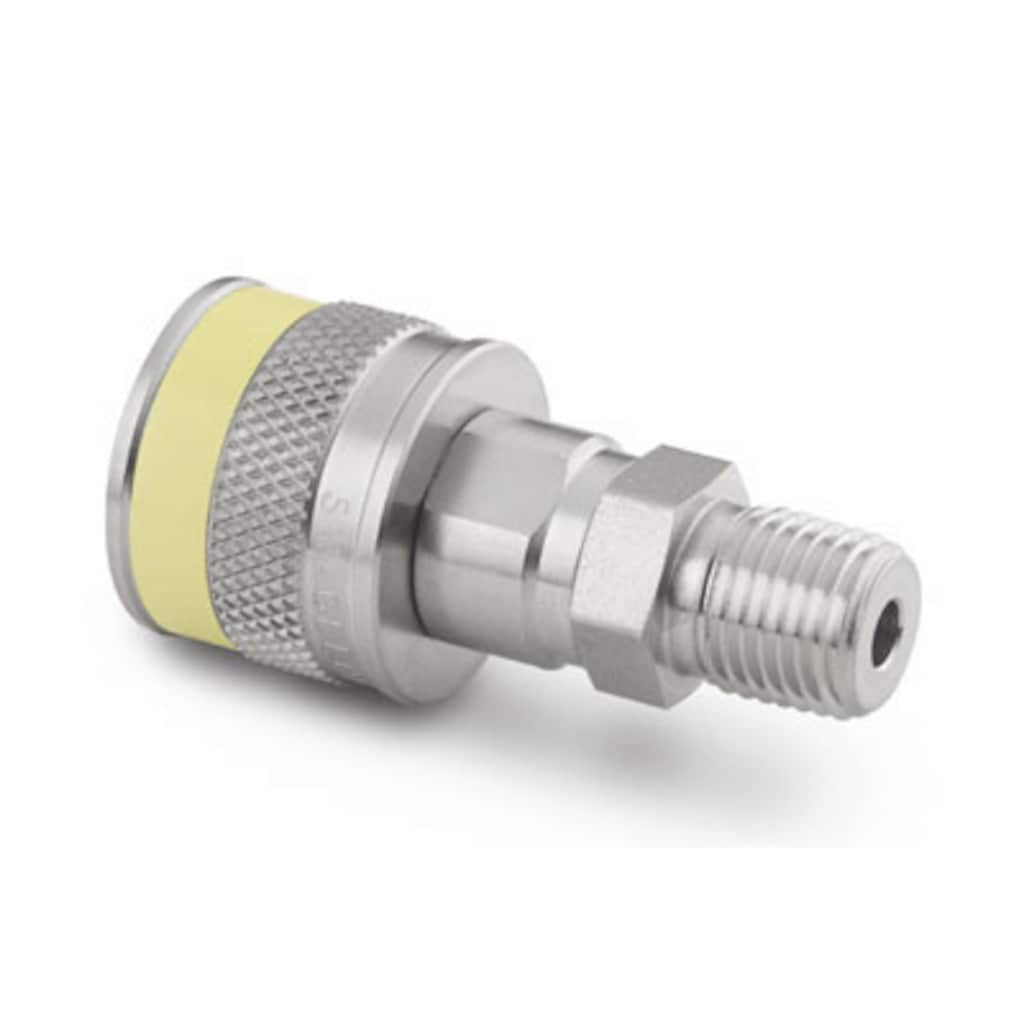

SS-QC4-B-4PMK4 — Stainless Steel Instrumentation Quick Connect Body, 0.2 Cv, 1/4 in. Male NPT, Yellow Key
속성 | 값 |
---|---|
에어 유입 | 0.3 cm3 |
몸체 재질 | 316 Stainless Steel |
세정 공정 | Standard Cleaning and Packaging (SC-10) |
연결구 1 크기 | 1/4 in. |
연결구 1 종류 | Male NPT |
CV 최대 | 0.2 - If coupled with a DESO stem, 0.3 - If coupled with a SESO stem |
윤활제 | Dow Corning 111 |
O-링 재질 | Fluorocarbon FKM |
최대 온도에서의 체결된 압력 등급 | 250 PSIG @ 400 °F /17.2 BAR @ 204 °C |
실온에서의 체결된 압력 등급 | 3000 PSIG @ 70 °F /206 BAR @ 21 °C |
실온에서의 비체결된 압력 등급 | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
압력/온도 등급(체결 및 비체결) | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
시리즈 | QC4 |
특수 슬리브 | Yellow Keyed Sleeve |
누출 | 0.3 cm3 |
테스트 | 0.3 cm3 |
eClass (4.1) | 37110302 |
eClass (5.1.4) | 37110302 |
eClass (6.0) | 37020500 |
eClass (6.1) | 37020500 |
UNSPSC (4.03) | 31163101 |
UNSPSC (10.0) | 27121701 |
UNSPSC (11.0501) | 27121701 |
UNSPSC (13.0601) | 27121701 |
UNSPSC (15.1) | 27121701 |
UNSPSC (17.1001) | 27121701 |
자원
비슷한 제품
부품 번호(Part #)
|
몸체 재질
|
연결구 1 크기
|
연결구 1 종류
|
연결구 2 크기
|
연결구 2 종류
|
|
---|---|---|---|---|---|---|
B-QC4-B-2PF | Latón | 1/8 pulg. | NPT hembra | - | - | 제품 보기 |
B-QC4-B-2PM | Latón | 1/8 pulg. | NPT macho | - | - | 제품 보기 |
B-QC4-B-400 | Latón | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
B-QC4-B-4MT | Latón | 1/4 pulg. | Rosca Macho ISO Cónica | - | - | 제품 보기 |
B-QC4-B-4PF | Latón | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
B-QC4-B-4PM | Latón | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
B-QC4-B-6M0 | Latón | 6 mm | Racor Swagelok® | - | - | 제품 보기 |
B-QC6-B-4PF | Latón | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
B-QC6-B-4PM | Latón | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
B-QC6-B-600 | Latón | 3/8 pulg. | Racor Swagelok® | - | - | 제품 보기 |
B-QC6-B-6PF | Latón | 3/8 pulg. | NPT hembra | - | - | 제품 보기 |
B-QC6-B-6PM | Latón | 3/8 pulg. | NPT macho | - | - | 제품 보기 |
B-QC8-B-810 | Latón | 1/2 pulg. | Racor Swagelok® | - | - | 제품 보기 |
B-QC8-B-8PF | Latón | 1/2 pulg. | NPT hembra | - | - | 제품 보기 |
B-QC8-B-8PM | Latón | 1/2 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-200 | Acero inoxidable 316 | 1/8 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-2PF | Acero inoxidable 316 | 1/8 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC4-B-2PM | Acero inoxidable 316 | 1/8 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-400 | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-400IS | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-400K1 | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-400K2 | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-400K3 | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-400K4 | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-400K5 | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-400-SC11 | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | - | - | 제품 보기 |
SS-QC4-B-4FT | Acero inoxidable 316 | 1/4 pulg. | Rosca Hembra ISO/BSP cónica | - | - | 제품 보기 |
SS-QC4-B-4MT | Acero inoxidable 316 | 1/4 pulg. | Rosca Macho ISO Cónica | - | - | 제품 보기 |
SS-QC4-B-4PF | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC4-B-4PFEP | Acero inoxidable 316 | 1/4 pulg. | NPT Hembra | - | - | 제품 보기 |
SS-QC4-B-4PFJA | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC4-B-4PFK1 | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC4-B-4PFK2 | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC4-B-4PFK3 | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC4-B-4PFK4 | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC4-B-4PFK5 | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC4-B-4PM | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-4PMEP | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-4PMK1 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-4PMK2 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-4PMK3 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-4PMK5 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-4PMKR | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-4PM-SC11 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC4-B-6M0 | Acero inoxidable 316 | 6 mm | Racor Swagelok® | - | - | 제품 보기 |
SS-QC6-B-10M0 | Acero inoxidable 316 | 10 mm | Racor Swagelok® | - | - | 제품 보기 |
SS-QC6-B-4PF | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | - | - | 제품 보기 |
SS-QC6-B-4PM | Acero inoxidable 316 | 1/4 pulg. | NPT macho | - | - | 제품 보기 |
SS-QC6-B-600 | 316 ステンレス鋼 | 3/8 インチ | Swagelok®チューブ継手 | - | - | 제품 보기 |
SS-QC6-B-600IS | 316 ステンレス鋼 | 3/8 インチ | Swagelok®チューブ継手 | - | - | 제품 보기 |
SS-QC6-B-600K1 | 316 스테인리스강 | 3/8인치 | Swagelok® 튜브 피팅 | - | - | 제품 보기 |
SS-QC6-B-600K2 | 316 스테인리스강 | 3/8인치 | Swagelok® 튜브 피팅 | - | - | 제품 보기 |
SS-QC6-B-600K3 | 316 스테인리스강 | 3/8인치 | Swagelok® 튜브 피팅 | - | - | 제품 보기 |
SS-QC6-B-6MT | 316 스테인리스강 | 3/8인치 | 수나사 ISO 경사나사 | - | - | 제품 보기 |
SS-QC6-B-6PF | 316 스테인리스강 | 3/8인치 | 암나사 NPT | - | - | 제품 보기 |
SS-QC6-B-6PM | 316 스테인리스강 | 3/8인치 | 수나사 NPT | - | - | 제품 보기 |
SS-QC6-B-6PMIS | 316 스테인리스강 | 3/8인치 | 수나사 NPT | - | - | 제품 보기 |
SS-QC8-B-12M0 | 316 스테인리스강 | 12mm | Swagelok® 튜브 피팅 | - | - | 제품 보기 |
SS-QC8-B-810 | 316 스테인리스강 | 1/2인치 | Swagelok® 튜브 피팅 | - | - | 제품 보기 |
SS-QC8-B-810K5 | 316 스테인리스강 | 1/2인치 | 스웨즈락® 튜브 피팅 | - | - | 제품 보기 |
SS-QC8-B-8FT | 316 스테인리스강 | 1/2인치 | 암나사 ISO 경사나사 | - | - | 제품 보기 |
SS-QC8-B-8MT | 316 스테인리스강 | 1/2인치 | 수나사 ISO 경사나사 | - | - | 제품 보기 |
SS-QC8-B-8PF | 316 스테인리스강 | 1/2인치 | 암나사 NPT | - | - | 제품 보기 |
SS-QC8-B-8PM | 316 스테인리스강 | 1/2인치 | 수나사 NPT | - | - | 제품 보기 |
