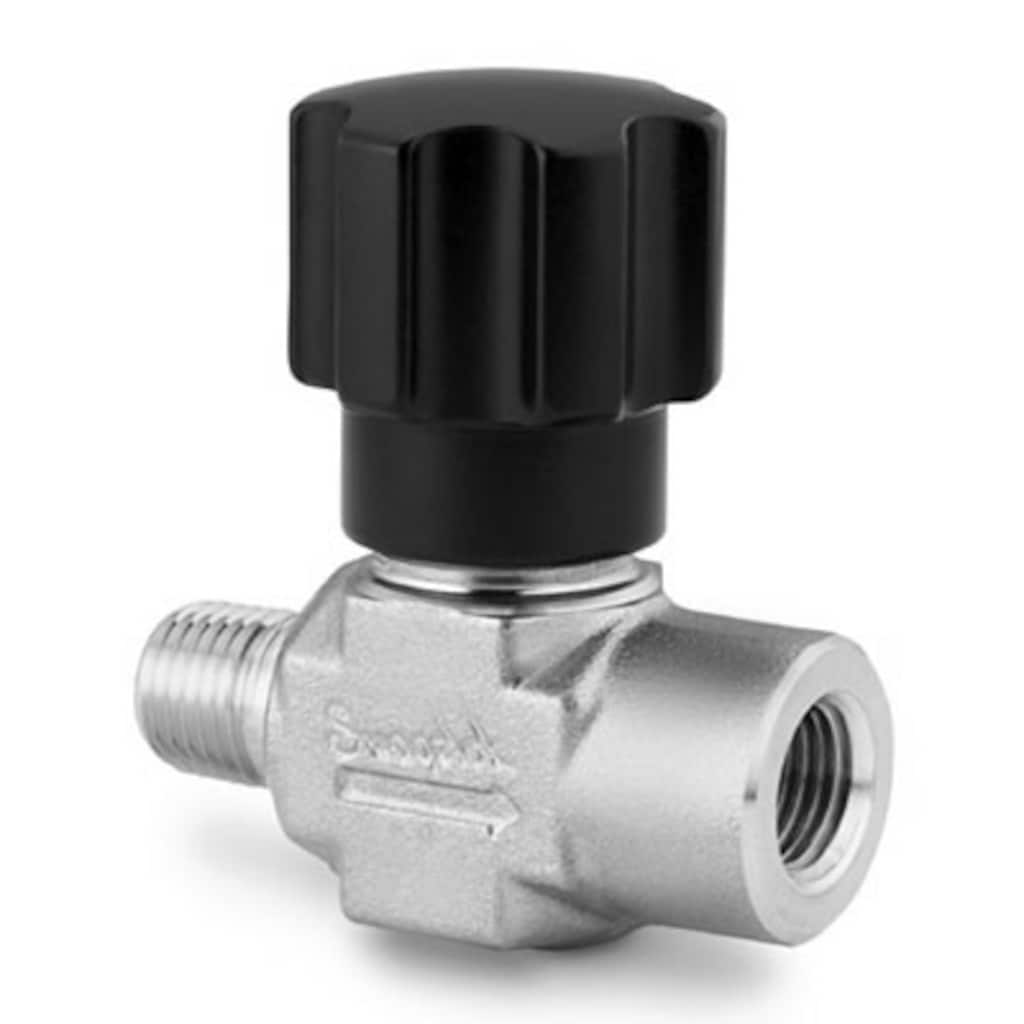

Stainless Steel Integral Bonnet Non-Rotating Stem Valve, 0.53 Cv, 1/4 in. MNPT x 1/4 in. FNPT with Sulfinert Coating
Log in or Register to view price
Catalogs
Straight Pattern, Non Rotating Stem
Integral-bonnet needle valve are compact needle valves available in a full range of sizes, configurations, and materials for a variety of applications.
Presiones de trabajo hasta 206 bar (3000 psig); Temperaturas hasta 232°C (450°F) con obturador de PEEK; Disponibles en acero inoxidable, latón y aleación 400
Swagelok® Specification SC-10 defines the cleaning, lubrication, assembly, and packaging requirements for standard Swagelok products and describes practices used to meet these requirements.
Este documento especifica las directrices seguidas por Swagelok® Company y sus proveedores, para asegurar el cumplimiento de los requisitos de limpieza del producto según está establecido por ASTM G93 Nivel C.
Valve sizing often is described by the nominal size of the end connections, but a more important measure is the flow that the valve can provide. And determining flow through a valve can be simple.
Características: Procedimiento de identificación paso a paso de roscas y conexiones finales.
Págs. 1-2. Instrucciones de instalación, las referencias de conjuntos de discos de ruptura y las precauciones.
Specifications
SS-16DKM4-F4-12457 — Stainless Steel Integral Bonnet Non-Rotating Stem Valve, 0.53 Cv, 1/4 in. MNPT x 1/4 in. FNPT with Sulfinert Coating
Attribute | Value |
---|---|
Body Material | Edelstahl 316 |
Cleaning Process | Standardreinigung und -verpackung (SC-10) |
Connection 1 Size | 1/4 Zoll |
Connection 1 Type | NPT-Außengewinde |
Connection 2 Size | 1/4 Zoll |
Connection 2 Type | NPT-Innengewinde |
Maximum Temperature, °F (°C) | 200 (93) |
Minimum Temperature, °F (°C) | -20 (-28) |
eClass (4.1) | 37010201 |
eClass (5.1.4) | 37010201 |
eClass (6.0) | 37010203 |
eClass (6.1) | 37010203 |
eClass (10.1) | 37010203 |
UNSPSC (4.03) | 40141602 |
UNSPSC (10.0) | 40141602 |
UNSPSC (11.0501) | 40141602 |
UNSPSC (13.0601) | 40141602 |
UNSPSC (15.1) | 40141602 |
UNSPSC (17.1001) | 40141600 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
Similar Products
Part #
|
Body Material
|
Connection 1 Size
|
Connection 1 Type
|
Connection 2 Size
|
Connection 2 Type
|
|
---|---|---|---|---|---|---|
M-14DKM4 | Aleación 400 | 1/4 pulg. | NPT macho | 1/4 pulg. | NPT macho | View Product |
SS-14DKM4 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | 1/4 pulg. | NPT macho | View Product |
SS-14DKM4-S4 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | 1/4 pulg. | Racor Swagelok® | View Product |
SS-14DKS4 | Acero inoxidable 316 | 1/4 pulg. | Racor Swagelok® | 1/4 pulg. | Racor Swagelok® | View Product |
SS-16DKF4 | Acero inoxidable 316 | 1/4 pulg. | NPT hembra | 1/4 pulg. | NPT hembra | View Product |
SS-16DKM4 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | 1/4 pulg. | NPT macho | View Product |
SS-16DKM4-F4 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | 1/4 pulg. | NPT hembra | View Product |
SS-16DKM4-F4-1 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | 1/4 pulg. | NPT hembra | View Product |
SS-16DKM4F4-2 | Acero inoxidable 316 | 1/4 pulg. | NPT macho | 1/4 pulg. | NPT hembra | View Product |
SS-16DKM4-F4-KZ | Acero inoxidable 316 | 1/4 pulg. | NPT Macho | 1/4 pulg. | NPT Hembra | View Product |
SS-16DKS6 | Acero inoxidable 316 | 3/8 pulg. | Racor Swagelok® | 3/8 pulg. | Racor Swagelok® | View Product |
SS-16DPM4-F4 | Acero inoxidable 316 | 1/4 pulg. | NPT Macho | 1/4 pulg. | NPT Hembra | View Product |
SS-16DPM4-F4-BC-PD | Acero inoxidable 316 | 1/4 pulg. | NPT Macho | 1/4 pulg. | NPT Hembra | View Product |
