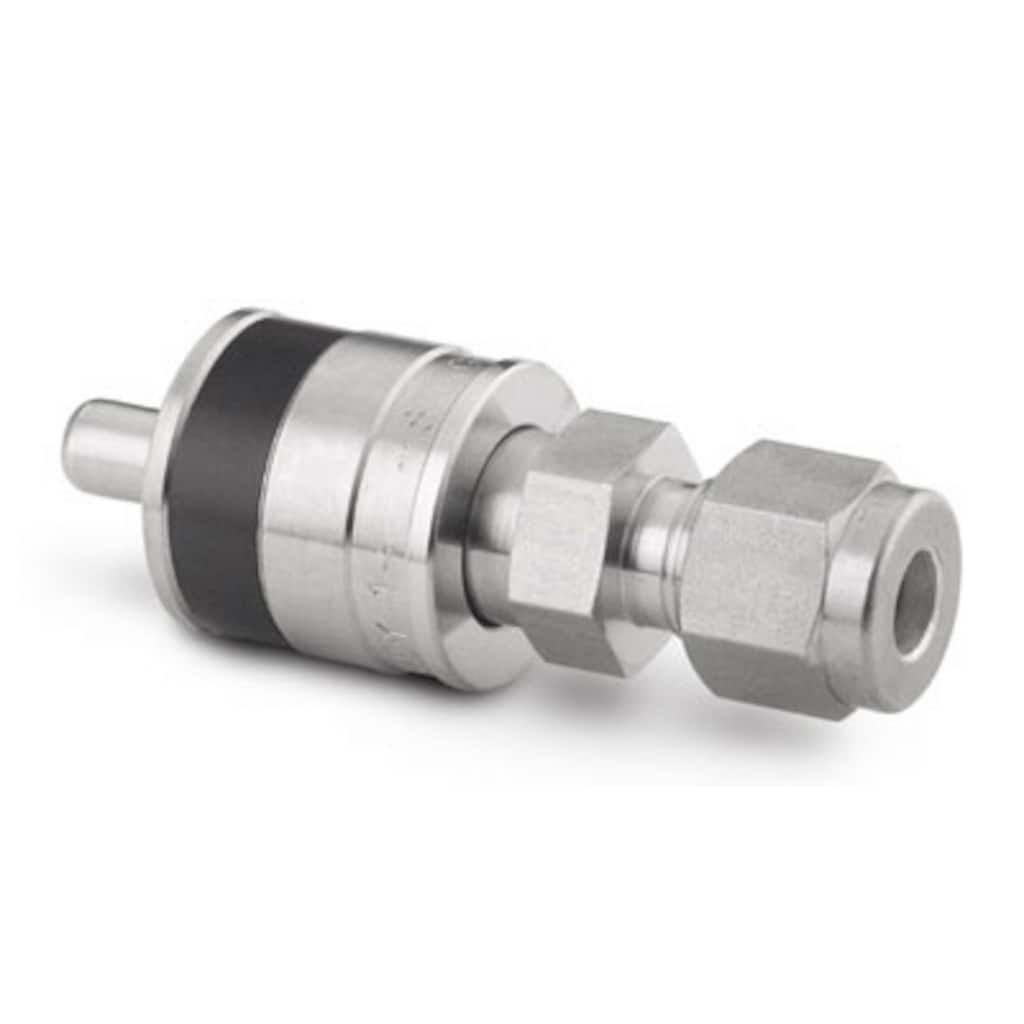

밸브가 없는 스테인리스강 계장용 퀵 코넥트 스템, 0.3Cv, 1/4인치 스웨즈락 튜브 피팅, 검정색 키
Réf. pièce : SS-QC4-S-400K1
|
||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Spécifications
SpindelnSchnelle und mühelose Verbindungen mit Swagelok-Schnellkupplungen für Anwendungen, die häufige Verbindungen, minimalen Lufteinschluss und minimalen Verlust erfordern Ouvrir une session ou s’inscrire pour afficher des prix ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Sichere Produktauswahl:
Der Kataloginhalt muss ganz durchgelesen werden, um sicherzustellen, dass der Systementwickler und der Benutzer eine sichere Produktauswahl treffen. Bei der Auswahl von Produkten muss die gesamte Systemanordnung berücksichtigt werden, um eine sichere, störungsfreie Funktion zu gewährleisten. Der Systemdesigner und der Benutzer sind für Funktion, Materialverträglichkeit, entsprechende Leistungsdaten und Einsatzgrenzen sowie für die vorschriftsmäßige Handhabung, den Betrieb und die Wartung verantwortlich. Attention: Swagelok-Produkte oder -Bauteile, die nicht den industriellen Entwicklungsnormen entsprechen, einschließlich Swagelok Rohrverschraubungen und Endanschlüsse nicht durch die anderer Hersteller austauschen oder mit den Produkten oder Bauteilen anderer Hersteller vermischen. |
Der Kataloginhalt muss ganz durchgelesen werden, um sicherzustellen, dass der Systementwickler und der Benutzer eine sichere Produktauswahl treffen. Bei der Auswahl von Produkten muss die gesamte Systemanordnung berücksichtigt werden, um eine sichere, störungsfreie Funktion zu gewährleisten. Der Systemdesigner und der Benutzer sind für Funktion, Materialverträglichkeit, entsprechende Leistungsdaten und Einsatzgrenzen sowie für die vorschriftsmäßige Handhabung, den Betrieb und die Wartung verantwortlich.
Attention: Swagelok-Produkte oder -Bauteile, die nicht den industriellen Entwicklungsnormen entsprechen, einschließlich Swagelok Rohrverschraubungen und Endanschlüsse nicht durch die anderer Hersteller austauschen oder mit den Produkten oder Bauteilen anderer Hersteller vermischen.
밸브가 없는 스테인리스강 계장용 퀵 코넥트 스템, 0.3Cv, 1/4인치 스웨즈락 튜브 피팅, 검정색 키
Ouvrir une session ou s’inscrire pour afficher des prix
Catalogues
Spindeln
Sin necesidad de torsión, rotación ni de apretado con llaves; Modelos con, cierre sencillo, cierre en la base y en la espiga y de gran caudal
Características: Procedimiento de identificación paso a paso de roscas y conexiones finales.
Págs. 1-2. Procedimientos recomendados para el manejo de los enchufes rápidos Swagelok: Se deben instalar filtros para proteger los enchufes rápidos. Proteja las espigas y las bases con guardapolvos o protectores cuando no estén acoplados.
Spécifications
SS-QC4-S-400K1 — 밸브가 없는 스테인리스강 계장용 퀵 코넥트 스템, 0.3Cv, 1/4인치 스웨즈락 튜브 피팅, 검정색 키
| Attribut | Valeur |
|---|---|
| Körperwerkstoff | Edelstahl 316 |
| Reinigungsverfahren | Standardreinigung und -verpackung (SC-10) |
| Größe Verbindung 1 | 1/4 Zoll |
| Typ Verbindung 1 | Swagelok® Rohrverschraubung |
| Maximaler Cv | 0,3 - bei Verbindung mit einem Standard-Körper mit Absperrung, 0,4 - bei Verbindung mit einem Körper mit vollem Durchfluss |
| Schmierstoff | Ohne Schmiermittel auf den Bauteilen |
| O-Ring-Material | Fluorkautschuk FPM |
| Druckbereich gekuppelt bei max. Temperatur | 17,2 BAR bei 204 °C /250 PSIG bei 400 °F |
| Druckbereich gekuppelt bei Raumtemperatur | 206 BAR bei 21 °C /3000 PSIG bei 70 °F |
| Serie | QC4 |
| Sonderhülse | Schwarz kodierte Hülse |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| eClass (10.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
