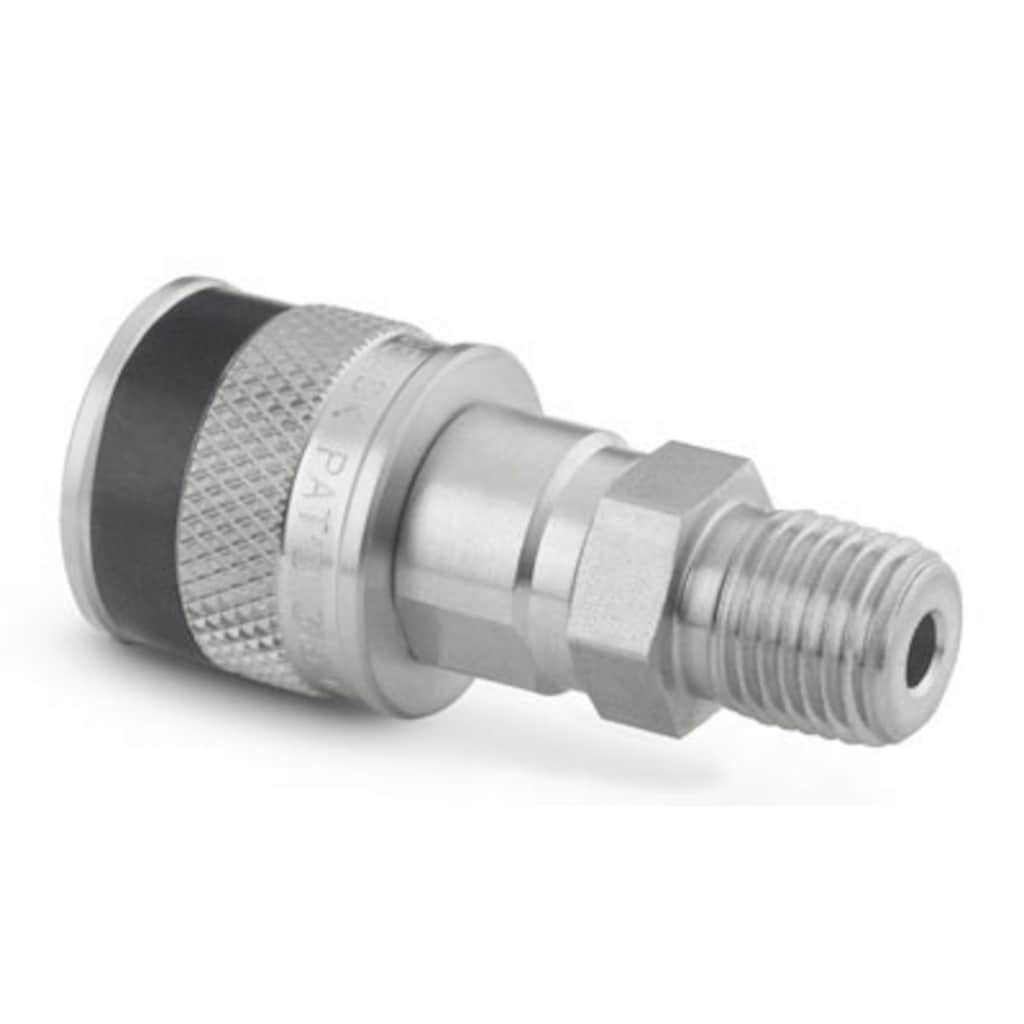

Base enchufe rápido para instrumentación de acero inox., Cv 0,2, 1/4 pulg. NPT macho, Código negro
Referencia #: SS-QC4-B-4PMK1
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Especificaciones
BodiesMake quick, easy connections with Swagelok quick connects for applications requiring frequent connections, minimal air inclusion and minimal spillage. Inicie la sesión o regístrese para ver los precios ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Advertencia: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Advertencia: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
Base enchufe rápido para instrumentación de acero inox., Cv 0,2, 1/4 pulg. NPT macho, Código negro
Inicie la sesión o regístrese para ver los precios
Catálogos
Bodies
QC, QF, QM, 및 QTM 시리즈■ 비틀림, 회전 및 렌치 작업이 필요 없음■ 단일 차단용, 양단 차단용 및 대용량용 모델
Features: Step-by-step identification procedure for threads and end connections.
Warning: System pressure must not exceed 250 psig (17.2 bar) at 70°F (20°C) when coupling and uncoupling this product. When uncoupling single-end shutoff quick-connects, system pressure on stem side will vent to atmosphere.
Especificaciones
SS-QC4-B-4PMK1 — Base enchufe rápido para instrumentación de acero inox., Cv 0,2, 1/4 pulg. NPT macho, Código negro
| Atributo | Valor |
|---|---|
| Inclusión de aire | 0.3 cm3 |
| Material del Cuerpo | 316 Stainless Steel |
| Proceso de Limpieza | Standard Cleaning and Packaging (SC-10) |
| Tamaño conexión 1 | 1/4 in. |
| Tipo de conexión 1 | Male NPT |
| Cv Máximo | 0.2 - If coupled with a DESO stem, 0.3 - If coupled with a SESO stem |
| Lubricante | Dow Corning 111 |
| Material de la junta tórica | Fluorocarbon FKM |
| Rango de presión acoplado a máx. temp. | 250 PSIG @ 400 °F /17.2 BAR @ 204 °C |
| Rango de presión acoplado a temp. ambiente | 3000 PSIG @ 70 °F /206 BAR @ 21 °C |
| Rango de Presión Desacoplado a Temp. Ambiente | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Rango de Presión (Durante la conexión y desconexión) | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Serie | QC4 |
| Funda Especial | Black Keyed Sleeve |
| Derrame | 0.3 cm3 |
| Pruebas | 0.3 cm3 |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| eClass (10.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
Documentación
Planos
Hay disponibles reproducciones bidimensionales para este producto. Descargar el archivo CAD.
Hay disponibles reproducciones tridimensionales para este producto. Descargar el archivo CAD.
Hay planos dimensionales disponibles para este producto. Descargar los archivos
