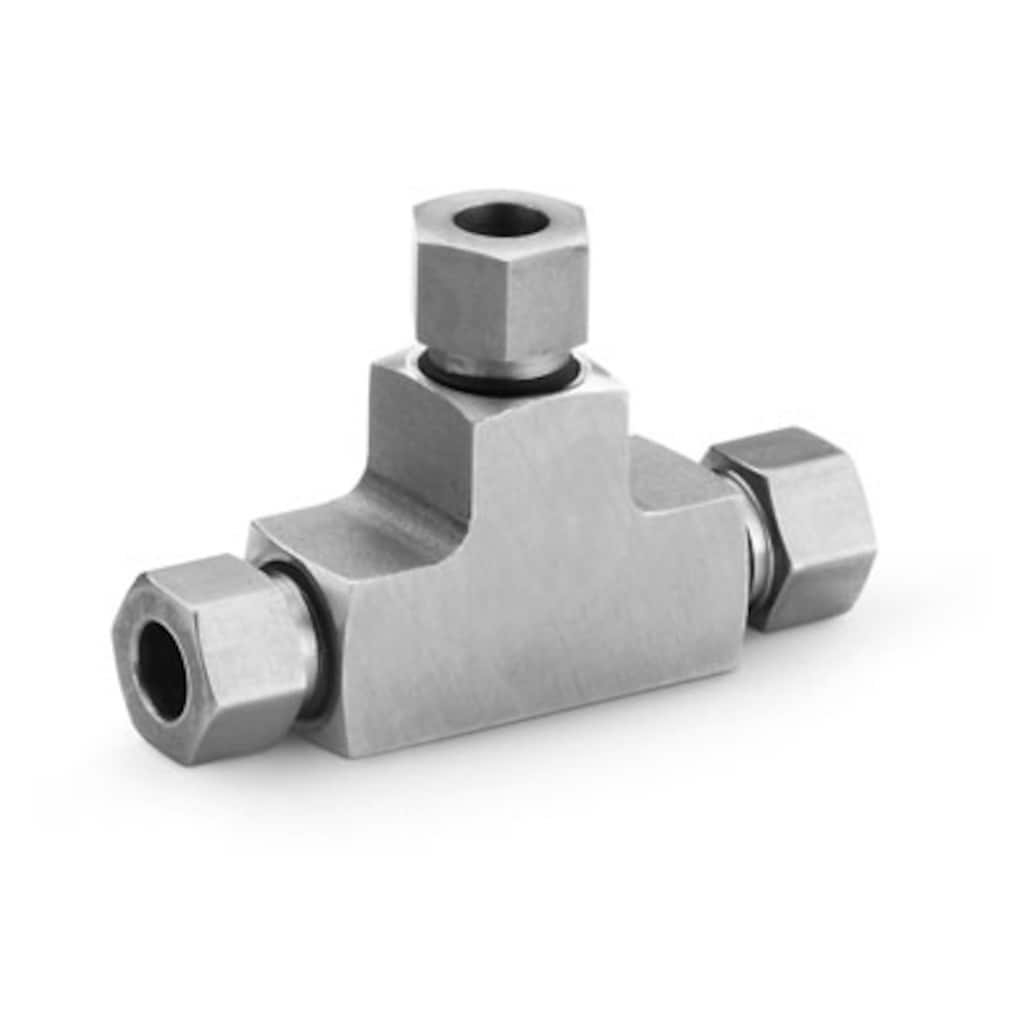

Swagelok T-Stück für mittleren Druck, Edelstahl 316, 1/2 Zoll Rohrverschraubung
Код изделия: SS-8FK0-3
|
||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Технические характеристики
T-StückeRohrverschraubungen der Serie FK für mittleren Druck von Swagelok bieten bei Anwendungen bis zu 1378 bar (20 000 psig) leckagefreie Gasdichtigkeit und Vibrationsbeständigkeit. Erhältlich in Edelstahl 316, Super Duplex Alloy 2507 oder Alloy 625. Войдите или зарегистрируйтесь, чтобы просмотреть цену ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Предупреждение: Swagelok-Produkte oder -Bauteile, die nicht den industriellen Entwicklungsnormen entsprechen, einschließlich Swagelok Rohrverschraubungen und Endanschlüsse nicht durch die anderer Hersteller austauschen oder mit den Produkten oder Bauteilen anderer Hersteller vermischen. |
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Предупреждение: Swagelok-Produkte oder -Bauteile, die nicht den industriellen Entwicklungsnormen entsprechen, einschließlich Swagelok Rohrverschraubungen und Endanschlüsse nicht durch die anderer Hersteller austauschen oder mit den Produkten oder Bauteilen anderer Hersteller vermischen.
Swagelok T-Stück für mittleren Druck, Edelstahl 316, 1/2 Zoll Rohrverschraubung
Войдите или зарегистрируйтесь, чтобы просмотреть цену
Каталоги
T-Stücke
특징: 316 스텐레스강 구조; 537°C (1000°F)까지의 온도; 중압 (MP) 피팅, 크기—1/4 ~ 1 in., 압력 등급—최대 20 000 psig (1378 bar); 고압 (HP) 피팅, 크기—1/4 ~ 9/16 in., 압력 등급—최대 60 000 psig (4134 bar); NACE® MR0175/ISO15156 적합
Технические характеристики
SS-8FK0-3 — Swagelok T-Stück für mittleren Druck, Edelstahl 316, 1/2 Zoll Rohrverschraubung
| Атрибут | Значение |
|---|---|
| Körperwerkstoff | Edelstahl 316 |
| Reinigungsverfahren | Standardreinigung und -verpackung (SC-10) |
| Größe Verbindung 1 | 1/2 Zoll |
| Typ Verbindung 1 | Swagelok® Rohrverschraubung für mittleren Druck |
| Größe Verbindung 2 | 1/2 Zoll |
| Typ Verbindung 2 | Swagelok® Rohrverschraubung für mittleren Druck |
| Größe Verbindung 3 | 1/2 Zoll |
| Typ Verbindung 3 | Swagelok® Rohrverschraubung für mittleren Druck |
| Durchflusswiderstand | Nein |
| eClass (4.1) | 37020716 |
| eClass (5.1.4) | 37020590 |
| eClass (6.0) | 37020590 |
| eClass (6.1) | 37020590 |
| eClass (10.1) | 37020590 |
| UNSPSC (4.03) | 40141700 |
| UNSPSC (10.0) | 40142600 |
| UNSPSC (11.0501) | 40142600 |
| UNSPSC (13.0601) | 40183100 |
| UNSPSC (15.1) | 40183100 |
| UNSPSC (17.1001) | 40183102 |
Ресурсы
Чертежи
Для этого изделия есть двухмерные модели. Загрузить файл САПР.
Для этого изделия есть трехмерные модели. Загрузить файл САПР.
Для этого изделия есть рекламные чертежи. Загрузить файлы.
Похожие изделия
|
Код изделия
|
Материал корпуса
|
Размер соединения 1
|
Тип соединения 1
|
Размер соединения 2
|
Тип соединения 2
|
|
|---|---|---|---|---|---|---|
| SS-4FK0-3 | 316 스테인리스강 | 1/4인치 | Swagelok® 중압 튜브 피팅 | 1/4인치 | Swagelok® 중압 튜브 피팅 | Просмотр изделия |
| SS-6FK0-3 | 316 스테인리스강 | 3/8인치 | Swagelok® 중압 튜브 피팅 | 3/8인치 | Swagelok® 중압 튜브 피팅 | Просмотр изделия |
