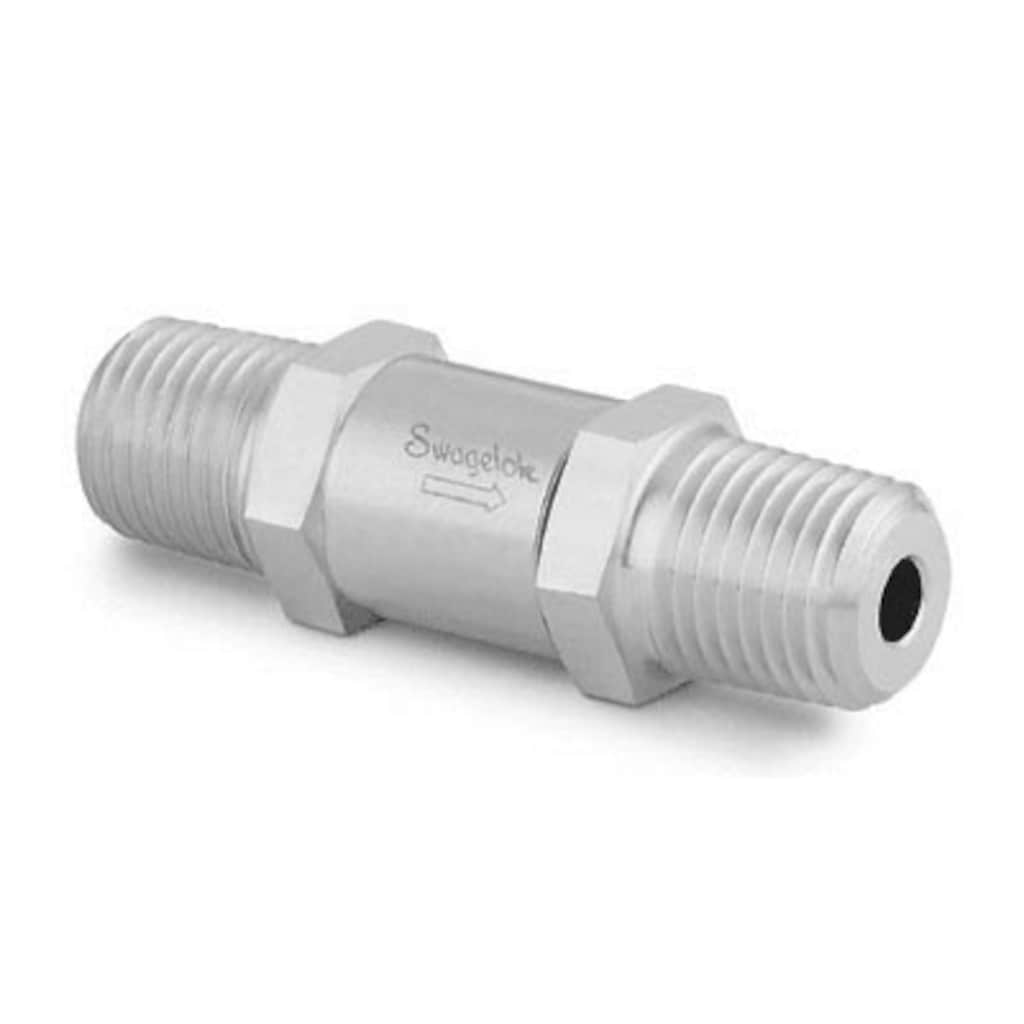

Stainless Steel Poppet Check Valve, Fixed Pressure, 1/4 in. MNPT, 1/3 psig (0.03 bar)
Réf. pièce : SS-4C2-1/3
|
||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Spécifications
Presión FijaLas válvulas antirretorno controlan el retorno del caudal con un amplio rango de presiones de disparo en aplicaciones de servicio general y de alta pureza. Ouvrir une session ou s’inscrire pour afficher des prix 联系人如果您对本产品有疑问，请联系您当地的授权销售与服务中心。他们还可以告诉您有关支持服务的信息，帮助您获得最大的投资收益。
安全的产品选择：
请务必查看全部产品目录内容以保证系统设计者和用户进行安全的产品选择。选择产品时，必须考虑总体系统设计以保证获得安全的、无故障的性能。功能、材料兼容性、充分的额定值、正确的安装、使用和维护是系统设计者和用户的重要责任。 Attention: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
|
安全的产品选择：
请务必查看全部产品目录内容以保证系统设计者和用户进行安全的产品选择。选择产品时，必须考虑总体系统设计以保证获得安全的、无故障的性能。功能、材料兼容性、充分的额定值、正确的安装、使用和维护是系统设计者和用户的重要责任。
Attention: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
Stainless Steel Poppet Check Valve, Fixed Pressure, 1/4 in. MNPT, 1/3 psig (0.03 bar)
Réf. pièce : SS-4C2-1/3
Afficher le catalogue
Ouvrir une session ou s’inscrire pour afficher des prix
Catalogues
Presión Fija
Las válvulas antirretorno controlan el retorno del caudal con un amplio rango de presiones de disparo en aplicaciones de servicio general y de alta pureza.
체크 밸브 C CA CH CP 및 CPA 시리즈
최대 사용 압력: 6000 psig (413 bar); 크래킹 압력 조절형 및 고정형; 다양한 연결구; 316 스텐레스강 및 황동 재질
Thread and End Connection Identification Guide
Features: Step-by-step identification procedure for threads and end connections.
특수 세정 및 포장 SC-11 사양 SCS-00011
범위 이 문서에서는 Swagelok및 관련 공급자가 ASTM G93 레벨 C에 언급된 제품 청정도 요건을 준수하기 위해 사용하는 가이드라인을 설명합니다. 이 문서는 유체가 접촉되는 시스템 부품에만 한정적으로 적용됩니다. 이 문서는 제품 카탈로그, 기술 보고서 및 기타 보고서들과 함께 이용해야 합니다.
표준 세정 및 포장 SC-10 사양 SCS-00010
Swagelok® Specification SC-10 defines the cleaning, lubrication, assembly, and packaging requirements for standard Swagelok products and describes practices used to meet these requirements.
Valve Sizing Technical Bulletin
Valve sizing often is described by the nominal size of the end connections, but a more important measure is the flow that the valve can provide. And determining flow through a valve can be simple.
Swagelok Tube Fittings Over 1 inch or 25 mm
Procedure for installing Swagelok tube fittings in sizes over 1 inch or 25 mm.
Spécifications
SS-4C2-1/3 — Stainless Steel Poppet Check Valve, Fixed Pressure, 1/4 in. MNPT, 1/3 psig (0.03 bar)
| Attribut | Valeur |
|---|---|
| Material del Cuerpo | 316 Stainless Steel |
| Proceso de Limpieza | Standard Cleaning and Packaging (SC-10) |
| Tamaño conexión 1 | 1/4 in. |
| Tipo de conexión 1 | Male NPT |
| Tamaño conexión 2 | 1/4 in. |
| Tipo de conexión 2 | Male NPT |
| Presión de Disparo | 1/3 psi (0.03 bar, 0.003 MPa) |
| Cv Máximo | 0.47 |
| Material de la junta tórica | Fluorocarbon FKM |
| Rango de presión a temperatura ambiente | 3000 PSIG @ 100°F /206 BAR @ 37°C |
| Acabado superficial | Standard |
| Pruebas | No Optional Testing |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27300601 |
| eClass (6.1) | 27300601 |
| eClass (10.1) | 27300601 |
| UNSPSC (4.03) | 40141622 |
| UNSPSC (10.0) | 40141641 |
| UNSPSC (11.0501) | 40141641 |
| UNSPSC (13.0601) | 40141641 |
| UNSPSC (15.1) | 40141641 |
| UNSPSC (17.1001) | 40183101 |
