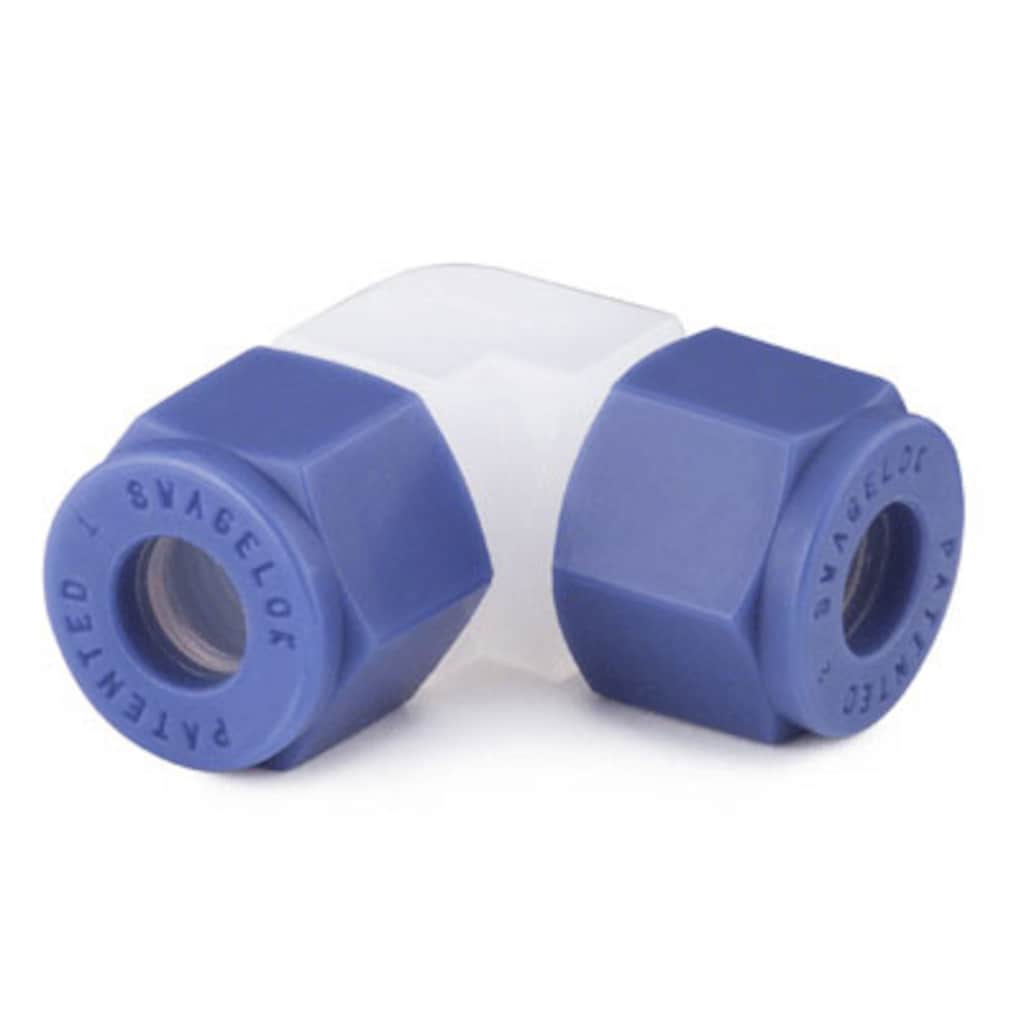

PFA Swagelok Tube Fitting, Union Elbow, 3/8 in. Tube Fitting
Inicie la sesión o regístrese para ver los precios
Catálogos
Codos de 90°
Sistemas sin fugas gracias una sujeción robusta del tubo y resistencia a las vibraciones. La alta fiabilidad del racor Swagelok ha sido probada durante más de 65 años de éxitos, y está documentada en un gran número de informes de ensayos publicados, incluyendo ensayos realizados bajo condiciones extremas.
Features: Temperatures from 70 to 400°F (20 to 204°C); Working pressures up to 275 psig (18.9 bar); Sizes from 1/8 to 1/2 in.
1/16 in. 부터 2 in. 및 2 mm 에서 50 mm; 최초 설비 시 일관된 측정가능성; 분리 및 재조립이 용이함; 다양한 재질 및 형태
제품; Snoop누설 검사액; Goop™ 나사 윤활제; SWAK, 테프론 테이프 및 PTFE 가 포함되지 않은 파이프 나사 밀폐제
Features: Step-by-step identification procedure for threads and end connections.
Especificaciones
PFA-620-9 — PFA Swagelok Tube Fitting, Union Elbow, 3/8 in. Tube Fitting
| Atributo | Valor |
|---|---|
| Material del Cuerpo | PFA |
| Taladrado pasante | No |
| Proceso de Limpieza | Standard Cleaning and Packaging (SC-10) |
| Tamaño conexión 1 | 3/8 in. |
| Tipo de conexión 1 | Swagelok® Tube Fitting |
| Tamaño conexión 2 | 3/8 in. |
| Tipo de conexión 2 | Swagelok® Tube Fitting |
| Limitador de Caudal | No |
| eClass (4.1) | 37060704 |
| eClass (5.1.4) | 37070501 |
| eClass (6.0) | 37020590 |
| eClass (6.1) | 37070501 |
| UNSPSC (4.03) | 40141718 |
| UNSPSC (10.0) | 40142606 |
| UNSPSC (11.0501) | 40142604 |
| UNSPSC (13.0601) | 40183101 |
| UNSPSC (15.1) | 40183101 |
| UNSPSC (17.1001) | 40141658 |
Documentación
Planos
Hay disponibles reproducciones bidimensionales para este producto. Descargar el archivo CAD.
Hay disponibles reproducciones tridimensionales para este producto. Descargar el archivo CAD.
Hay planos dimensionales disponibles para este producto. Descargar los archivos
