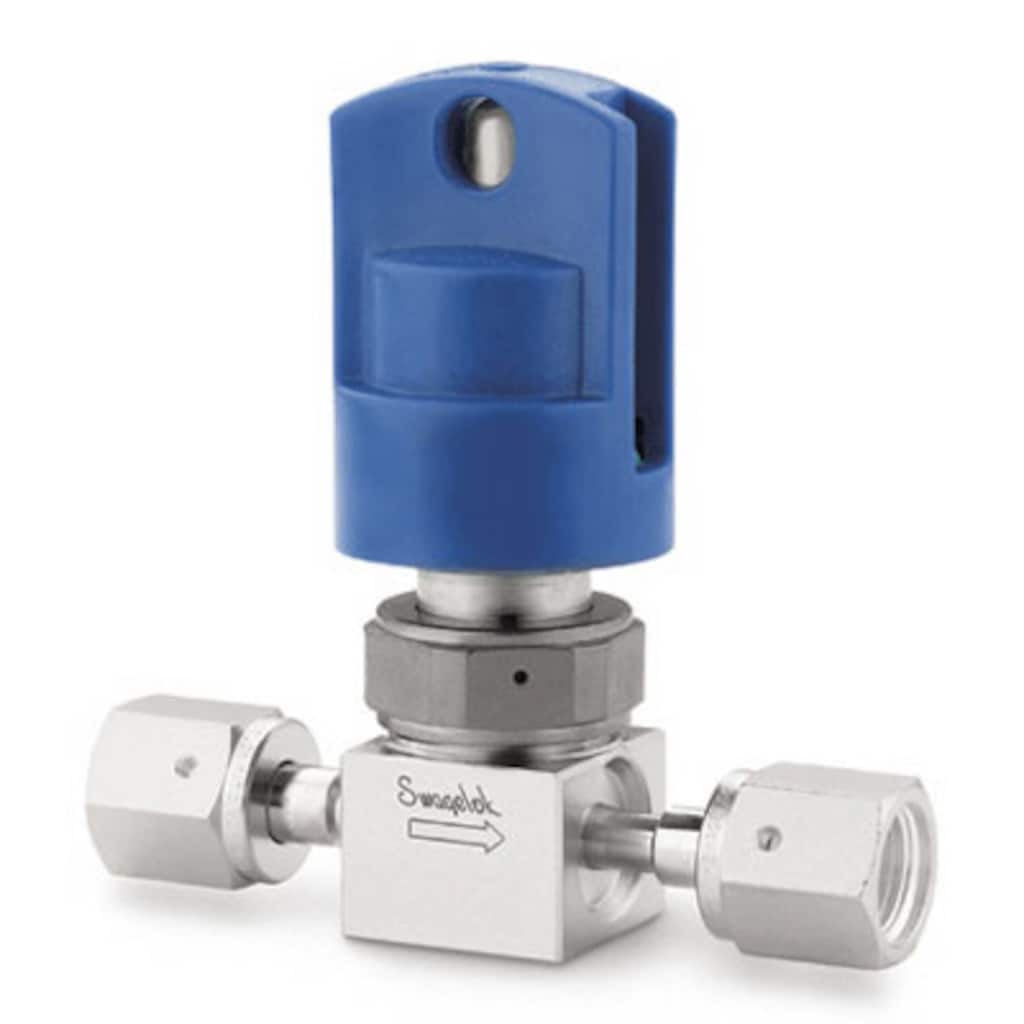

Membranventil UHP, Edelstahl 316L VIM-VAR, 1/4 Zoll VCR-Anschluss mit Innengewinde, SC-01 gereinigt, blauer abschließbarer Griff |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specifications
Gerade, Manuelle BetätigungErfüllen Sie die hochreinen oder ultrahochreinen Systemanforderungen mit Swagelok-Membranventilen, die in verschiedenen Größen, Werkstoffen und Konfigurationen für zahlreiche Anwendungen verfügbar sind. Log in or Register to view price ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Warning: Swagelok-Produkte oder -Bauteile, die nicht den industriellen Entwicklungsnormen entsprechen, einschließlich Swagelok Rohrverschraubungen und Endanschlüsse nicht durch die anderer Hersteller austauschen oder mit den Produkten oder Bauteilen anderer Hersteller vermischen.
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warning: Swagelok-Produkte oder -Bauteile, die nicht den industriellen Entwicklungsnormen entsprechen, einschließlich Swagelok Rohrverschraubungen und Endanschlüsse nicht durch die anderer Hersteller austauschen oder mit den Produkten oder Bauteilen anderer Hersteller vermischen.
Membranventil UHP, Edelstahl 316L VIM-VAR, 1/4 Zoll VCR-Anschluss mit Innengewinde, SC-01 gereinigt, blauer abschließbarer Griff
Log in or Register to view price
Catalogs
Gerade, Manuelle Betätigung
Erfüllen Sie die hochreinen oder ultrahochreinen Systemanforderungen mit Swagelok-Membranventilen, die in verschiedenen Größen, Werkstoffen und Konfigurationen für zahlreiche Anwendungen verfügbar sind.
DP 시리즈 초고순도 사양에 적합 316L VIM-VAR 스텐레스강 몸체 저압용 및 고압용 모델 VCR®, 튜브 맞대기 용점 및 블럭 조립식 연결구 수동식 또는 공기작동식 개폐기
Features: Step-by-step identification procedure for threads and end connections.
This document specifies guidelines used by Swagelok Company for producing stainless steel products intended for photovoltaic (PV) applications.
Components: 1.5 in. (38.1 mm) C-seal modular design; Valves: manual and pneumatic diaphragm and bellows-sealed designs; Regulators: manual and preset, high-flow models; Gaskets: C-seal style for 1-, 2-, and 3-port configurations
범위 이 문서에서는 Swagelok이 초고순도(UHP) 전해연마된 스텐레스강 제품과 초고순도 플라스틱 제품을 생산할 때에 준수하는 가이드라인을 설명합니다. 완전한 제품 정보를 얻기 위해서는 이 문서와 함께 제품 카탈로그, 기술 자료 및 보고서도 이용해야 합니다.
Features: This technical report provides data on Swagelok® DP series diaphragm valves. The report covers: surface finish specifications; inboard helium leak testing; particle counting; moisture analysis; hydrocarbon analysis; ionic cleanliness.
Welding should be done by qualified personnel as outlined in Section IX of the ASME Boiler Code. Weld filler material should be the same as the base material.
Specifications
6LVV-DPLFR4-P — Membranventil UHP, Edelstahl 316L VIM-VAR, 1/4 Zoll VCR-Anschluss mit Innengewinde, SC-01 gereinigt, blauer abschließbarer Griff
| Attribute | Value |
|---|---|
| Steuerkopfart | Manuell |
| Körperwerkstoff | 316L VIM-VAR |
| Reinigungsverfahren | Ultrahochrein-Prozess-Spezifikation (SC-01) |
| Größe Verbindung 1 | 1/4 Zoll |
| Typ Verbindung 1 | VCR-Fitting (Metalldichtung) mit Innengewinde |
| Größe Verbindung 2 | 1/4 Zoll |
| Typ Verbindung 2 | VCR-Fitting (Metalldichtung) mit Innengewinde |
| Maximaler Cv | 0.27 |
| Ventilkörper | 2-WegeGerade |
| Grifffarbe | Blau |
| Griffart | Abschließbar |
| Maximale Temperatur °F (°C) | 150 (65) |
| Max. Temperatur-Druckeinsatzbereich | 65°C bei 17,2 BAR/150°F bei 250 PSIG |
| Minimum-Temperatur °F (°C) | -10 (-23) |
| Raumtemperatur-Druckeinsatzbereich | 17,2 BAR bei 20 °C /250 PSIG bei 70 °F |
| Sitzwerkstoff | PCTFE |
| Oberflächengüte | 0,13 µm (5 µin) Ra |
| eClass (4.1) | 37010206 |
| eClass (5.1.4) | 37011800 |
| eClass (6.0) | 37011801 |
| eClass (6.1) | 37011801 |
| eClass (10.1) | 37011801 |
| UNSPSC (4.03) | 40141600 |
| UNSPSC (10.0) | 40141621 |
| UNSPSC (11.0501) | 40141621 |
| UNSPSC (13.0601) | 40141621 |
| UNSPSC (15.1) | 40141621 |
| UNSPSC (17.1001) | 40183102 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
Similar Products
|
Part #
|
Body Material
|
Connection 1 Size
|
Connection 1 Type
|
Connection 2 Size
|
Connection 2 Type
|
|
|---|---|---|---|---|---|---|
| 6LVV-DPBW4-P | 316L VIM-VAR | 1/4인치 | 튜브 맞대기 용접 | 1/4인치 | 튜브 맞대기 용접 | View Product |
| 6LVV-DPC233P-C | 316L VIM-VAR | 1/4인치 | 회전 수나사 VCR® 메탈 가스켓 면 밀폐 피팅 | 1/4인치 | 암나사 VCR® 메탈 가스켓 면 밀폐 | View Product |
| 6LVV-DPFR4-P | 316L VIM-VAR | 1/4인치 | 면 밀폐(메탈 가스켓) 암나사 VCR | 1/4인치 | 면 밀폐(메탈 가스켓) 암나사 VCR | View Product |
| 6LVV-DPFR4-P1 | 316L VIM-VAR | 1/4인치 | 면 밀폐(메탈 가스켓) 암나사 VCR | 1/4인치 | 면 밀폐(메탈 가스켓) 암나사 VCR | View Product |
| 6LVV-DPFR4-P-GR | 316L VIM-VAR | 1/4인치 | 면 밀폐(메탈 가스켓) 암나사 VCR | 1/4인치 | 면 밀폐(메탈 가스켓) 암나사 VCR | View Product |
| 6LVV-DPLVR4-P | 316L VIM-VAR | 1/4인치 | 면 밀폐(메탈 가스켓) 수나사 VCR | 1/4인치 | 면 밀폐(메탈 가스켓) 수나사 VCR | View Product |
| 6LVV-DPMR4-P | 316L VIM-VAR | 1/4인치 | 회전 수나사 VCR | 1/4인치 | 면 밀폐(메탈 가스켓) 수나사 회전형 VCR 나사 | View Product |
| 6LVV-DPS4 | 316L VIM-VAR | 1/4인치 | Swagelok® 튜브 피팅 | 1/4인치 | Swagelok® 튜브 피팅 | View Product |
| 6LVV-DPS6M | 316L VIM-VAR | 6mm | Swagelok® 튜브 피팅 | 6mm | Swagelok® 튜브 피팅 | View Product |
| 6LVV-DPTFR4-P | 316L VIM-VAR | 1/4인치 | 면 밀폐(메탈 가스켓) 암나사 VCR | 1/4인치 | 면 밀폐(메탈 가스켓) 암나사 VCR | View Product |
| 6LVV-DPVR4-P | 316L VIM-VAR | 1/4인치 | 면 밀폐(메탈 가스켓) 수나사 VCR | 1/4인치 | 면 밀폐(메탈 가스켓) 수나사 VCR | View Product |
| 6LVV-DPVR4-P1 | 316L VIM-VAR | 1/4인치 | 면 밀폐(메탈 가스켓) 수나사 VCR | 1/4인치 | 면 밀폐(메탈 가스켓) 수나사 VCR | View Product |
