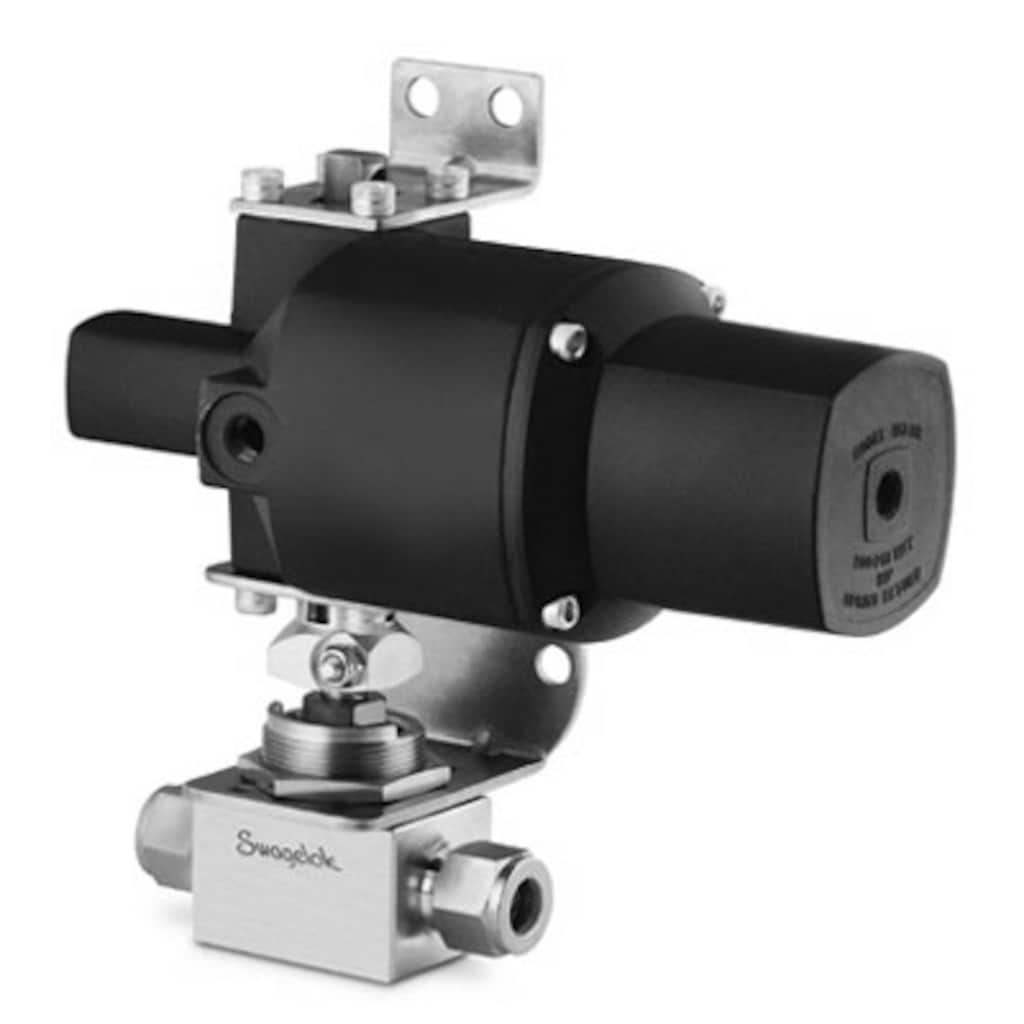

스테인리스강 원피스 40G 시리즈 볼 밸브, 1.4Cv, 1/4인치 스웨즈락 튜브 피팅, NC(평상시 닫힘) 개폐기

Built for steady performance, thermal cycling endurance, and minimized leakage.

Réf. pièce : SS-43GS4-31C

Spécifications

Attribut Valeur
アクチュエーター型式 Série 131
アクチュエーター作動モード Retour par ressort normalement fermé
アクチュエーター・タイプ Pneumatique
ボール型/ステム材質 Acier inoxydable
ボディ材質 Acier inoxydable 316
洗浄プロセス Nettoyage et conditionnement standard (SC-10)
コネクション1 サイズ 1/4 po
コネクション1 タイプ Raccord Swagelok® pour tubes
コネクション2 サイズ 1/4 po
コネクション2 タイプ Raccord Swagelok® pour tubes
最大Cv 1.4
流路図 Standard
フロー・パターン 2 voies, arrêt, droite
ハンドル・カラー Noir
ハンドル・タイプ Poignée directionnelle
低排出ガス認定 Oui
オリフィス 0,187 po / 4,7 mm
パッキン材質 PTFE modifié, UHMWPE
リング / ディスク素材 Acier inoxydable
室温における最高使用圧力 3000 PSIG À 100°F / 206 BAR À 37°C
試験 Test selon WS-22
eClass (4.1) 37011005
eClass (5.1.4) 37010401
eClass (6.0) 37010401
eClass (6.1) 37010401
eClass (10.1) 37010401
UNSPSC (4.03) 40141607
UNSPSC (10.0) 40141607
UNSPSC (11.0501) 40141607
UNSPSC (13.0601) 40141607
UNSPSC (15.1) 40141607
UNSPSC (17.1001) 40141607
