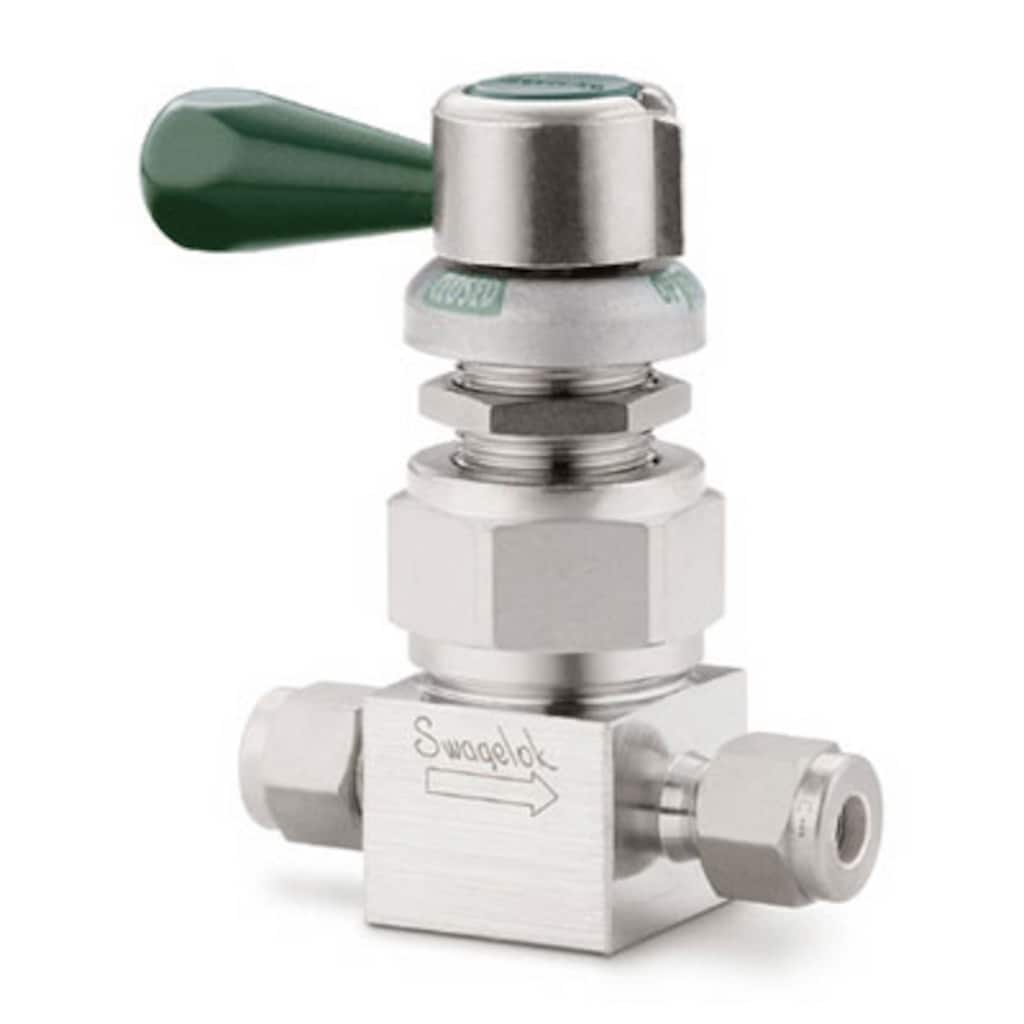

Stainless Steel High Purity High Pressure Diaphragm Sealed Valve, 8 mm Swagelok Tube Fitting, Lever Handle
Part #: SS-DLS8MM
View Catalog
Log in or Register to view price
Catalogs
Straight Pattern
Fulfill your high-purity or ultrahigh-purity system needs with Swagelok diaphragm-sealed valves, which are available in a wide variety of sizes, materials, and configurations for a range of applications.
Válvulas de Diafragma: Series DL y DS
Sin empaquetadura, contención totalmente metálica; Presiones de servicio desde vacío hasta 241 bar (3500 psig); Temperaturas de –73 a 121°C (–100 a 250°F)
Valve Lockout Accessory
Features: Limits access to manually actuated valves;Lockout accessory enables compliance with OSHA Lockout/Tagout, Standard 29 CFR Part 1910.147, Control of Hazardous Energy Bright safety orange color promotes high visibility. Other colors are available.
DL and DS Series Diaphragm Valve Technical Report
Features: p surface finish specifications, static particle counting, moisture analysis, hydrocarbon analysis, ionic cleanliness.
Especificación de Proceso de Pureza, Ultra Alta, SC-01, Especi ficación SCS-00001, Revisión C
Este documento especifica las directrices de Swagelok® Company, para la fabricación de productos de pureza ultra alta de acero inoxidable electropulido y de plástico. La información contenida en esta especificación debe utilizarse conjuntamente con la de los catálogos, boletines técnicos e informes de producto.
Instrucciones de Mantenimiento de las Válvulas de Diafragma Series DL y DS
Series DL y DS, Instrucciones de mantenimiento
Instrucciones de Soldadura
La soldadura debe ser realizada por personal cualificado, como se detalla en la Sección IX del reglamento de calderas y depósitos a presión (Boiler Code) de ASME.
Specifications
SS-DLS8MM — Stainless Steel High Purity High Pressure Diaphragm Sealed Valve, 8 mm Swagelok Tube Fitting, Lever Handle
| Attribute | Value |
|---|---|
| Actuator Type | Manuell |
| Body Material | Edelstahl 316L |
| Cleaning Process | Spezialreinigung und -verpackung (SC-11) |
| Connection 1 Size | 8 mm |
| Connection 1 Type | Swagelok® Rohrverschraubung |
| Connection 2 Size | 8 mm |
| Connection 2 Type | Swagelok® Rohrverschraubung |
| CV Maximum | 0.14 |
| Flow Pattern | 2-WegeGerade |
| Gasket | PTFE-beschichtet Edelstahl 316 |
| Handle Color | Grün |
| Handle Style | Hebel |
| Maximum Temperature, °F (°C) | 250 (121) |
| Max Temperature Pressure Rating | 121°C bei 192 BAR/250°F bei 2800 PSIG |
| Minimum Temperature, °F (°C) | -100 (-73) |
| Room Temperature Pressure Rating | 241 BAR bei 20 °C /3500 PSIG bei 70 °F |
| Seat Material | PCTFE |
| Surface Finish | 0,51 µm (20 µin) Ra |
| eClass (4.1) | 37010206 |
| eClass (5.1.4) | 37011800 |
| eClass (6.0) | 37011801 |
| eClass (6.1) | 37011801 |
| eClass (10.1) | 37011801 |
| UNSPSC (4.03) | 40141600 |
| UNSPSC (10.0) | 40141621 |
| UNSPSC (11.0501) | 40141621 |
| UNSPSC (13.0601) | 40141621 |
| UNSPSC (15.1) | 40141621 |
| UNSPSC (17.1001) | 40183102 |
