Válvula de diafragma de alta pureza y alta presión de acero inox., 1/4 pulg. TSW x 3/8 TBW, Mando redondo |
||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specifications
Straight PatternFulfill your high-purity or ultrahigh-purity system needs with Swagelok diaphragm-sealed valves, which are available in a wide variety of sizes, materials, and configurations for a range of applications. Log in or Register to view price ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Warning: No mezcle ni intercambie productos o componentes Swagelok no regulados por normativas de diseño industrial, incluyendo las conexiones finales de los racores Swagelok, con los de otros fabricantes.
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warning: No mezcle ni intercambie productos o componentes Swagelok no regulados por normativas de diseño industrial, incluyendo las conexiones finales de los racores Swagelok, con los de otros fabricantes.
Válvula de diafragma de alta pureza y alta presión de acero inox., 1/4 pulg. TSW x 3/8 TBW, Mando redondo
Log in or Register to view price
Catalogs
Straight Pattern
Fulfill your high-purity or ultrahigh-purity system needs with Swagelok diaphragm-sealed valves, which are available in a wide variety of sizes, materials, and configurations for a range of applications.
Sin empaquetadura, contención totalmente metálica; Presiones de servicio desde vacío hasta 241 bar (3500 psig); Temperaturas de –73 a 121°C (–100 a 250°F)
Features: Limits access to manually actuated valves;Lockout accessory enables compliance with OSHA Lockout/Tagout, Standard 29 CFR Part 1910.147, Control of Hazardous Energy Bright safety orange color promotes high visibility. Other colors are available.
Features: p surface finish specifications, static particle counting, moisture analysis, hydrocarbon analysis, ionic cleanliness.
Este documento especifica las directrices de Swagelok® Company, para la fabricación de productos de pureza ultra alta de acero inoxidable electropulido y de plástico. La información contenida en esta especificación debe utilizarse conjuntamente con la de los catálogos, boletines técnicos e informes de producto.
Series DL y DS, Instrucciones de mantenimiento
La soldadura debe ser realizada por personal cualificado, como se detalla en la Sección IX del reglamento de calderas y depósitos a presión (Boiler Code) de ASME.
Specifications

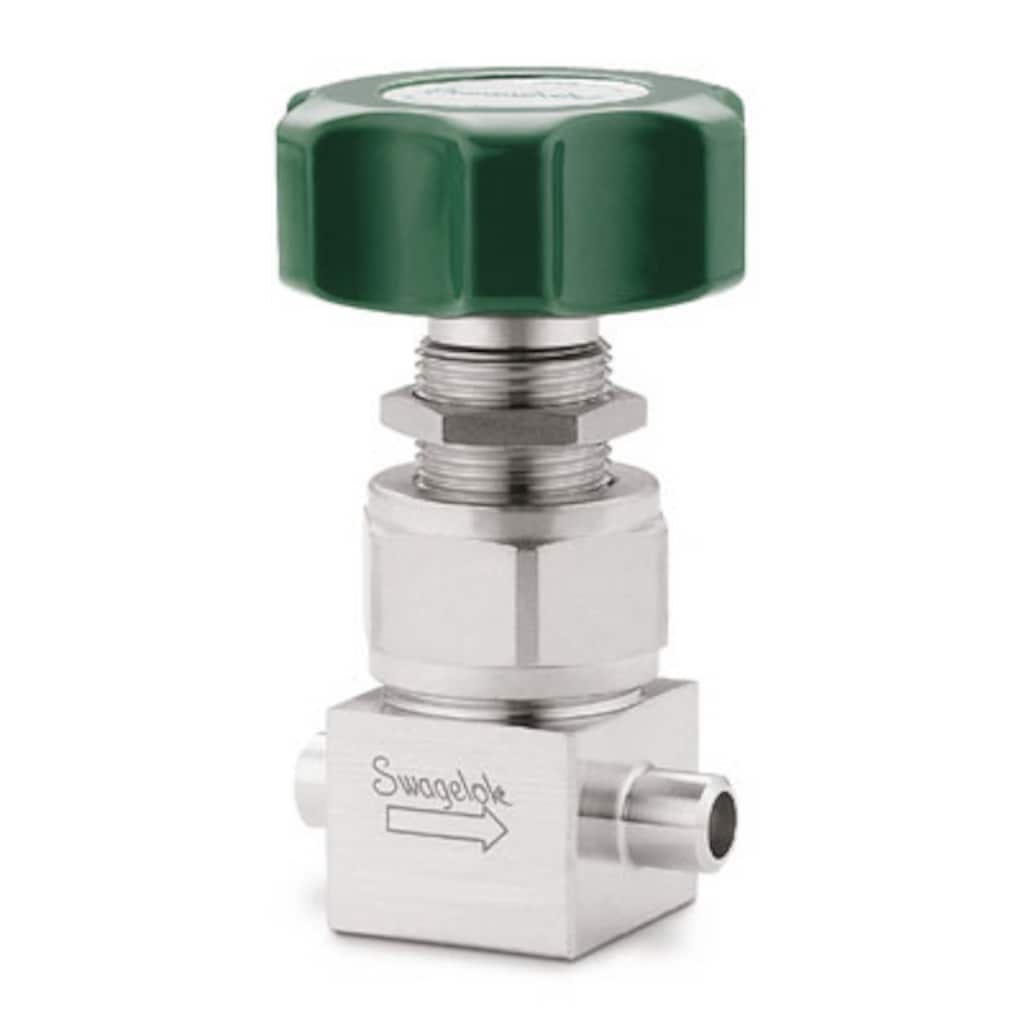

SS-DSTW4 — Válvula de diafragma de alta pureza y alta presión de acero inox., 1/4 pulg. TSW x 3/8 TBW, Mando redondo
| Attribute | Value |
|---|---|
| Body Material | Acero inoxidable 316L |
| Cleaning Process | Limpieza y Embalaje Especial (SC-11) |
| Connection 1 Size | 1/4 pulg. |
| Connection 1 Type | Soldadura de tubo por encastre |
| Connection 2 Size | 1/4 pulg. |
| Connection 2 Type | Soldadura de tubo por encastre |
| CV Maximum | 0.3 |
| Maximum Temperature, °F (°C) | 250 (121) |
| Minimum Temperature, °F (°C) | -100 (-73) |
| eClass (4.1) | 37010206 |
| eClass (5.1.4) | 37011800 |
| eClass (6.0) | 37011801 |
| eClass (6.1) | 37011801 |
| UNSPSC (4.03) | 40141600 |
| UNSPSC (10.0) | 40141621 |
| UNSPSC (11.0501) | 40141621 |
| UNSPSC (13.0601) | 40141621 |
| UNSPSC (15.1) | 40141621 |
| UNSPSC (17.1001) | 40183102 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
