Swagelok® Needle and Metering Valves
Swagelok needle valve and metering valves allow for precise flow control in a wide range of applications.
Needle Valves | Provide reliable flow control using a variety of stem designs, flow patterns, materials, and end connections
Metering Valves | Provide the ability to make fine adjustments to system flow across pressures and flow rates
Swagelok needle valves are available in a variety of configurations to allow users to find options that suit their performance needs and system designs. These needle valves provide reliable operation from basic, low-pressure instrumentation applications to corrosive, high-temperature, high-pressure applications. Swagelok needle valves are available with flow coefficients ranging from 0.12 to 2.4. They are also available with low emissions (Low-E) certification per API 624.
Swagelok metering valves are also available in a variety of configurations, are suitable for low- and high-pressure use, and can deliver accurate flow rate control in analytical, instrumentation, and research applications. They provide fine adjustments in applications demanding precise levels of flow, delivering flow coefficients from 0.004 to 0.16. Various handle options for metering valves allow for repeatable flow adjustments, enhanced control for setting flows, or flow setting adjustment with a screwdriver in low-pressure applications.
Categorías de Válvulas de Aguja y Regulación

Válvulas con Bonete roscado para Manómetros
Las válvulas para manómetro con bonete roscado ofrecen un aislamiento controlado y la conexión de dispositivos de medición de proceso para protegerlos de golpes de ariete y aumentos bruscos de la presión.

Válvulas de Aguja de Alta Presión, Sno-Trik Serie 410, 445, 645, 945
Las válvulas de aguja Sno-Trik cumplen los requisitos de las aplicaciones de alta presión—hasta 3100 bar (45.000 psig)—y tienen un orificio de prueba para la detección de fugas.

Válvulas de Aguja para Media Presión, Series NV y NVT
Las válvulas de aguja de media presión serie NVT tienen un vástago no giratorio y están disponibles en modelos en ángulo y recto para presiones hasta 4134 bar (60.000 psi).

Válvulas de Aguja para Servicio General, Series GU y F10
Para utilizar en aplicaciones de servicio general para aislar los fluidos del sistema. La aguja no giratoria de acero inoxidable favorece el cierre estanco y una larga vida útil.

Válvulas de Drenaje Serie 6DB
Las válvulas de drenaje de acero inoxidable 316 tienen una construcción con bonete de unión para mayor seguridad y empaquetadura de Grafoil® para un rendimiento a alta temperatura.

Válvulas de aguja con bonete integral, Series O, 1, 18, 20, 26, y D
Estas válvulas, que incorporan un sistema de empaquetadura autocompensada y un diseño compacto, aseguran un rendimiento óptimo a presiones hasta 6000 psig y temperaturas de hasta 600°F.

Válvulas de aguja para servicio crítico, Series N y HN
극한 서비스 유니온-보닛 니들 밸브는 사이클 수명을 강화하는 SS 스템 나사와 개방 위치에서 조절이 가동하도록 설계된 패킹 볼트가 있습니다.

Válvulas de macho cónico, Series 4P y 5P
Las válvulas de macho cónico desplazable Swagelok® incorporan un obturador no giratorio que crea un cierre estanco y un orificio pasante para maximizar el caudal y facilitar la limpieza.

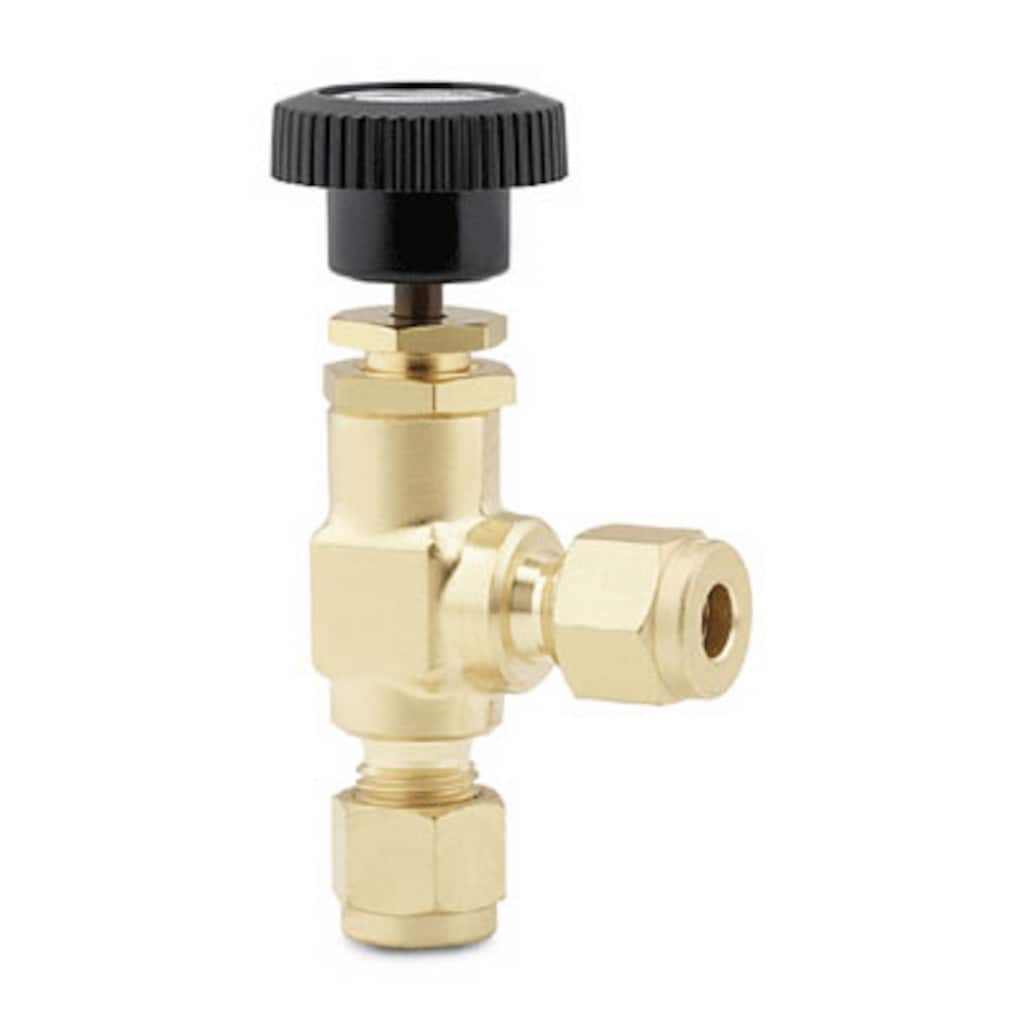

Válvulas de regulación, Series S, M y 31
Conozca las válvulas de regulación Swagelok®, disponibles en modelos recto y en ángulo, en acero inoxidable 316 y latón y con variedad de conexiones finales y modelos de mandos.
Needle and Metering Valves Catalogs
Locate detailed product information, including materials of construction, pressure and temperature ratings, options, and accessories.
Features: Straight and angle patterns; Pressures up to 6000 psig (413 bar); Temperatures up to 450°F (232°C) with PTFE packing; up to 650°F (343°C) with Grafoil® packing
OG, 1G 및 92 시리즈 수동 및 공기작동식 모델 직선형, 직각형 및 교차형 몸체 316 SS 및 황동 몸체 재질
Features: Stainless steel construction; Nonrotating ball-tip and plug-tip stem designs; Roddable (plug-tip design)
N 시리즈 및 HN 시리즈; 최대 사용 압력 10 000 psig (689 bar); PTFE 패킹 사용시 온도 범위 –53 ~ 232°C (–65 ~ 450°F); Grafoil® 패킹 사용시 최대 648°C (1200°F); 316 스텐레스강, 400, 20, 600 및 C-276 합금, 티타늄 재질
Features: Working pressures up to 10 000 psig (689 bar); Temperatures from –65 to 450°F (–53 to 232°C) with PTFE packing; up to 1000°F (537°C) with Grafoil® packing; Alloy 625, alloy 825, Alloy 2507, and 6-moly materials
4P 및 5P 시리즈; 세정을 위한 작은 봉을 넣을 수 있는 직통 오리피스 사용으로 유량 최대화; 최대 사용 압력 6000 psig (413 bar); 패킹이 나사 아래에 위치; 시트 및 스템 팁을 교체할 수 있도록 설계
Features: The Swagelok® compact gauge valve provides fast, convenient installation and installation and gauge maintenance in a lightweight package and smaller footprint than conventional assemblies.
O, 1, 18, 20, 및 26 시리즈; 활하중 패킹 시스템; 소형 설계; 최대 사용 압력 6000 psig (413 bar); 최대 온도 315°C (600°F)
특징: 316 스텐레스강 구조; 537°C (1000°F)까지의 온도; 중압 (MP) 피팅, 크기—1/4 ~ 1 in., 압력 등급—최대 20 000 psig (1378 bar); 고압 (HP) 피팅, 크기—1/4 ~ 9/16 in., 압력 등급—최대 60 000 psig (4134 bar); NACE® MR0175/ISO15156 적합
직선형 유량 계수 (Cv) 0.004에서 0.04; 저압 및 고압용; 반복가능한 눈금 (Vernier) 핸들 사용가능; 황동 및 316 스텐레스강 재질
Features: 316 stainless steel materials; Union-bonnet construction for safety; Grafoil® packing for high-temperature performance; Swagelok® tube fitting, female NPT, and tube or pipe socket weld end connections
D 시리즈; 3000 psig (206 bar)의 상용 압력; PEEK 스템 팁 사용 시 232°C (450°F)까지 사용 가능; 스텐레스강, 황동 및 400 합금 재질
Features: Limits access to manually actuated valves;Lockout accessory enables compliance with OSHA Lockout/Tagout, Standard 29 CFR Part 1910.147, Control of Hazardous Energy Bright safety orange color promotes high visibility. Other colors are available.

Calculate Flow Rate for the Right Valve Selection
Use our valve flow coefficient (Cv) calculator to chose a valve sized correctly for your needs.
Use the ToolSwagelok Resources Curated for You

How to Select the Right Valves for Your Industrial Fluid System
Learn how to apply the practical STAMPED method to select the valves most suited to your industrial fluid or sampling system design applications.

누출 저감(Low-E) 밸브로 비산 누출 비용 최소화
비산 누출은 화학 및 정유 산업에서 점점 더 큰 문제로 대두되고 있습니다. 인증 받은 누출 저감(Low-E) 밸브를 사용하면 시설과 수익성을 보호할 수 있습니다. 이 게시글에서 누출 저감 밸브가 무엇인지, 어떤 테스트를 거치는지, 플랜트에 어떻게 도움이 되는지 알아보십시오.

블록 밸브로 산업용 유체 시스템을 격리하는 방법
플랜트 안전을 유지하려면 유지보수 작업 전에 산업용 유체 시스템 라인을 격리하는 것이 필수입니다. 유체 시스템 라인을 격리하는 가장 안전한 방법은 블록 밸브 두 개를 설치하는 것입니다. 시스템에 적합한 구성을 설계하는 방법을 알아보십시오.

하나의 새로운 밸브, 반도체 제조 기술을 바꿀 수 있는 세 가지 이유
혁신적인 최신 원자층 증착(ALD, Atomic Layer Deposition) 밸브 기술이 어떻게 첨단 기술 반도체 제조 시장을 변화시킬 수 있는지 소개합니다.

니들 밸브
Swagelok 니들 밸브는 일반 유틸리티 서비스, 일체형 보닛, 스크류 보닛, 단조 몸체, 토글, 극한 서비스 유니온 보닛, 계장 블로우다운, 컴팩트 게이지, 비회전 스템, 라이징 플러그 밸브 구성에 최대 45 000 psig(3100 bar)의 압력 등급으로 공급 가능합니다. 유로 패턴에는 직선형, 직각형, 크로스가 포함되며, 작동 옵션으로는 수동 및 공압식을 선택할 수 있습니다.

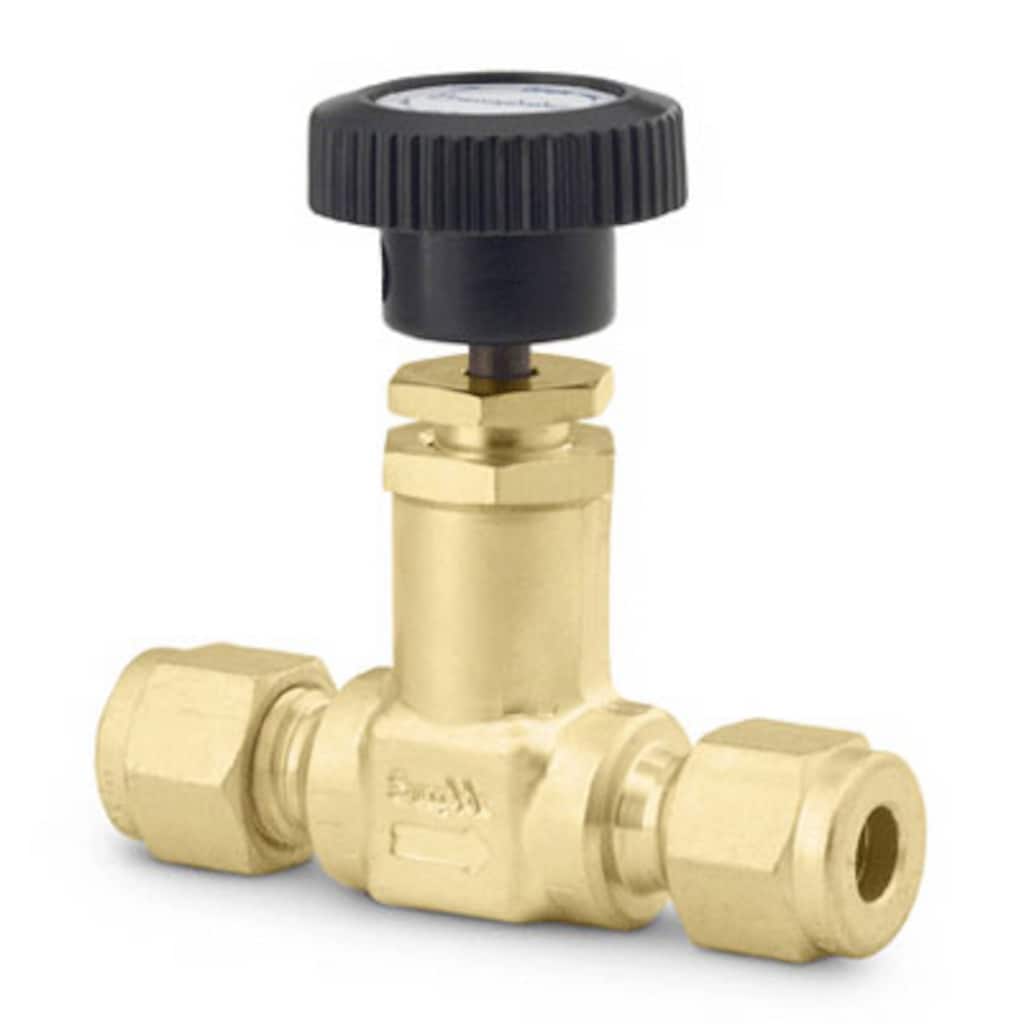

미터링 밸브
