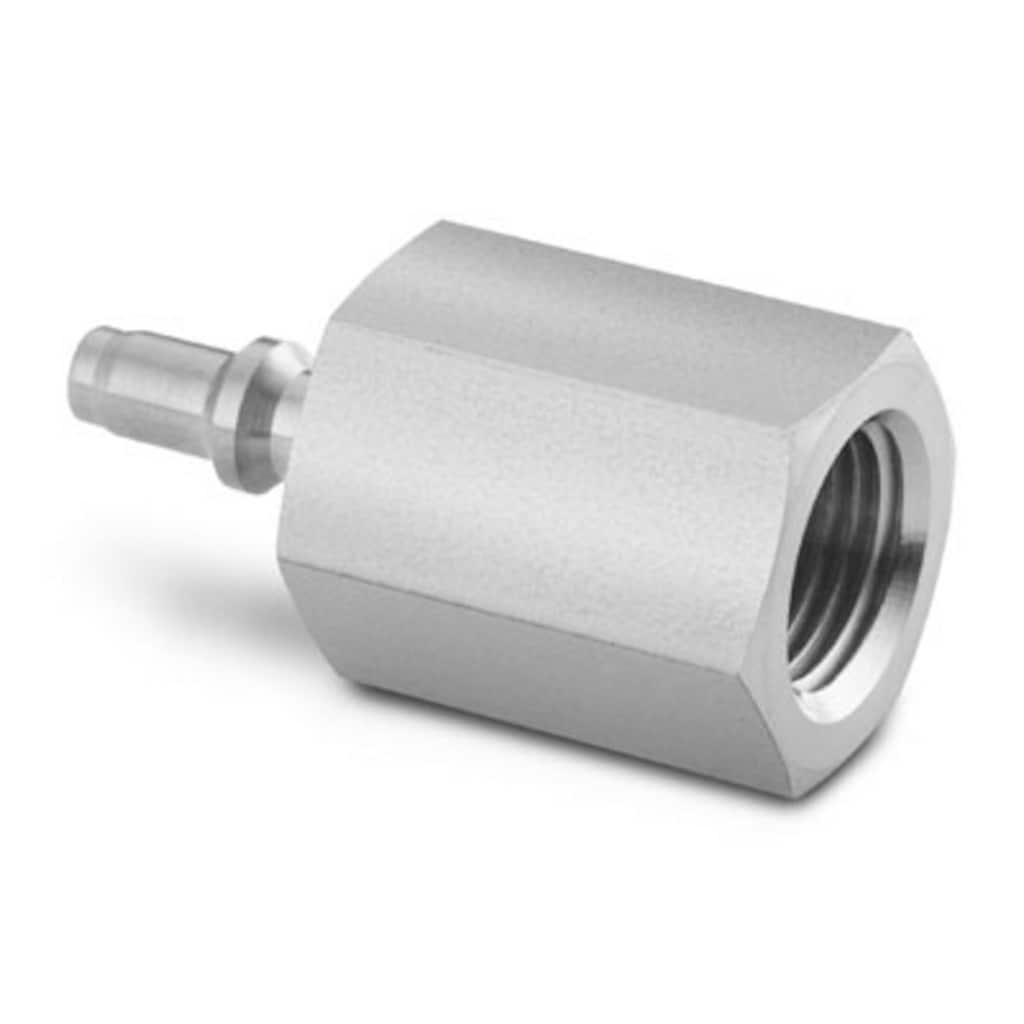

Tige de raccord rapide miniature en acier inoxydable sans vanne, Cv de 0,06, filetage NPT femelle 1/8 po
Part #: SS-QM2-S-2PF
|
||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specifications
TigesRéalisez rapidement et simplement des raccordements, avec les raccords rapides miniatures Swagelok, pour les applications, dans un laboratoire par exemple, qui nécessitent d'effectuer de fréquents raccordements tout en limitant les inclusions d'air et les déversements de fluide avec un faible volume mort, le tout dans un espace restreint. Log in or Register to view price ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Warning: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants. |
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warning: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants.
Tige de raccord rapide miniature en acier inoxydable sans vanne, Cv de 0,06, filetage NPT femelle 1/8 po
Log in or Register to view price
Catalogs
Tiges
■ 着脱時のひねり、回転、レンチ操作が不要/■ 型式: シングル・エンド・シャット・オフ(SESO)型、ダブル・エンド・シャット・オフ(DESO)型、フル・フロー型
Warning: System pressure must not exceed 100 psig (6.9 bar) at 70°F (20°C) when coupling and uncoupling this product. When uncoupling single-end shutoff quick-connects, system pressure on stem side will vent to atmosphere
Specifications
SS-QM2-S-2PF — Tige de raccord rapide miniature en acier inoxydable sans vanne, Cv de 0,06, filetage NPT femelle 1/8 po
| Attribute | Value |
|---|---|
| Matériau du corps | Acier inoxydable 316 |
| Procédé de nettoyage | Nettoyage et conditionnement standard (SC-10) |
| Dimension du raccordement 1 | 1/8 po |
| Type du raccordement 1 | Filetage NPT femelle |
| Cv maximal | 0,06 en association avec un corps à passage intégral ; 0,06 en association avec un corps standard ou à écoulement inversé |
| Lubrifiant | Pas de lubrifiant sur aucun composant |
| Matériau des joints toriques | Élastomère fluorocarboné FKM |
| Pression nominale, accouplé, à la temp. max. | 100 PSIG À 400°F / 6,8 BAR À 204°C |
| Pression nominale, accouplé, à temp. amb. | 4000 PSIG À 70°F / 275 BAR À 21°C |
| Série | QM2 |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| eClass (10.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
Similar Products
|
Part #
|
Body Material
|
Connection 1 Size
|
Connection 1 Type
|
Connection 2 Size
|
Connection 2 Type
|
|
|---|---|---|---|---|---|---|
| B-QM2-S-200 | 真ちゅう | 1/8 インチ | Swagelok®チューブ継手 | - | - | View Product |
| B-QM2-S-2PM | Brass | 1/8 in. | Male NPT | - | - | View Product |
| SS-QM2-S-100 | 316 Stainless Steel | 1/16 in. | Swagelok® Tube Fitting | - | - | View Product |
| SS-QM2-S-200 | Acier inoxydable 316 | 1/8 po | Raccord Swagelok® pour tubes | - | - | View Product |
| SS-QM2-S-2PM | Acier inoxydable 316 | 1/8 po | Filetage NPT mâle | - | - | View Product |
