Unión recta Swagelok de Acero inox., 1/4 pulg. OD x 1/16 pulg. Swagelok

Spécifications

Attribut Valeur
Matériau du corps Acier inoxydable 316
Traversant Non
Procédé de nettoyage Nettoyage et conditionnement standard (SC-10)
Dimension du raccordement 1 1/4 po
Type du raccordement 1 Raccord pour tubes Swagelok® femelle
Dimension du raccordement 2 1/16 po
Type du raccordement 2 Raccord pour tubes Swagelok® femelle
Réducteur de débit Non
eClass (4.1) 37070710
eClass (5.1.4) 37020590
eClass (6.0) 37020500
eClass (6.1) 37020590
UNSPSC (4.03) 40141713
UNSPSC (10.0) 40142600
UNSPSC (11.0501) 40142600
UNSPSC (13.0601) 40183100
UNSPSC (15.1) 40183100
UNSPSC (17.1001) 40161516
Droits

Des raccords étanches, résistants aux vibrations et qui garantissent un parfait maintien des tubes. La remarquable fiabilité des raccords pour tubes Swagelok est prouvée par le succès constant de ces raccords depuis plus de 65 ans. Elle a par ailleurs été documentée dans de nombreux rapports d'essais publiés, y compris dans des comptes rendus de tests effectués dans des conditions extrêmes.

Contacto

Si tiene preguntas sobre este producto, contacte con su centro local autorizado de ventas y servicio. También pueden informarle sobre los servicios de apoyo para ayudarle a sacar el máximo partido a su inversión.


Selección fiable de un producto:

El diseñador y usuario del sistema deben revisar la documentación técnica para asegurar una correcta selección de producto. Al seleccionar un producto, habrá que tener en cuenta el diseño global del sistema para conseguir un servicio seguro y sin problemas. El diseñador de la instalación y el usuario son los responsables de la función del componente, de la compatibilidad de los materiales, de los rangos de operación apropiados, así como de la operación y mantenimiento del mismo.

Attention: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants.

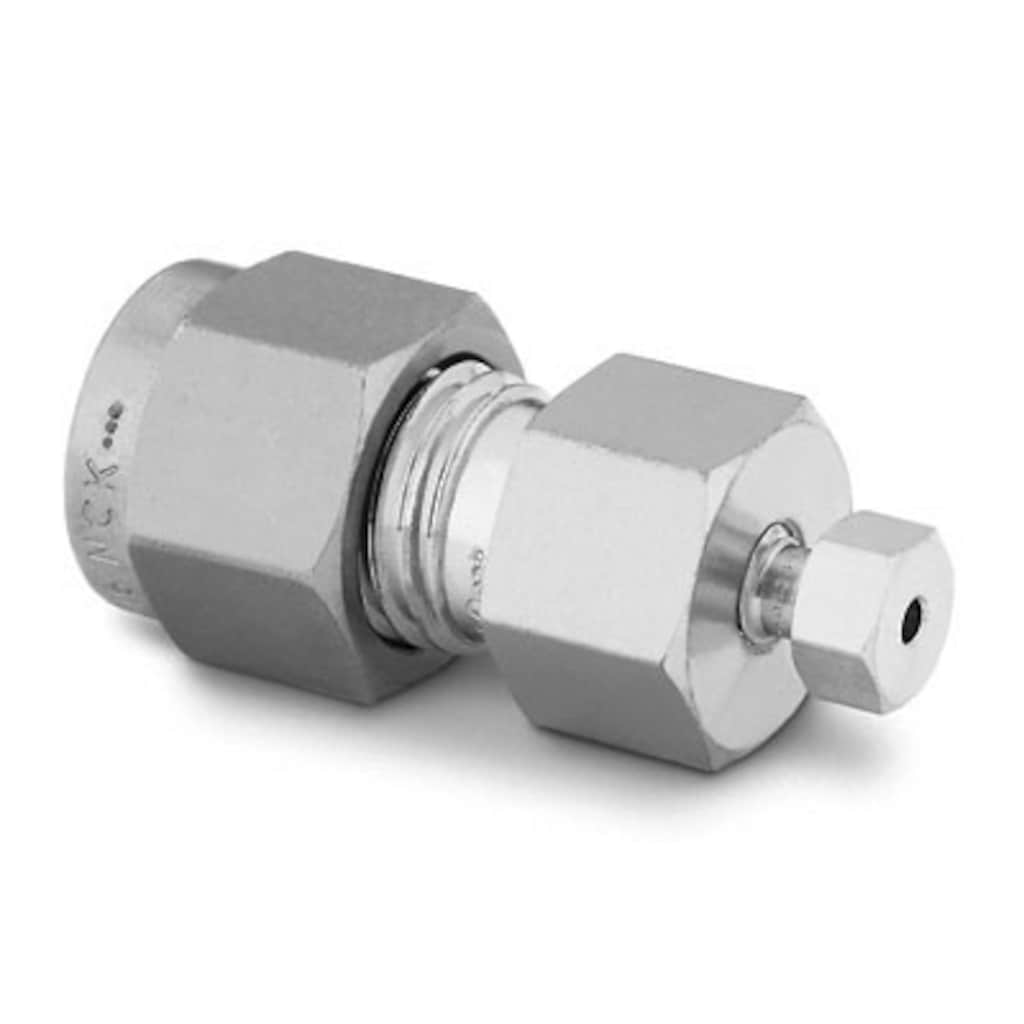

Unión recta Swagelok de Acero inox., 1/4 pulg. OD x 1/16 pulg. Swagelok

Réf. pièce : SS-400-6-1FGC
Afficher le catalogue

Ajouter aux favoris

Catalogues

Droits

Des raccords étanches, résistants aux vibrations et qui garantissent un parfait maintien des tubes. La remarquable fiabilité des raccords pour tubes Swagelok est prouvée par le succès constant de ces raccords depuis plus de 65 ans. Elle a par ailleurs été documentée dans de nombreux rapports d'essais publiés, y compris dans des comptes rendus de tests effectués dans des conditions extrêmes.

Spécifications

SS-400-6-1FGC — Unión recta Swagelok de Acero inox., 1/4 pulg. OD x 1/16 pulg. Swagelok

Attribut Valeur
Matériau du corps Acier inoxydable 316
Traversant Non
Procédé de nettoyage Nettoyage et conditionnement standard (SC-10)
Dimension du raccordement 1 1/4 po
Type du raccordement 1 Raccord pour tubes Swagelok® femelle
Dimension du raccordement 2 1/16 po
Type du raccordement 2 Raccord pour tubes Swagelok® femelle
Réducteur de débit Non
eClass (4.1) 37070710
eClass (5.1.4) 37020590
eClass (6.0) 37020500
eClass (6.1) 37020590
UNSPSC (4.03) 40141713
UNSPSC (10.0) 40142600
UNSPSC (11.0501) 40142600
UNSPSC (13.0601) 40183100
UNSPSC (15.1) 40183100
UNSPSC (17.1001) 40161516
Sélectionner un nouveau produit avec des caractéristiques similaires

Ressources

Schémas
2D

Des représentations en deux dimensions sont disponibles pour ce produit. Télécharger le fichier CAO.

3D

Des représentations en trois dimensions sont disponibles pour ce produit. Télécharger le fichier CAO.

Schéma

Des schémas sont disponibles pour ce produit. Télécharger les fichiers.
