Tubing and Tube Accessories — Support System

Support system available with these specifications:

1/4 to 2 in. (6 to 25 mm)
304 or 316 stainless steel hardware material
Polypropylene, 303, 304, or 316 stainless steel, carbon steel, 316 stainless steel clamp with polypropylene cushion, polyamide, CF8M body material

Your local authorized Swagelok sales and service center may have additional options.

Part #	Body Material	Tube OD	Length	Bend Radius
304-S5-WPE	304 Stainless Steel	-	3.94 in. (100 mm) Length	-

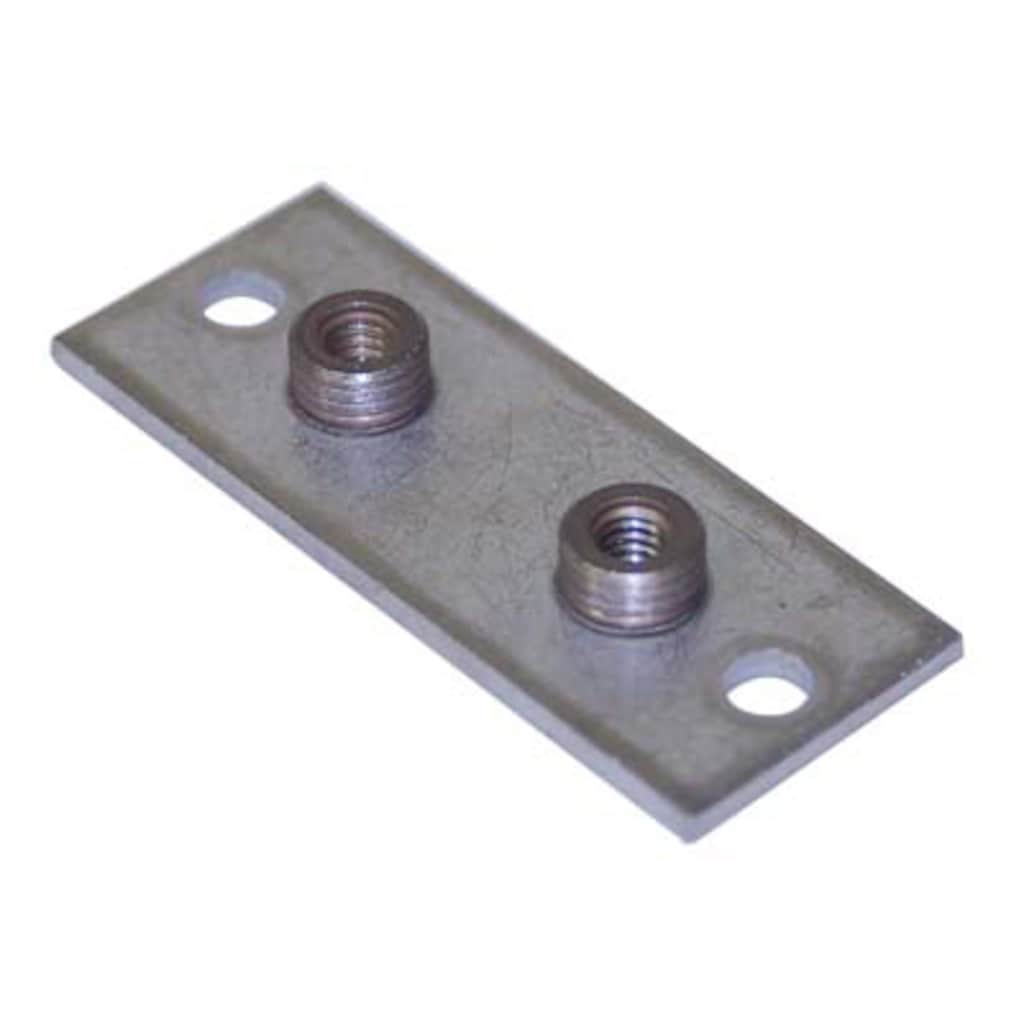

304-S3-WPE	304 Stainless Steel	-	3.07 in. (78.0 mm) Length	-

304-S6-WPE	304 Stainless Steel	-	4.57 in. (116 mm) Length	-

304-S1-WPEM	304 Stainless Steel	-	64 mm (2.52 in.) Length	-

304-S1-WPE	304 Stainless Steel	-	2.52 in. (64.0 mm) Length	-

Part #	Body Material	Tube OD	Length	Bend Radius
SS-S0-SNM	316 Stainless Steel	-	-	-

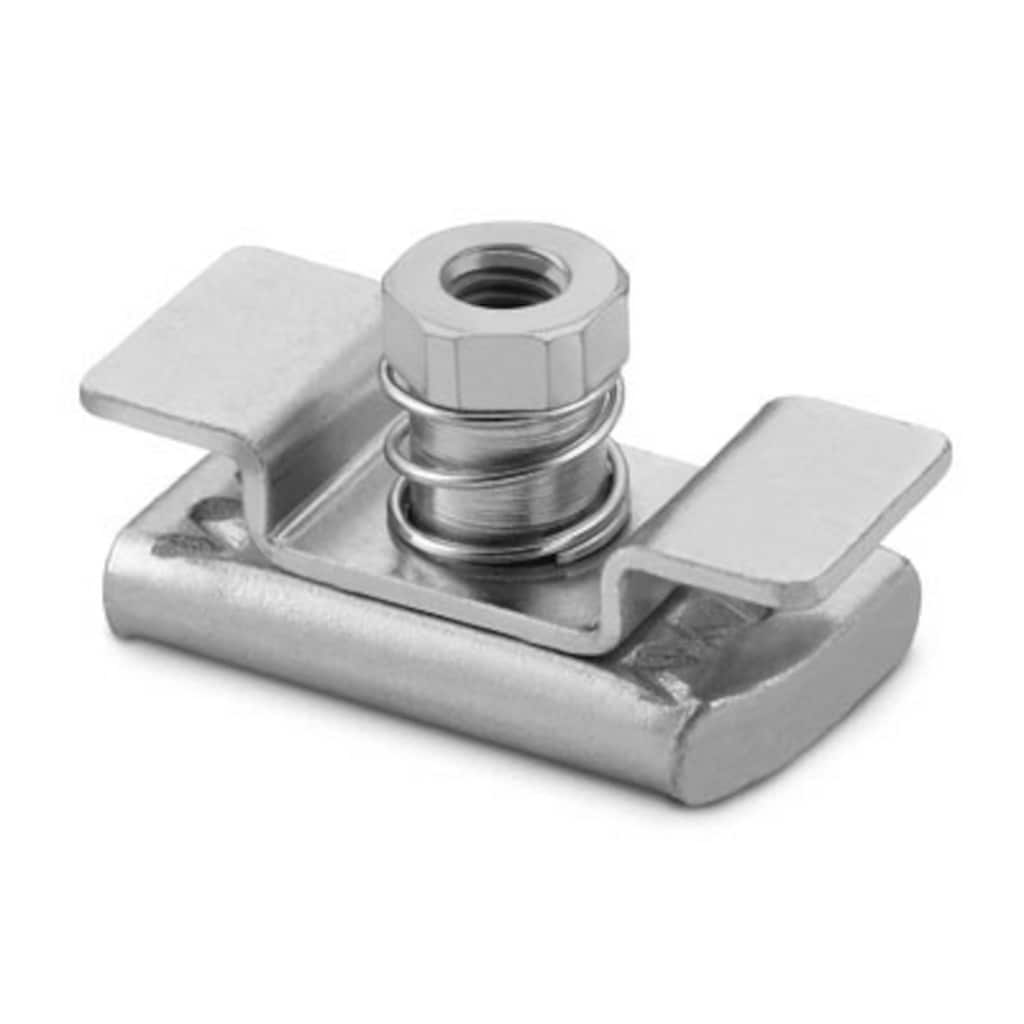

S-S0-SNM	Carbon Steel	-	-	-

SS-S0-SN	316 Stainless Steel	-	-	-

S-S0-SN	Carbon Steel	-	-	-

Part #	Body Material	Tube OD	Length	Bend Radius
304-S3-PA-8T	Polyamide	1/2 in.	-	-

304-S3-PP-10T	Polypropylene	5/8 in.	-	-

304-S5-PP-24T	Polypropylene	1 1/2 in.	-	-

304-S1-PP-8TM	Polypropylene	8 mm	-	-

304-S3-PP-8T	Polypropylene	1/2 in.	-	-

304-S5-PP-20T	Polypropylene	1 1/4 in.	-	-

304-S1-PP-6TM	Polypropylene	6 mm	-	-

304-S3-PP-18TM	Polypropylene	18 mm	-	-

304-S3-PP-25TM	Polypropylene	25 mm	-	-

304-S1-PA-4T	Polyamide	1/4 in.	-	-

304-S1-PP-10TM	Polypropylene	10 mm	-	-

316-S3-PP-8T	Polypropylene	1/2 in.	-	-

304-S3-PA-16T	Polyamide	1 in.	-	-

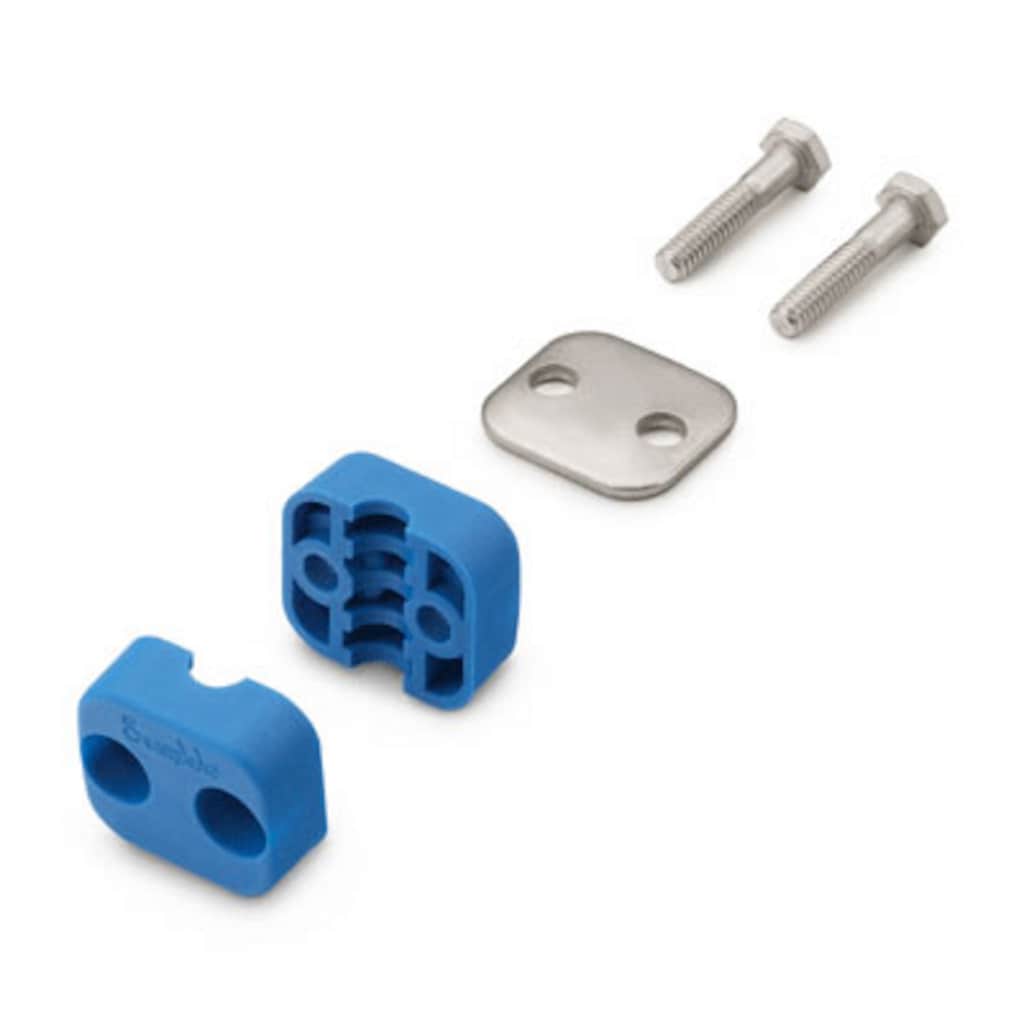

304-S1-PP-6T	Polypropylene	3/8 in.	-	-

304-S3-PP-16TM	Polypropylene	16 mm	-	-

304-S1-PP-4T	Polypropylene	1/4 in.	-	-

304-S1-PP-12TM	Polypropylene	12 mm	-	-

304-S3-PP-12T	Polypropylene	3/4 in.	-	-

304-S3-PP-14T	Polypropylene	7/8 in.	-	-

304-S3-PP-16T	Polypropylene	1 in.	-	-

Additional parts may be available. Select Attributes

Part #	Body Material	Tube OD	Length	Bend Radius
SS-TBC8	316 Stainless Steel Clamp with Polypropylene Cushion	1/2 in.	-	-

SS-TBC6	316 Stainless Steel Clamp with Polypropylene Cushion	3/8 in.	-	-

S-TBC8	Carbon Steel	1/2 in.	-	-

S-TBC6	Carbon Steel	3/8 in.	-	-

SS-TBC4	316 Stainless Steel Clamp with Polypropylene Cushion	1/4 in.	-	-

SS-TBC12	316 Stainless Steel Clamp with Polypropylene Cushion	3/4 in.	-	-

SS-TBC16	316 Stainless Steel Clamp with Polypropylene Cushion	1 in.	-	-

S-TBC12	Carbon Steel	3/4 in.	-	-

S-TBC4	Carbon Steel	1/4 in.	-	-

Part #	Body Material	Tube OD	Length	Bend Radius
SS-TBP8	316 Stainless Steel	1/2 in.	-	-

SS-TBP6	316 Stainless Steel	3/8 in.	-	-

SS-TBP4	316 Stainless Steel	1/4 in.	-	-

SS-TBP16	316 Stainless Steel	1 in.	-	-

SS-TBP12	316 Stainless Steel	3/4 in.	-	-

Part #	Body Material	Tube OD	Length	Bend Radius

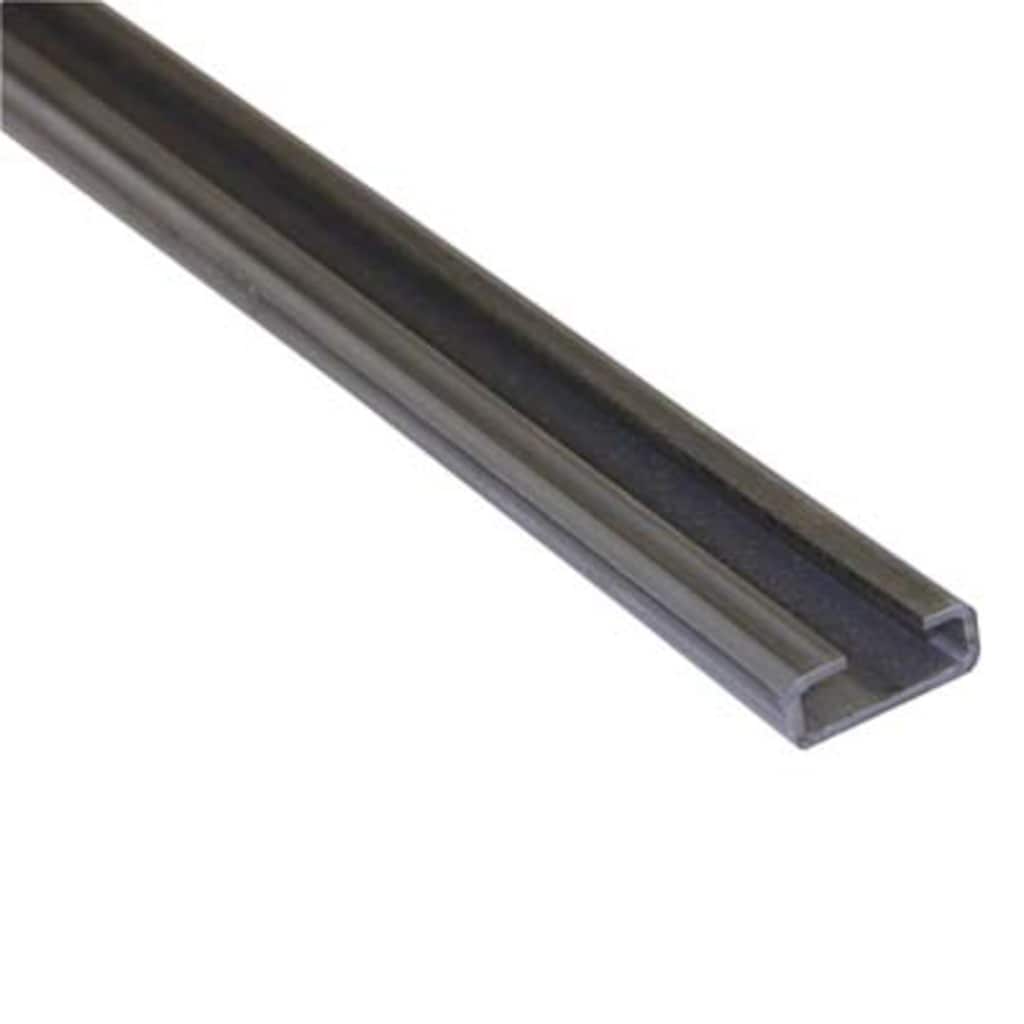

303-S0-R-3.3	303 Stainless Steel	-	3.3 ft (1 m)	-

303-S0-R-6.6	303 Stainless Steel	-	6.6 ft (2 m)	-

Part #	Body Material	Tube OD	Length	Bend Radius

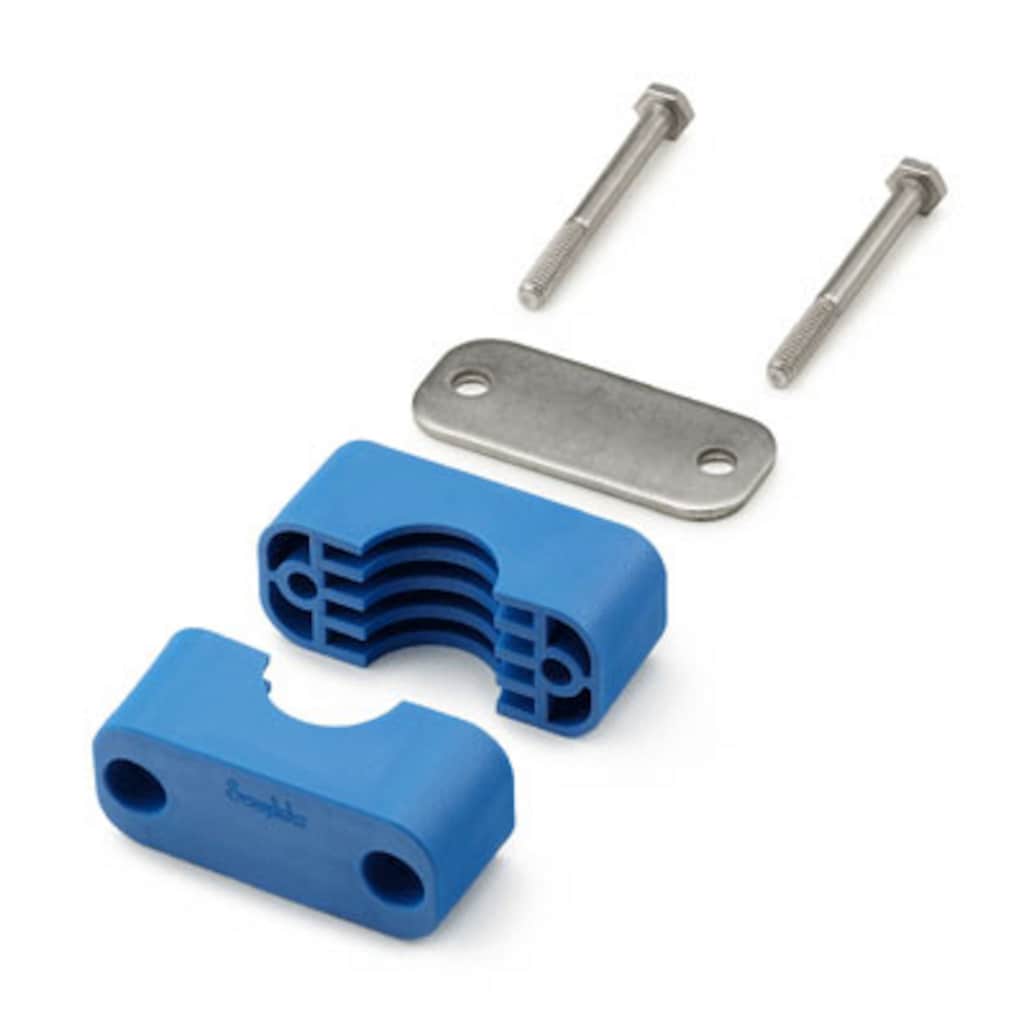

304-S5-PP-12P	Polypropylene	3/4 in.	-	-

304-S5-PP-16P	Polypropylene	1 in.	-	-

304-S3-PP-8P	Polypropylene	1/2 in.	-	-

304-S5-PP-20P	Polypropylene	1 1/4 in.	-	-

304-S6-PP-24P	Polypropylene	1 1/2 in.	-	-

304-S6-PP-32T	Polypropylene	2 in.	-	-

Part #	Body Material	Tube OD	Length	Bend Radius
304-S1-PP-4T-ST	Polypropylene	1/4 in.	-	-

304-S3-PP-8T-ST	Polypropylene	1/2 in.	-	-

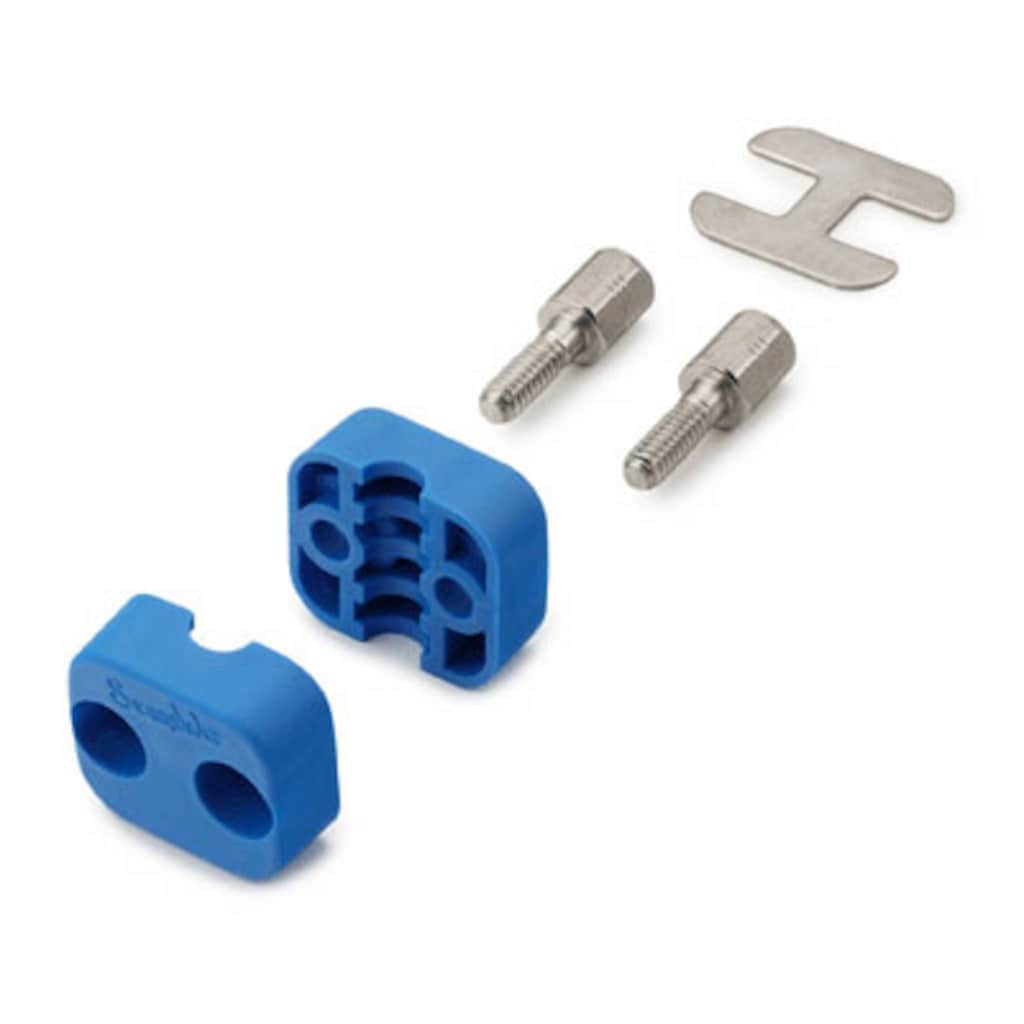

304-S1-PP-6T-ST	Polypropylene	3/8 in.	-	-

Part #	Body Material	Tube OD	Length	Bend Radius
304-S6-WP	304 Stainless Steel	-	3.46 in. (87.9 mm) Length	-

304-S5-WP	304 Stainless Steel	-	2.76 in. (70.1 mm) Length	-

304-S3-WP	304 Stainless Steel	-	1.97 in. (50.0 mm) Length	-

304-S1-WP	304 Stainless Steel	-	1.42 in. (36.1 mm) Length	-

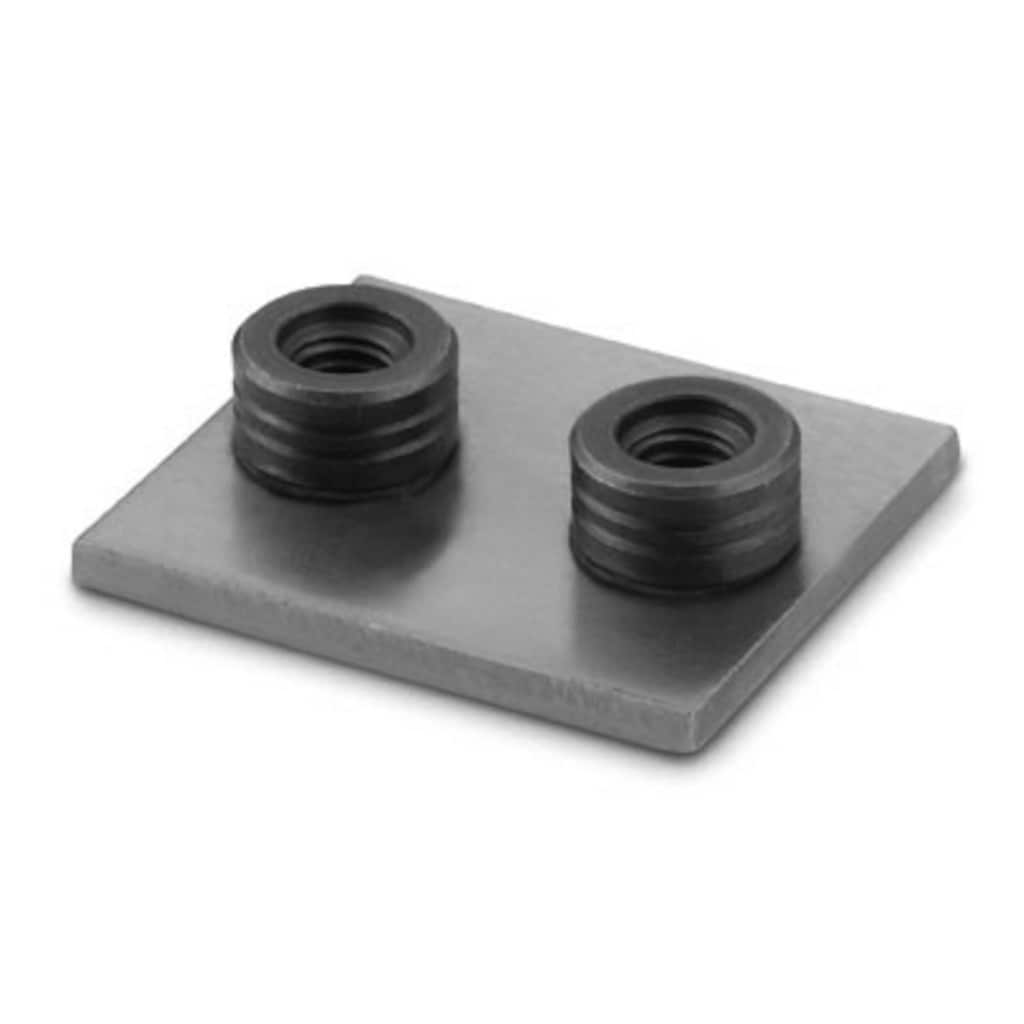

304-S1-WPM	304 Stainless Steel	-	36 mm (1.42 in.) Length	-

Part #	Body Material	Tube OD	Length	Bend Radius
304-S1T-PP-6TM	Polypropylene	6 mm	-	-

304-S3T-PP-16T	Polypropylene	1 in.	-	-

304-S1T-PP-4T	Polypropylene	1/4 in.	-	-

304-S1T-PP-6T	Polypropylene	3/8 in.	-	-

304-S3T-PP-12T	Polypropylene	3/4 in.	-	-

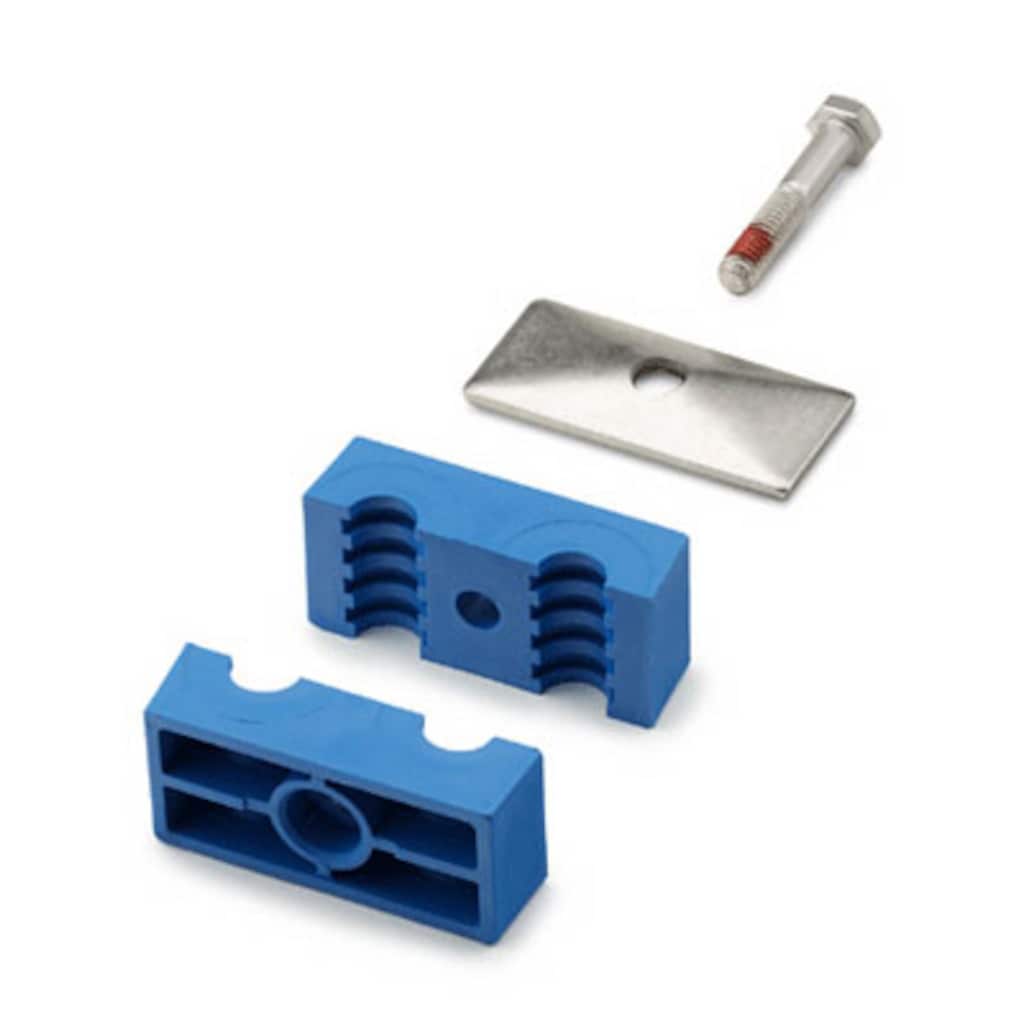

304-S3T-PP-8T	Polypropylene	1/2 in.	-	-

304-S1T-PP-10TM	Polypropylene	10 mm	-	-

Part #	Body Material	Tube OD	Length	Bend Radius
SS-S0-RN	CF8M	-	-	-

SS-S0-RNM	CF8M	-	-	-

Part #	Body Material	Tube OD	Length	Bend Radius
304-S1T-WPM	304 Stainless Steel	-	37 mm (1.46 in.) Length	-

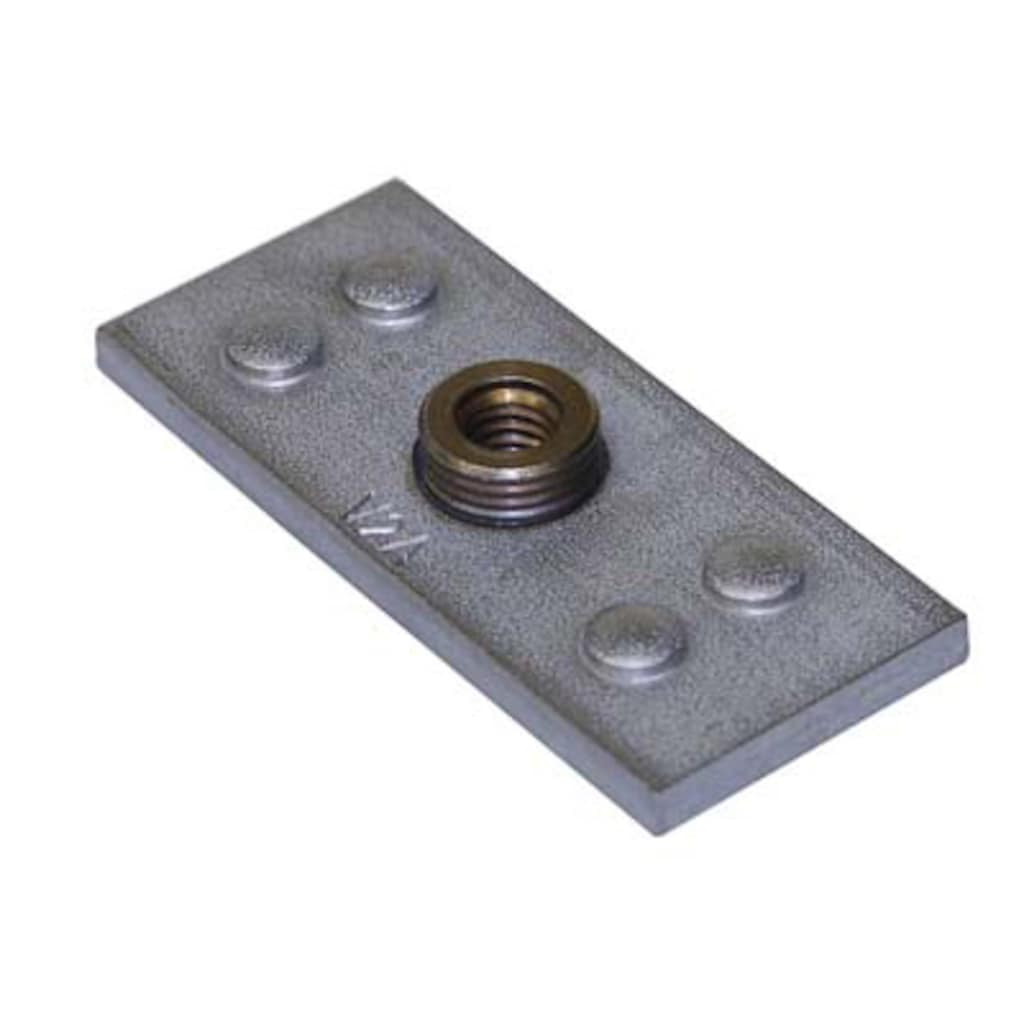

304-S3T-WP	304 Stainless Steel	-	2.76 in. (70.1 mm) Length	-

304-S1T-WP	304 Stainless Steel	-	1.42 in. (36.1 mm) Length	-

Part #	Body Material	Tube OD	Length	Bend Radius
304-S1T-PP-12TM	Polypropylene	12 mm	-	-

Part #	Body Material	Tube OD	Length	Bend Radius
MS-TSS-6	Polypropylene	3/8 in.	-	-

MS-TSS-8	Polypropylene	1/2 in.	-	-

MS-TSS-4	Polypropylene	1/4 in.	-	-
