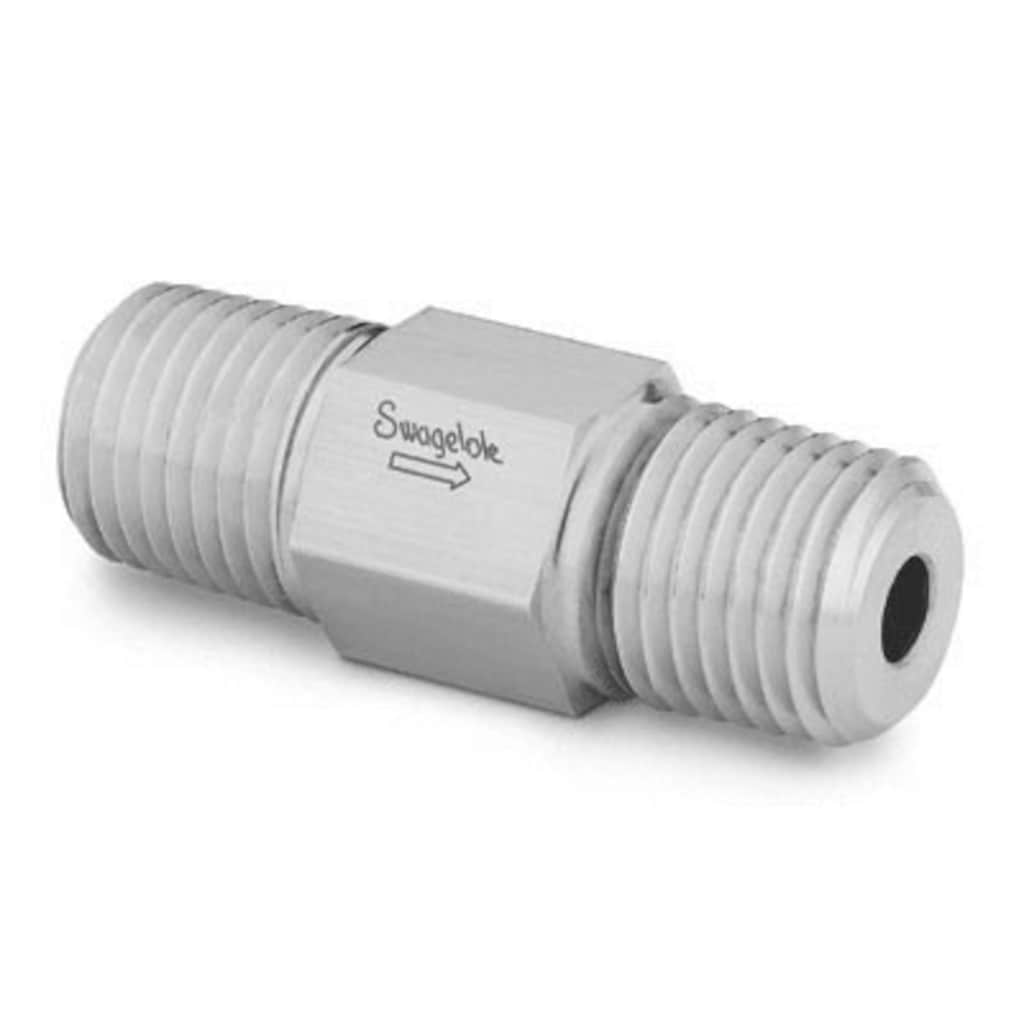

Stainless Steel 1-Piece Poppet Check Valve, Fixed Pressure, 1/4 in. MNPT, 25 psig (1.8 bar)
Код изделия: SS-4CP2-25
|
||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Технические характеристики
фиксир. давлениеКонтролируйте обратный поток в системах общего назначения и высокой степени чистоты с помощью обратных клапанов Swagelok, которые предлагаются в широком диапазоне регулируемых и фиксированных значений давления открытия. Войдите или зарегистрируйтесь, чтобы просмотреть цену お問い合わせ本製品に関するご質問は、担当のスウェージロック指定販売会社までお問い合わせください。指定販売会社は、投資を最大限に活用するためのアドバイスも提供いたします。
安全な製品の選定について：
システム設計者およびユーザーは、製品カタログの内容をすべてご覧になった上で、安全な製品の選定を行ってください。 安全にトラブルなく機能するよう、システム全体の設計を考慮して、製品をご選定ください。 機能、材質の適合性、数値データなどを考慮し製品を選定すること、また、適切な取り付け、操作およびメンテナンスを行うのは、システム設計者およびユーザーの責任ですので、十分にご注意ください。 Предупреждение: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
|
安全な製品の選定について：
システム設計者およびユーザーは、製品カタログの内容をすべてご覧になった上で、安全な製品の選定を行ってください。 安全にトラブルなく機能するよう、システム全体の設計を考慮して、製品をご選定ください。 機能、材質の適合性、数値データなどを考慮し製品を選定すること、また、適切な取り付け、操作およびメンテナンスを行うのは、システム設計者およびユーザーの責任ですので、十分にご注意ください。
Предупреждение: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
Stainless Steel 1-Piece Poppet Check Valve, Fixed Pressure, 1/4 in. MNPT, 25 psig (1.8 bar)
Код изделия: SS-4CP2-25
Посмотреть каталог
Войдите или зарегистрируйтесь, чтобы просмотреть цену
Каталоги
фиксир. давление
Контролируйте обратный поток в системах общего назначения и высокой степени чистоты с помощью обратных клапанов Swagelok, которые предлагаются в широком диапазоне регулируемых и фиксированных значений давления открытия.
Check Valves, C, CA, CH, CP, and CPA Series
Features: Working pressures up to 6000 psig (413 bar); Adjustable and fixed cracking pressures Variety of end connections; 316 stainless steel and brass materials
Thread and End Connection Identification Guide
Features: Step-by-step identification procedure for threads and end connections.
Standard Cleaning and Packaging SC-10 Specification SCS-00010 Revision B
Swagelok® Specification SC-10 defines the cleaning, lubrication, assembly, and packaging requirements for standard Swagelok products and describes practices used to meet these requirements.
Valve Sizing Technical Bulletin
Valve sizing often is described by the nominal size of the end connections, but a more important measure is the flow that the valve can provide. And determining flow through a valve can be simple.
Swagelok Tube Fittings Over 1 inch or 25 mm
Procedure for installing Swagelok tube fittings in sizes over 1 inch or 25 mm.
Технические характеристики
SS-4CP2-25 — Stainless Steel 1-Piece Poppet Check Valve, Fixed Pressure, 1/4 in. MNPT, 25 psig (1.8 bar)
| Атрибут | Значение |
|---|---|
| Материал корпуса | 316 Stainless Steel |
| Процедура очистки | Standard Cleaning and Packaging (SC-10) |
| Размер соединения 1 | 1/4 in. |
| Тип соединения 1 | Male NPT |
| Размер соединения 2 | 1/4 in. |
| Тип соединения 2 | Male NPT |
| Давление открытия | 25 psi (1.8 bar, 0.18 MPa) |
| Максимальный коэффициент расхода (Cv) | 0.35 |
| Материал уплотнительного кольца | Fluorocarbon FKM |
| Номинальные параметры давления при комнатной температуре | 3000 PSIG @ 100°F /206 BAR @ 37°C |
| Обработка поверхности | Standard |
| Испытания | No Optional Testing |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27300601 |
| eClass (6.1) | 27300601 |
| eClass (10.1) | 27300601 |
| UNSPSC (4.03) | 40141622 |
| UNSPSC (10.0) | 40141641 |
| UNSPSC (11.0501) | 40141641 |
| UNSPSC (13.0601) | 40141641 |
| UNSPSC (15.1) | 40141641 |
| UNSPSC (17.1001) | 40183101 |
Ресурсы
Чертежи
2D
Для этого изделия есть двухмерные модели. Загрузить файл САПР.
3D
Для этого изделия есть трехмерные модели. Загрузить файл САПР.
Рекламный чертеж
Для этого изделия есть рекламные чертежи. Загрузить файлы.
